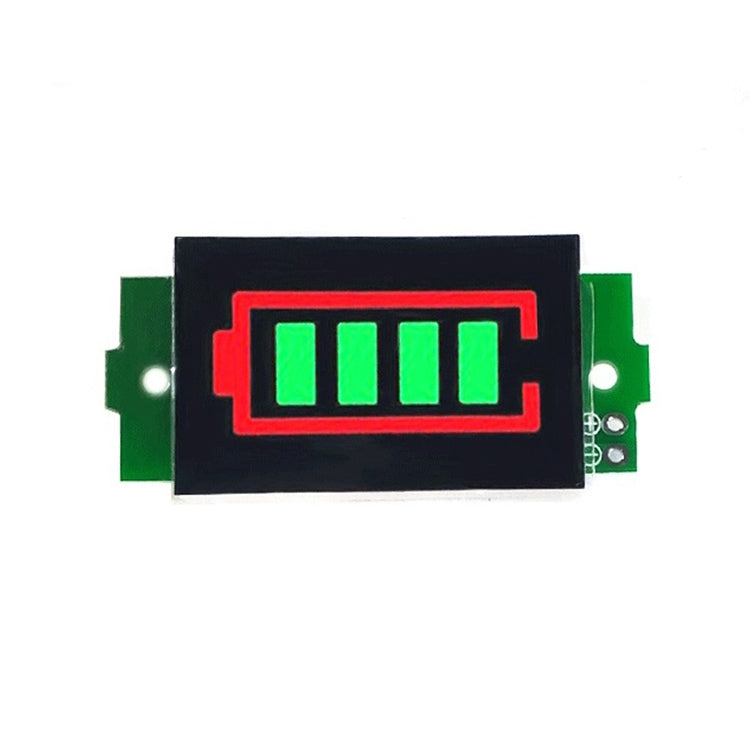

Lithium Battery Fuel Gauge Display Module(Green)

The Lithium Battery Fuel Gauge Display Module is a battery and resistance tester designed for lithium batteries. It is suitable for outdoor use, providing a four-level battery display to indicate the battery's charge status.

• Product Type: Battery & Resistance Tester
• Compatibility: Lithium batteries
• Color: Green
• Key Feature: Four-level battery display
• Working Current: 5mA
• Working Voltage: 3-34V
• Waterproof: Yes, suitable for outdoor use
• Working Temperature: -20 to 50 degrees Celsius
• Battery Level Indicator: Red frame displayed when battery level is less than 25%
• Connection Pads: S1-S8 optional pads can only connect to one type; simultaneous short-circuiting of 2 or more is not allowed
• Battery Types Supported: Lithium battery, lead acid, nickel metal hydride
• Usage Instructions: Connect the positive and negative terminals of the display board to the battery under test for real-time power display
