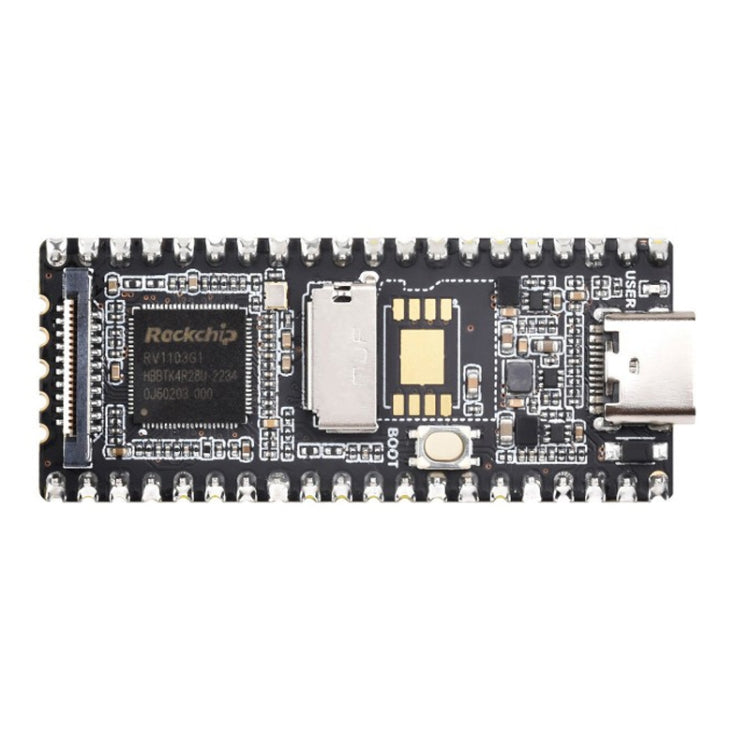

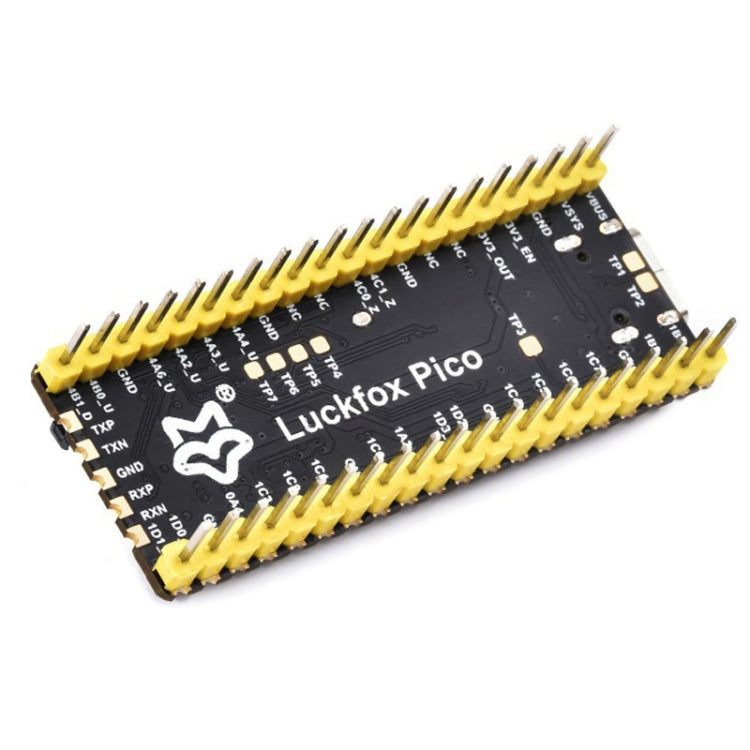

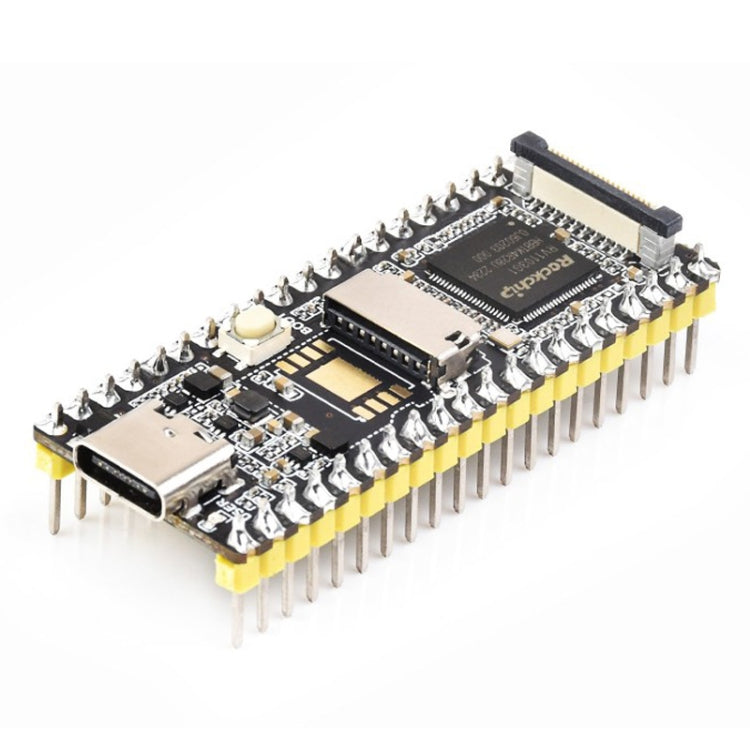

Waveshare LuckFox Pico RV1103 Linux Micro Development Board with Header
Waveshare LuckFox Pico RV1103 Linux Micro Development Board with Header
Sale
Sold out
Pre-order
Regular price
R 309.00
Regular price
Sale price
R 309.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The Waveshare LuckFox Pico RV1103 is a Linux micro development board designed for embedded applications. It is suitable for projects requiring image processing and AI model integration.
- Processor: Cortex A7 @ 1.2GHz with RISC-V
- NPU: 0.5 TOPS, supports int4, int8, int16 mixed quantization
- ISP: Input 4M @ 30fps (maximum)
- Memory: 64MB DDR2
- USB: USB 2.0 host/device
- Camera: MIPI CSI 2-lane

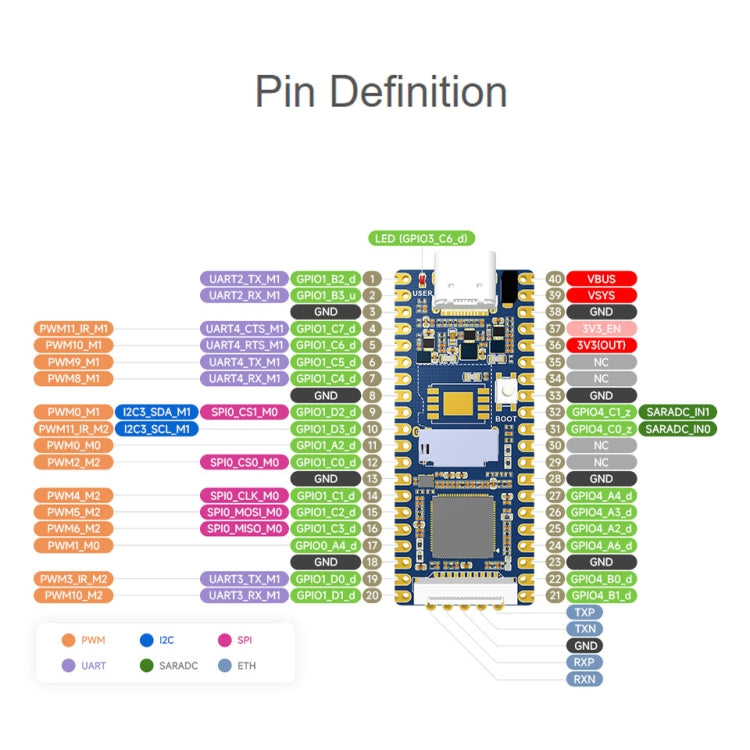

- GPIO: 24 GPIO pins
- Ethernet: 10/100M Ethernet controller with embedded PHY
- Default storage: TF card (not included)
- Product dimensions: 51 x 21 mm
- Weight: 4g (without header), 6g (with header)
- Power consumption: Low power with fast startup
- Image processing features: HDR, WDR, multi-level noise reduction
- Encoding performance: Intelligent encoding mode with adaptive throttling
- Fast image capture: 250ms with simultaneous AI model loading
Questions about features, compatibility, or warranty? Chat with our local support team!
