TEC1-12703 Thermoelectric Cooler Peltier Element Module
TEC1-12703 Thermoelectric Cooler Peltier Element Module
hurry! almost sold out...
تعذر تحميل مدى توفر الطلب
ًالشحن مجانا
ًالشحن مجانا
الشحن مجانا على جميع أوامر . مؤمنة بالكامل.
وقت المناولة 1 - 3 أيام عمل. (يتعين على شركة PMC معالجة طلبك وإخضاع جميع العناصر الخاصة بك لاختبارات مراقبة الجودة الصارمة.)
وقت العبور 7 - 15 يوم عمل.
احصل عليه الآن، وادفع لاحقًا
احصل عليه الآن، وادفع لاحقًا
الدفع باستخدام Mobicred. ما عليك سوى اختيار الدفع Peach >> Mobicred عند الدفع، وسنقوم بشحنه بمجرد الموافقة على الطلب.
ضمان العودة
ضمان العودة
لأي سبب من الأسباب، إذا لم تكن راضيًا عن طلبك خلال 7 أيام، فيمكنك إعادته إلينا في حالة جديدة واسترداد أموالك مطروحًا منها رسوم الشحن.
الدفع والأمن
الدفع والأمن
تتم معالجة معلومات الدفع الخاصة بك بشكل آمن. نحن لا نقوم بتخزين تفاصيل بطاقة الائتمان ولا يمكننا الوصول إلى معلومات بطاقتك الائتمانية.
ضمان العناصر المفقودة/الخاطئة
ضمان العناصر المفقودة/الخاطئة
إذا استلمت طردًا به عناصر تعبئة ثانوية مفقودة/غير صحيحة، فيرجى الاتصال بنا في غضون 7 أيام من التسليم وتقديم الدليل ذي الصلة. ستقوم شركة PMC بدفع تعويضات بناءً على حالة الضرر.
1. Number of component pairs: 127
2. Assembly pressure: 85N/cm2
3. Be sure to apply thermal grease when installing the radiator
4. The literal is cold side, and the non-literal is hot side
5. Packaging process: standard 704 silicone rubber seal around
6. Packaging standard: foam box packaging, storage conditions ambient temperature -10 ~ 40 degrees Celsius
7. Working environment: temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the cooling efficiency)

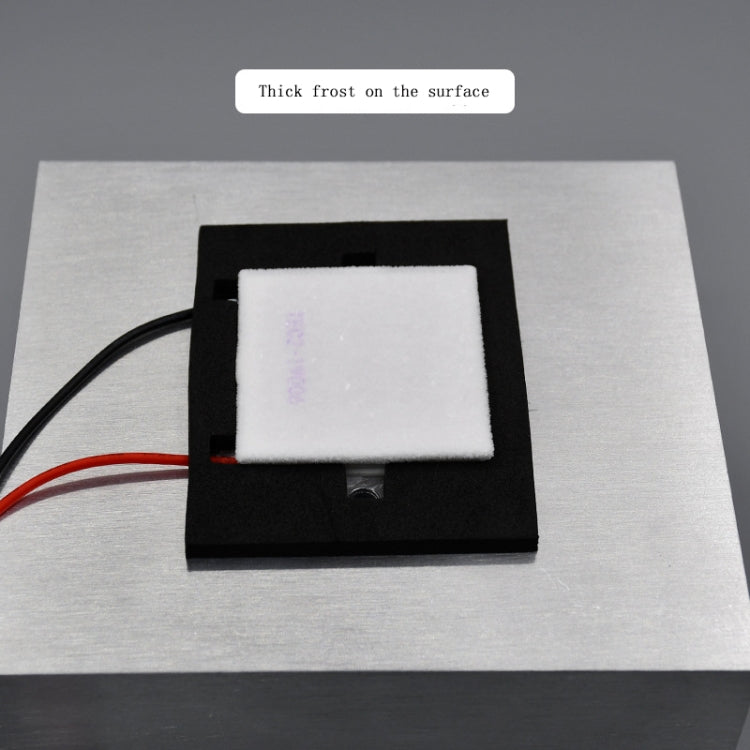

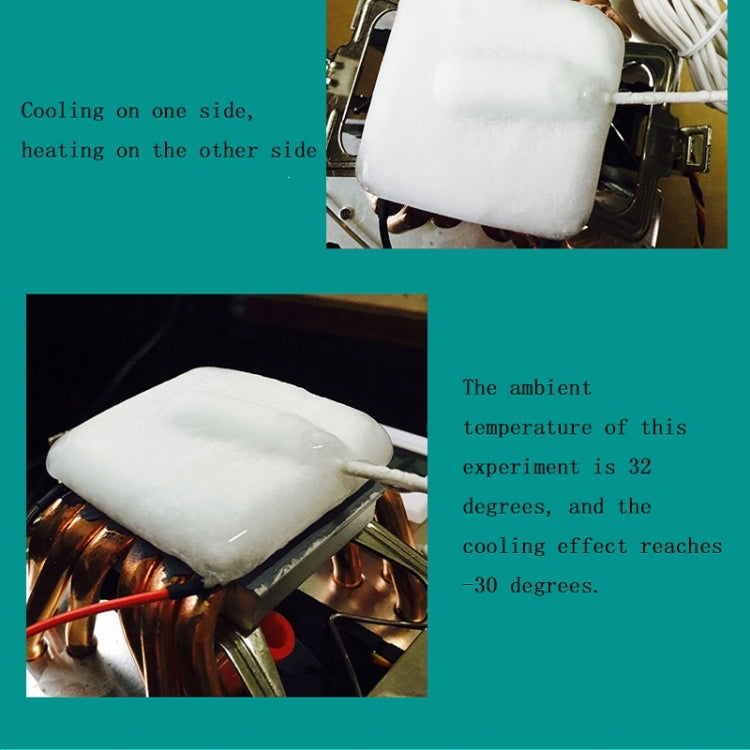

8. The working state of the cooling plate is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during work. It is strictly forbidden to energize for more than 2 seconds without heat dissipation, so as to avoid overheating and burning.

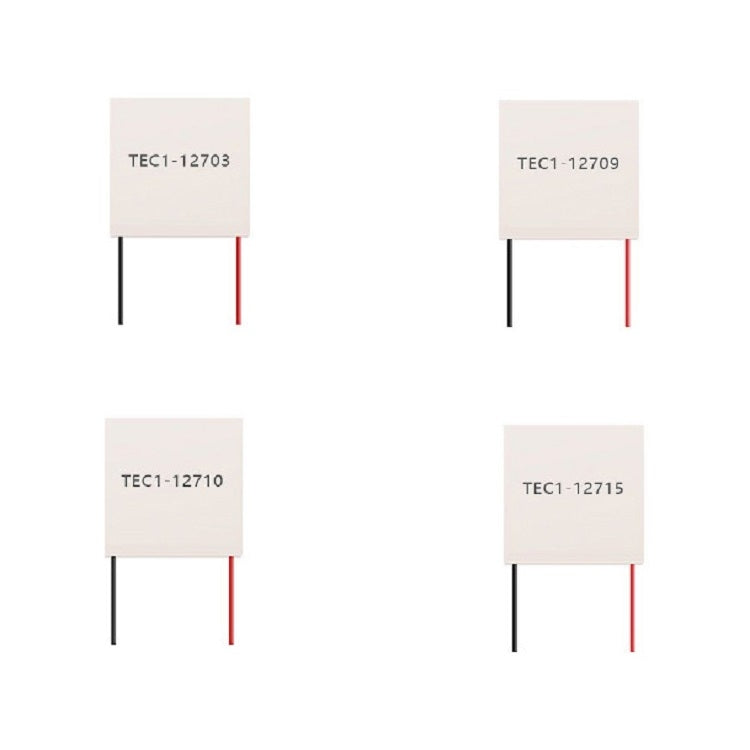

9. Dimensions: 12703: 40x40x4.0mm, 12709: 40x40x3.4mm, 12710: 40x40x3.4mm, 12715: 40x40x3 .3mm
10. Other parameters:

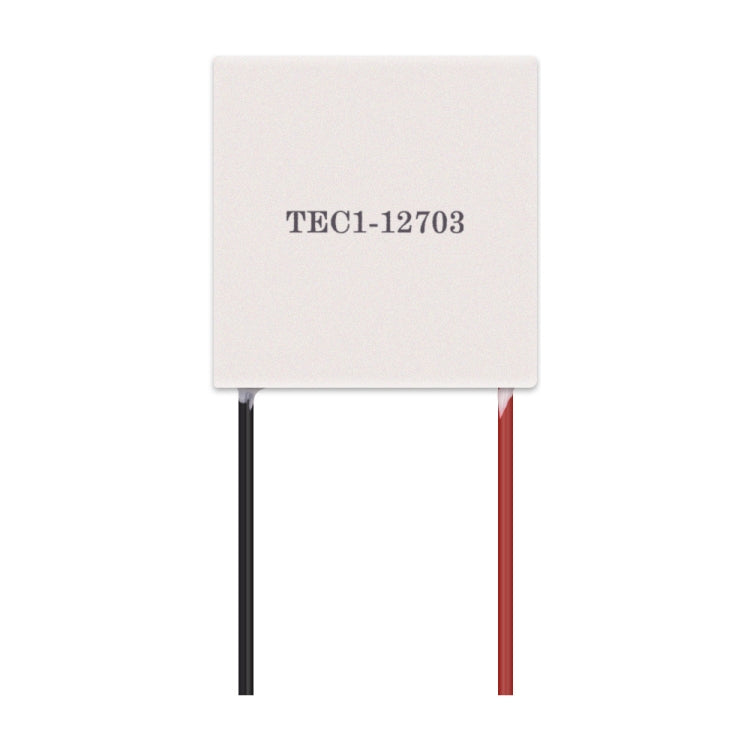

- 12703: Wire specification: lead length 310+/-5mm, RV standard wire, single head 5mm tin-plated, internal resistance: 4.0~4.3 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=12 ( When starting at rated voltage), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 27W

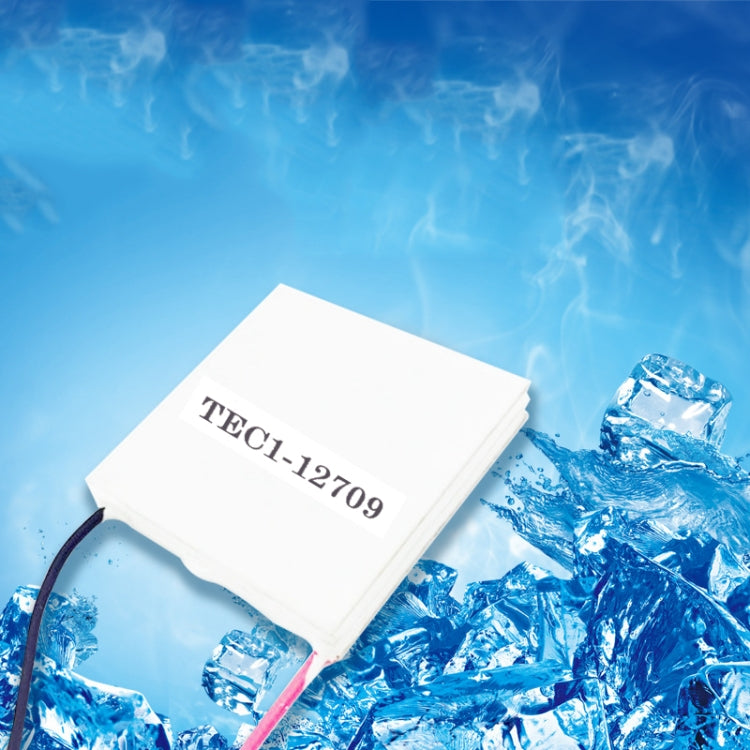

- 12709: Current: less than or equal to 9A, temperature difference: less than or equal to 68 degrees Celsius, voltage: less than or equal to 15.2V, hot end temperature: 82W

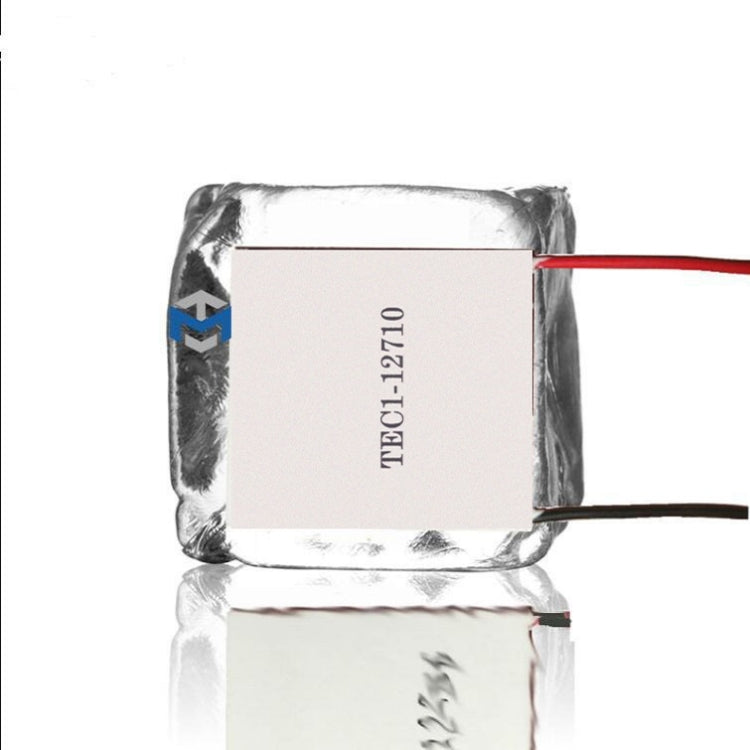

- 12710: Wire specification: lead length 300+/-5mm, RV standard wire, single head 5mm tin plated, internal resistance: 1.2~1.5 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=10A ( 15Vmax voltage start), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 92W
- 12715: Voltage: less than or equal to 15.4V, current: less than or equal to 15A, cold output: 134W
