Waveshare 10.3 inch 1872x1404 Flexible E-Ink Display HAT for Raspberry Pi
Waveshare 10.3 inch 1872x1404 Flexible E-Ink Display HAT for Raspberry Pi
Sale
Sold out
Pre-order
Regular price
R 5,109.00
Regular price
Sale price
R 5,109.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
⚠️ Import Notice: Import duties and taxes may apply. You'll be responsible for any customs charges.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: MCU Tools
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Flexible E-Ink
• Key feature: Bendable display
• Color/Variant: Black and white
• Intended use: Everyday use
• Category: Electronics Module

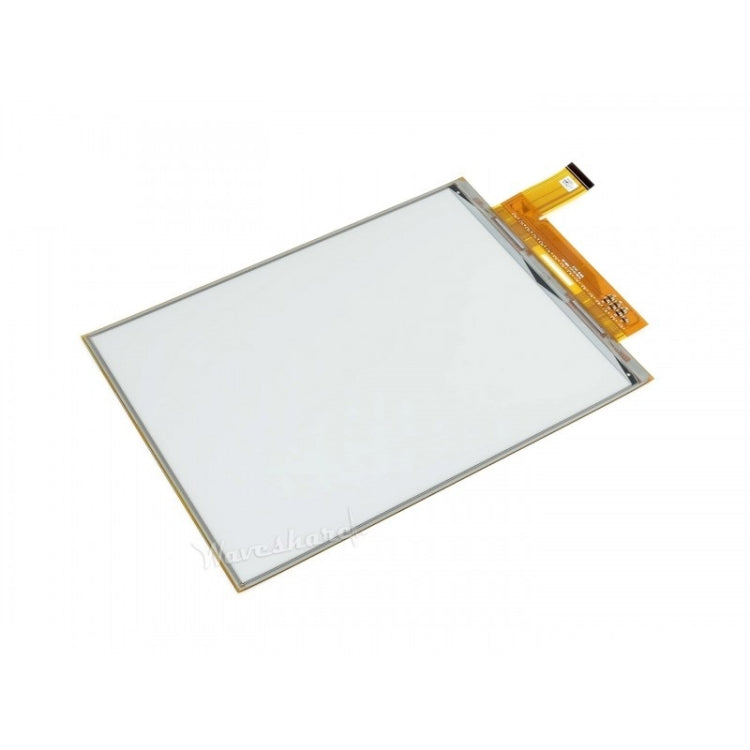

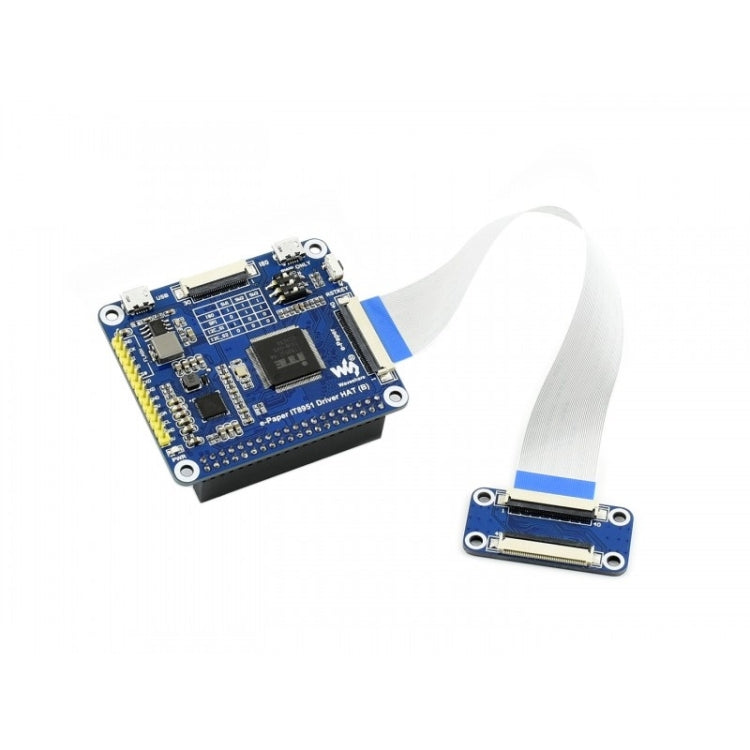

Overview1. This is a flexible E-Ink display HAT compatible with Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and its thinner and lighter.3. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.Features1. Flexible e-Paper, the display section is bendable (DONT bend the FPC section)2. No backlight, keeps displaying last content for a long time even when power down3. Low power consumption, basically power is only required for refreshing4.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards5. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.6. Comes with development resources and manual (examples for Raspberry Pi/STM32)Specifications1. Operating voltage: 5V2. Interface: USB/SPI/I80/I2C3. Outline dimension: 227.7mm x 165.8mm x 0.647mm4. Display size: 209.664mm x 157.248mm5. Dot pitch: 0.112mm x 0.112mm6. Resolution: 1872 x 14047. Display color: Black, white8. Gray scale: 2-16 (1-4 bit)9. Full refresh time: 450ms10. Total refresh power: 1.2W(typ.)11. Total standby power: 0.1W(typ.)12. Viewing angle: >170 degree13. Weight: 77gPacking List1. 10.3inch e-Paper (D) x12. e-Paper IT8951 Driver HAT (B) x13. 10.3inch e-Paper Adapter x14. 33PIN FFC (same side contact) x15. USB type A plug to micro B plug cable x26. PH2.0 20cm 8Pin x17. RPi screws pack (2pcs) x1
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Flexible E-Ink
• Key feature: Bendable display
• Color/Variant: Black and white
• Intended use: Everyday use
• Category: Electronics Module
Overview1. This is a flexible E-Ink display HAT compatible with Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.2. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and its thinner and lighter.3. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.Features1. Flexible e-Paper, the display section is bendable (DONT bend the FPC section)2. No backlight, keeps displaying last content for a long time even when power down3. Low power consumption, basically power is only required for refreshing4.Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards5. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.6. Comes with development resources and manual (examples for Raspberry Pi/STM32)Specifications1. Operating voltage: 5V2. Interface: USB/SPI/I80/I2C3. Outline dimension: 227.7mm x 165.8mm x 0.647mm4. Display size: 209.664mm x 157.248mm5. Dot pitch: 0.112mm x 0.112mm6. Resolution: 1872 x 14047. Display color: Black, white8. Gray scale: 2-16 (1-4 bit)9. Full refresh time: 450ms10. Total refresh power: 1.2W(typ.)11. Total standby power: 0.1W(typ.)12. Viewing angle: >170 degree13. Weight: 77gPacking List1. 10.3inch e-Paper (D) x12. e-Paper IT8951 Driver HAT (B) x13. 10.3inch e-Paper Adapter x14. 33PIN FFC (same side contact) x15. USB type A plug to micro B plug cable x26. PH2.0 20cm 8Pin x17. RPi screws pack (2pcs) x1
