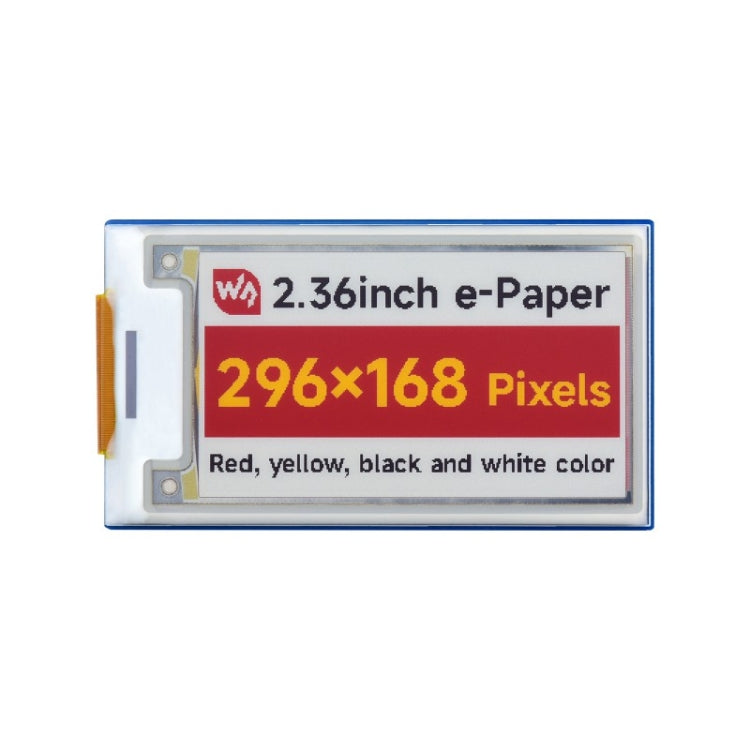

Waveshare 2.36 inch 296×168 E-paper Module
Waveshare 2.36 inch 296×168 E-paper Module
Sale
Sold out
Pre-order
Regular price
R 479.00
Regular price
Sale price
R 479.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Mini PC Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi, Jetson Nano, Arduino, STM32
• Material: Not specified
• Key feature: Ultra-low power consumption
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
1. Working voltage: 3.3V/5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Gray scale: 24
4. Full refresh time: 3215
5. Refresh power: about 57mW

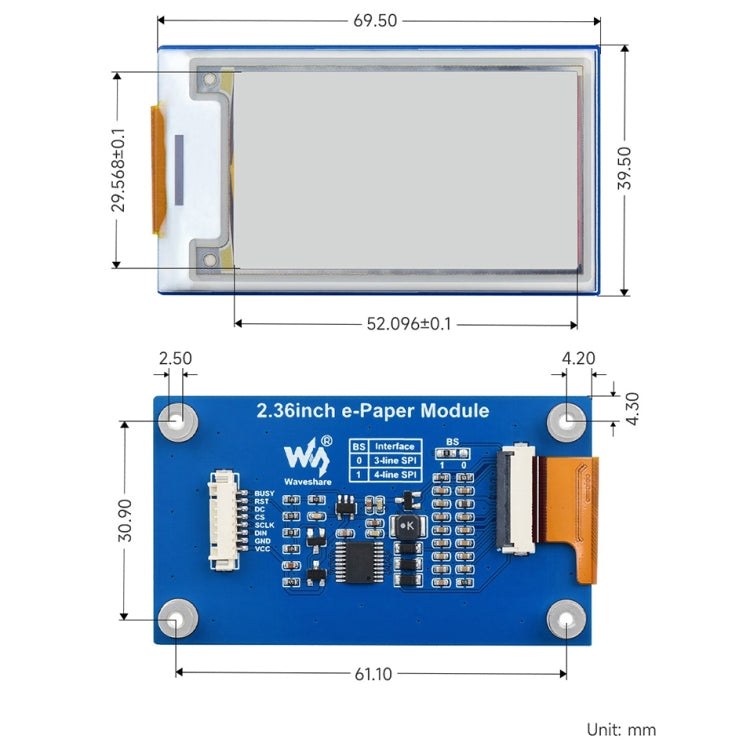

6. Dot pitch: 0.176 × 0.176mm
7. Standby current: about 0.01uA
8. Resolution: 296×168 pixels
9. Without backlight, the last content can be displayed for a long time even if the power is cut off.
10. Ultra-low power consumption, basically only need to refresh.

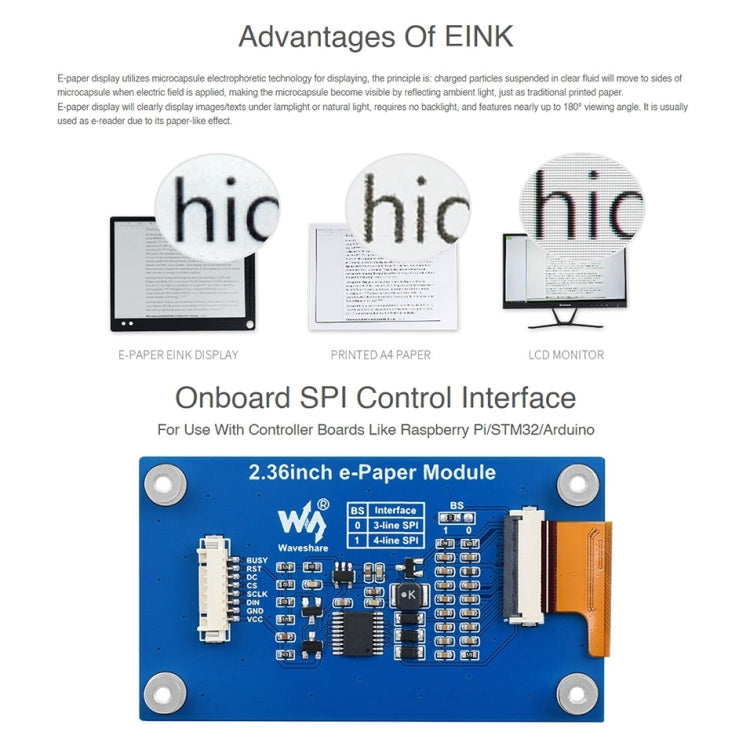

11. SPI interface for connecting Raspberry Pi / Jetson Nano / Arduino / STM32 and other controller boards.

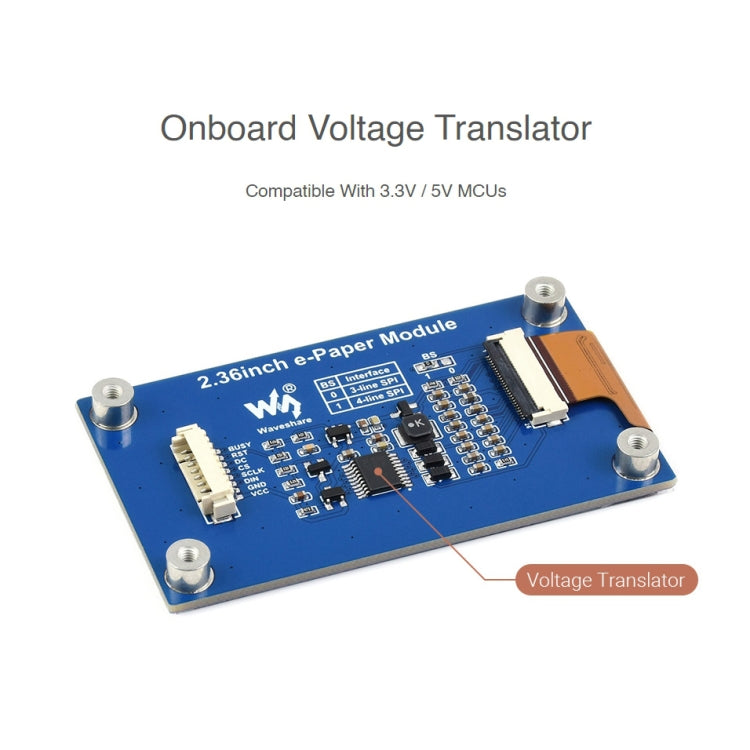

12. Onboard voltage converter, compatible with 3.3V/5V MC.
• Brand: WAVESHARE
• Compatibility: Raspberry Pi, Jetson Nano, Arduino, STM32
• Material: Not specified
• Key feature: Ultra-low power consumption
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
1. Working voltage: 3.3V/5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Gray scale: 24
4. Full refresh time: 3215
5. Refresh power: about 57mW
6. Dot pitch: 0.176 × 0.176mm
7. Standby current: about 0.01uA
8. Resolution: 296×168 pixels
9. Without backlight, the last content can be displayed for a long time even if the power is cut off.
10. Ultra-low power consumption, basically only need to refresh.
11. SPI interface for connecting Raspberry Pi / Jetson Nano / Arduino / STM32 and other controller boards.
12. Onboard voltage converter, compatible with 3.3V/5V MC.
