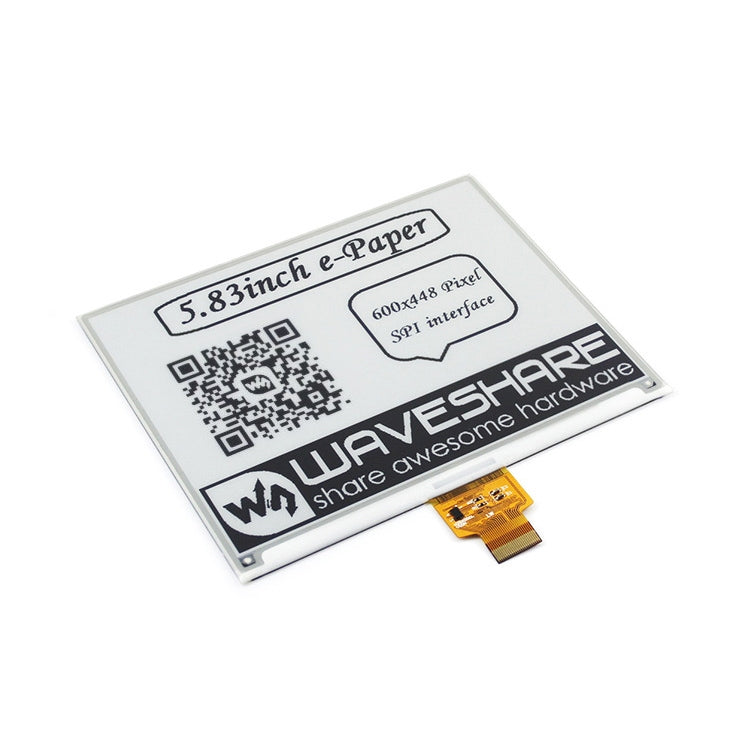

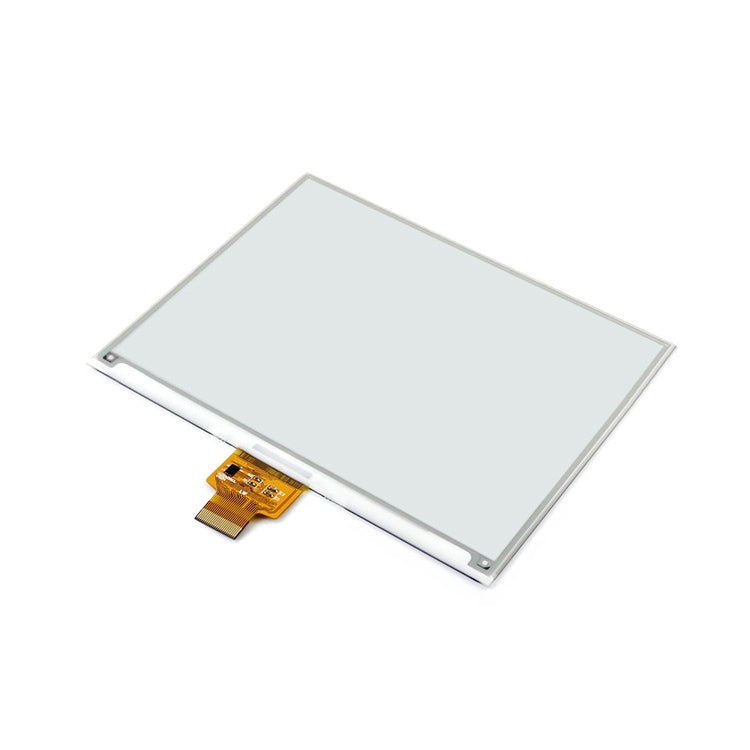

Waveshare 600x448, 5.83inch E-Ink raw display
Waveshare 600x448, 5.83inch E-Ink raw display
Sale
Sold out
Pre-order
Regular price
R 1,039.00
Regular price
Sale price
R 1,039.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Compatibility: 600x448, 5.83inch E-Ink raw display
• Material: Not specified
• Key feature: Ultra low power consumption
• Color/Variant: Black, White
• Intended use: Shelf label, industrial instrument
• Category: Consumer Electronics
600x448, 5.83inch E-Ink raw display, SPI interface, without PCBOverview1. This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface.2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.Features1. No backlight, keeps displaying last content for a long time even when power down2. Ultra low power consumption, basically power is only required for refreshing3. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)Specifications1. Operating voltage: 3.3V2. Interface: 3-wire SPI, 4-wire SPI3. Outline dimension: 125.40mm x 99.50mm x 1.18mm4. Display size: 118.80mm x 88.26mm5. Dot pitch: 0.198 x 0.1976. Resolution: 600 x 4487. Display color: black, white8. Grey level: 29. Full refresh time: 3.5s10. Refresh power: 26.4mW(typ.)11. Standby power: <0.017mW12. Viewing angle: >170 degree
• Compatibility: 600x448, 5.83inch E-Ink raw display
• Material: Not specified
• Key feature: Ultra low power consumption
• Color/Variant: Black, White
• Intended use: Shelf label, industrial instrument
• Category: Consumer Electronics
600x448, 5.83inch E-Ink raw display, SPI interface, without PCBOverview1. This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface.2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.Features1. No backlight, keeps displaying last content for a long time even when power down2. Ultra low power consumption, basically power is only required for refreshing3. Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)Specifications1. Operating voltage: 3.3V2. Interface: 3-wire SPI, 4-wire SPI3. Outline dimension: 125.40mm x 99.50mm x 1.18mm4. Display size: 118.80mm x 88.26mm5. Dot pitch: 0.198 x 0.1976. Resolution: 600 x 4487. Display color: black, white8. Grey level: 29. Full refresh time: 3.5s10. Refresh power: 26.4mW(typ.)11. Standby power: <0.017mW12. Viewing angle: >170 degree
