Waveshare L76X Multi-GNSS HAT for Raspberry Pi, GPS, BDS, QZSS
Waveshare L76X Multi-GNSS HAT for Raspberry Pi, GPS, BDS, QZSS
Sale
Sold out
Pre-order
Regular price
R 699.00
Regular price
Sale price
R 699.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Supports GPS, BDS, QZSS
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

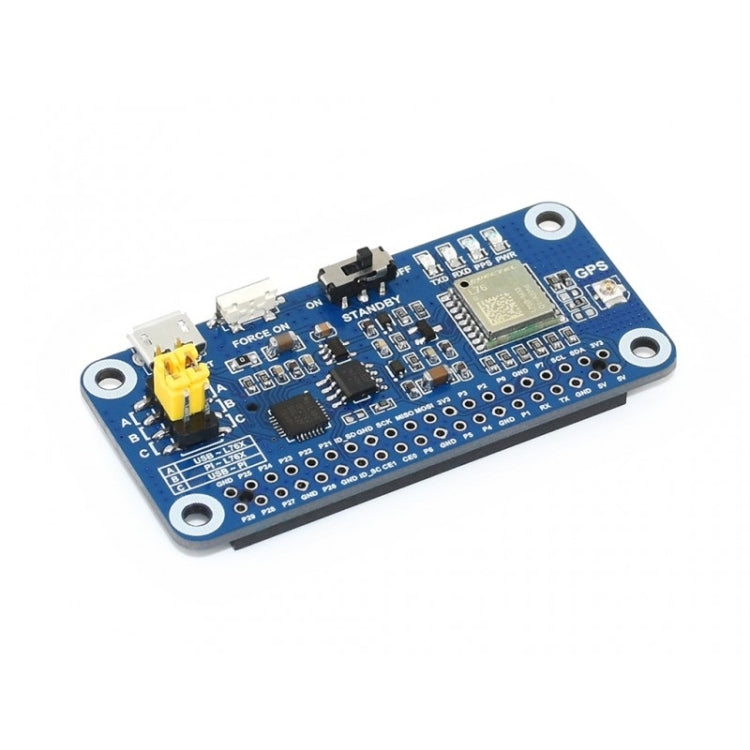

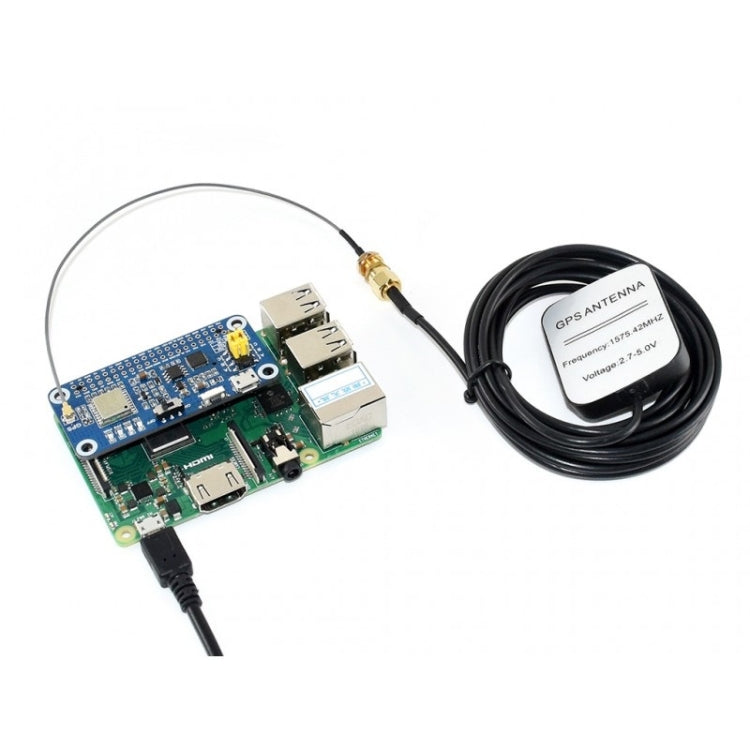

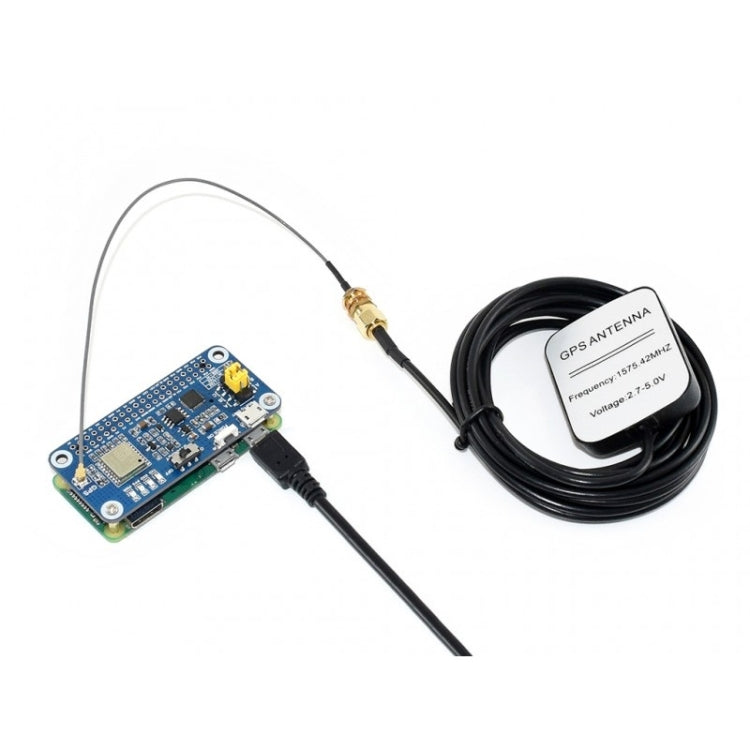

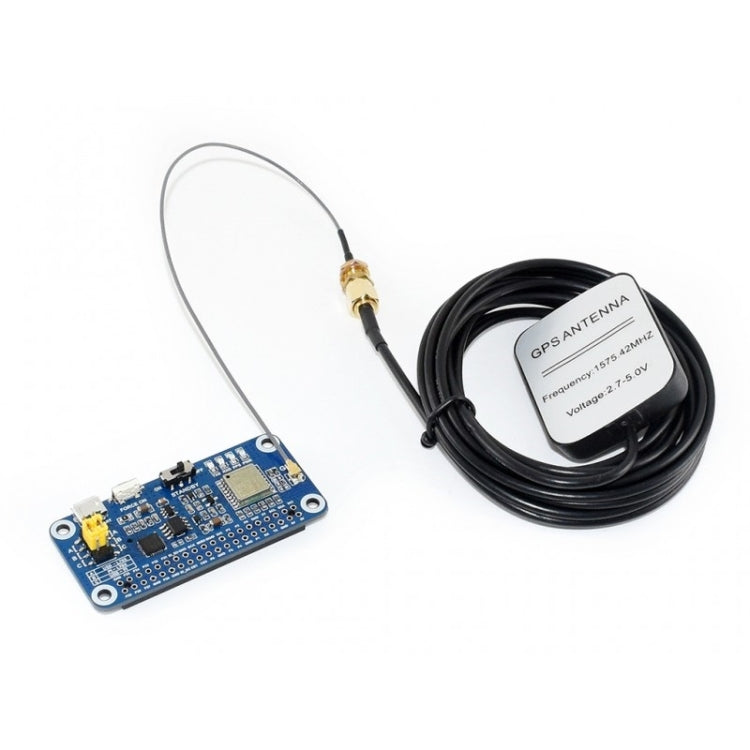

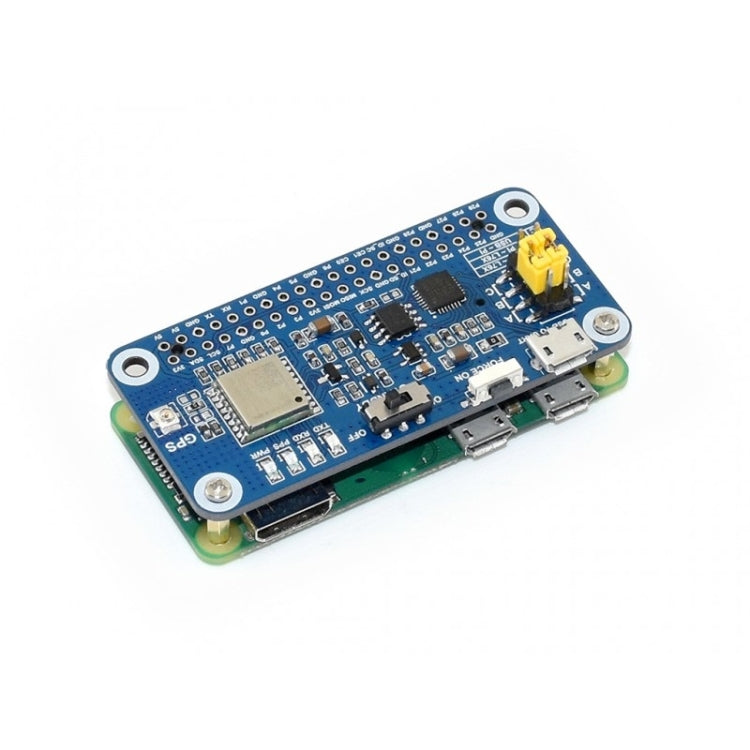

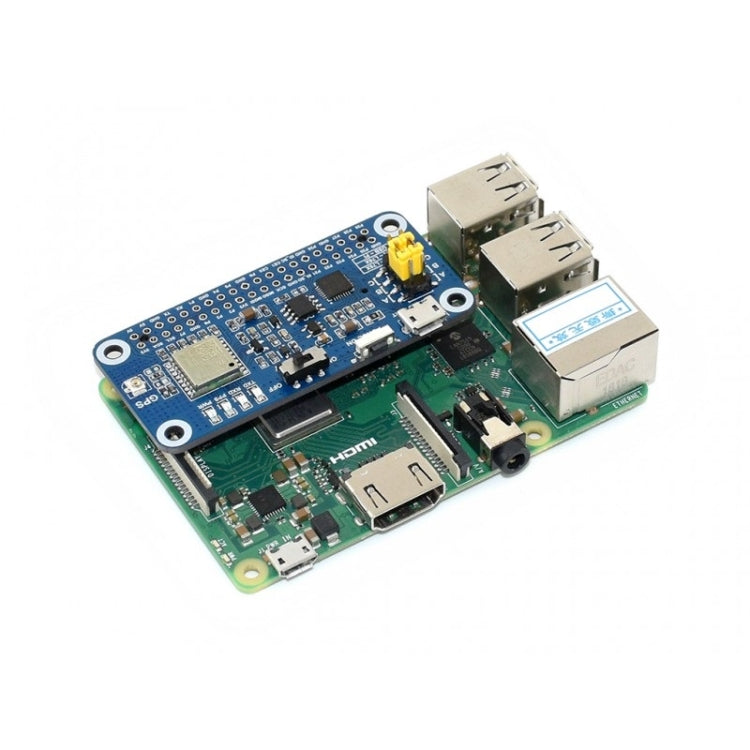

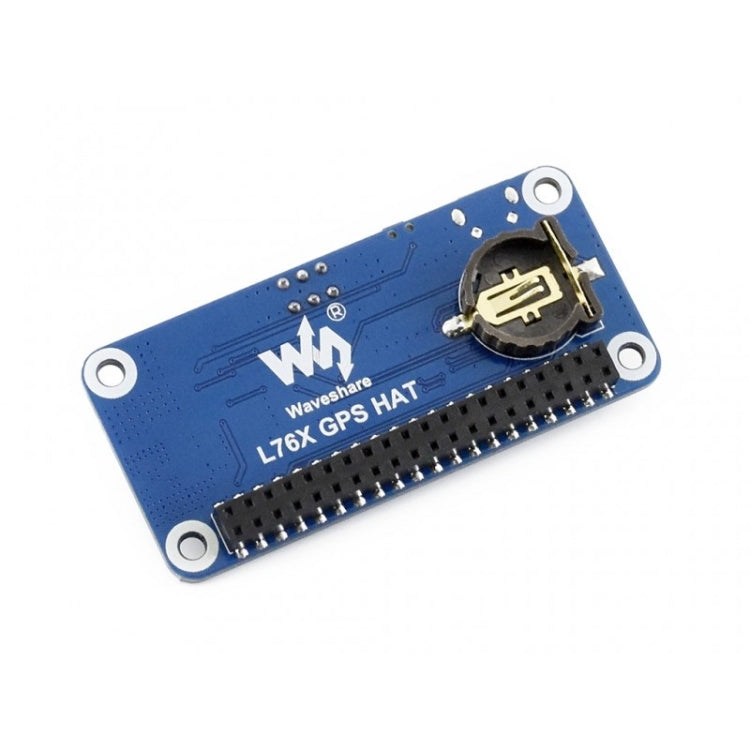

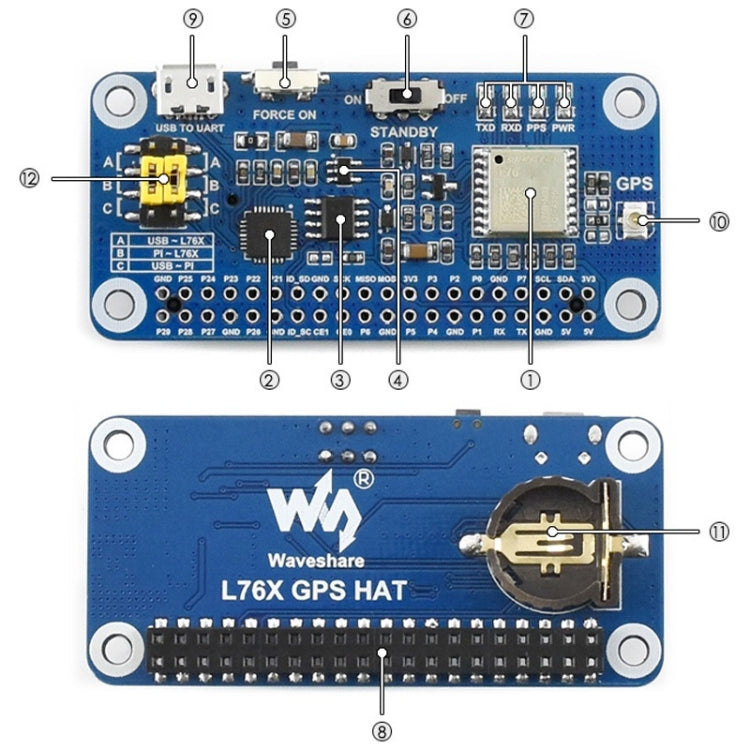

L76X Multi-GNSS HAT for Raspberry Pi, Supports GPS, BDS, QZSSOverview1. This is a Raspberry Pi GNSS HAT which supports Multi-GNSS systems: GPS, BDS, and QZSS, with advantages such as fast positioning, high accuracy, low power consumption, and so on.2. It is an easy way to enable global positioning function for your Raspberry Pi.Features1. Support Multi-GNSS systems: GPS, BDS, and QZSS2. EASY, self track prediction technology, help quick positioning2. AlwaysLocate, intelligent controller of periodic mode for power saving3. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)4. UART communication baudrate: 4800~115200bps (9600bps by default)5. Onboard battery holder, supports ML1220 rechargeable battery, for preserving ephemeris information and hot starts6. 4x LEDs for indicating the module working status7. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)GNSS Specifications1. Band: GPS L1(1575.42Mhz), BD2 B1 (1561.098MHz)- Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch- C/A code- SBA: WAAS, EGNOS, MSAS, GAGAN2. Horizontal position accuracy:- Autonomous: <2.5mCEP3. Time-To-First-Fix @-130dBm (EASY? enabled):- Cold starts: <15s- Warm starts: <5s- Hot starts: <1s4. Sensitivity:- Acquisition: -148dBm- Tracking: -163dBm- Re-acquisition: -160dBm5. Dynamic performance:- Altitude (max): 18000m- Velocity (max): 515m/s- Acceleration (max): 4GGeneral Specifications1. Communication interface: UART2. Baudrate: 4800~115200bps (9600bps by default)3. Update rate: 1Hz (default), 10Hz (max)4. Protocols: NMEA 0183, PMTK5. Power supply voltage: 5V / 3.3V6. Operating current: 13mA7. Operating temperature: -40 degree C ~ 85 degree C8. Dimensions: 65mm x 30.5mmApplications1. Vehicle tracking2. Asset tracking3. Security system4. Industrial PDA5. GIS applicationWhat is on Board1. L76B module2. CP2102: USB TO UART converter3. CAT24C32: EEPROM4. RT9193-33: Power manager5. Backup mode wakeup button6. Standby switch7. Indicators:- RXD/TXD: UART RX/TX indicator- PPS: GPS status indicator- PWR: Power indicator8. Raspberry Pi GPIO connector: For connecting with Raspberry Pi9. USB TO UART port10. GNSS antenna connector11. Battery holder: Support ML1220 rechargeable battery, for preserving ephemeris information and hot starts12. UART selection jumpers- A: control the L76B through USB TO UART- B: control the L76B through Raspberry Pi- C: access Raspberry Pi through USB TO UART13. Package Contents1. L76X GPS HAT x12. GPS External Antenna (B) x13. USB type A plug to micro plug cable x14. RPi screws pack (2pcs) x15. 2x20PIN pinheader x1
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Supports GPS, BDS, QZSS
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
L76X Multi-GNSS HAT for Raspberry Pi, Supports GPS, BDS, QZSSOverview1. This is a Raspberry Pi GNSS HAT which supports Multi-GNSS systems: GPS, BDS, and QZSS, with advantages such as fast positioning, high accuracy, low power consumption, and so on.2. It is an easy way to enable global positioning function for your Raspberry Pi.Features1. Support Multi-GNSS systems: GPS, BDS, and QZSS2. EASY, self track prediction technology, help quick positioning2. AlwaysLocate, intelligent controller of periodic mode for power saving3. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)4. UART communication baudrate: 4800~115200bps (9600bps by default)5. Onboard battery holder, supports ML1220 rechargeable battery, for preserving ephemeris information and hot starts6. 4x LEDs for indicating the module working status7. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)GNSS Specifications1. Band: GPS L1(1575.42Mhz), BD2 B1 (1561.098MHz)- Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch- C/A code- SBA: WAAS, EGNOS, MSAS, GAGAN2. Horizontal position accuracy:- Autonomous: <2.5mCEP3. Time-To-First-Fix @-130dBm (EASY? enabled):- Cold starts: <15s- Warm starts: <5s- Hot starts: <1s4. Sensitivity:- Acquisition: -148dBm- Tracking: -163dBm- Re-acquisition: -160dBm5. Dynamic performance:- Altitude (max): 18000m- Velocity (max): 515m/s- Acceleration (max): 4GGeneral Specifications1. Communication interface: UART2. Baudrate: 4800~115200bps (9600bps by default)3. Update rate: 1Hz (default), 10Hz (max)4. Protocols: NMEA 0183, PMTK5. Power supply voltage: 5V / 3.3V6. Operating current: 13mA7. Operating temperature: -40 degree C ~ 85 degree C8. Dimensions: 65mm x 30.5mmApplications1. Vehicle tracking2. Asset tracking3. Security system4. Industrial PDA5. GIS applicationWhat is on Board1. L76B module2. CP2102: USB TO UART converter3. CAT24C32: EEPROM4. RT9193-33: Power manager5. Backup mode wakeup button6. Standby switch7. Indicators:- RXD/TXD: UART RX/TX indicator- PPS: GPS status indicator- PWR: Power indicator8. Raspberry Pi GPIO connector: For connecting with Raspberry Pi9. USB TO UART port10. GNSS antenna connector11. Battery holder: Support ML1220 rechargeable battery, for preserving ephemeris information and hot starts12. UART selection jumpers- A: control the L76B through USB TO UART- B: control the L76B through Raspberry Pi- C: access Raspberry Pi through USB TO UART13. Package Contents1. L76X GPS HAT x12. GPS External Antenna (B) x13. USB type A plug to micro plug cable x14. RPi screws pack (2pcs) x15. 2x20PIN pinheader x1
