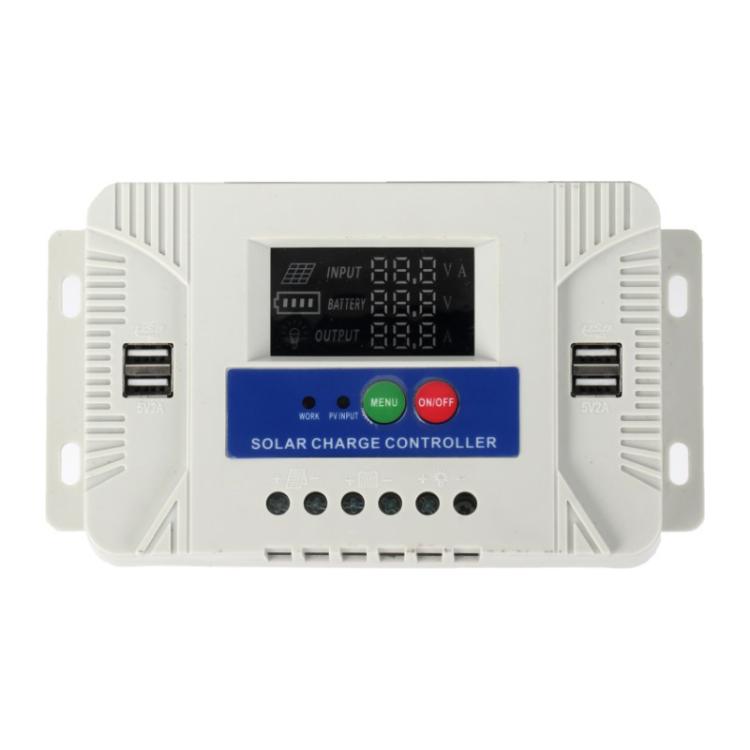

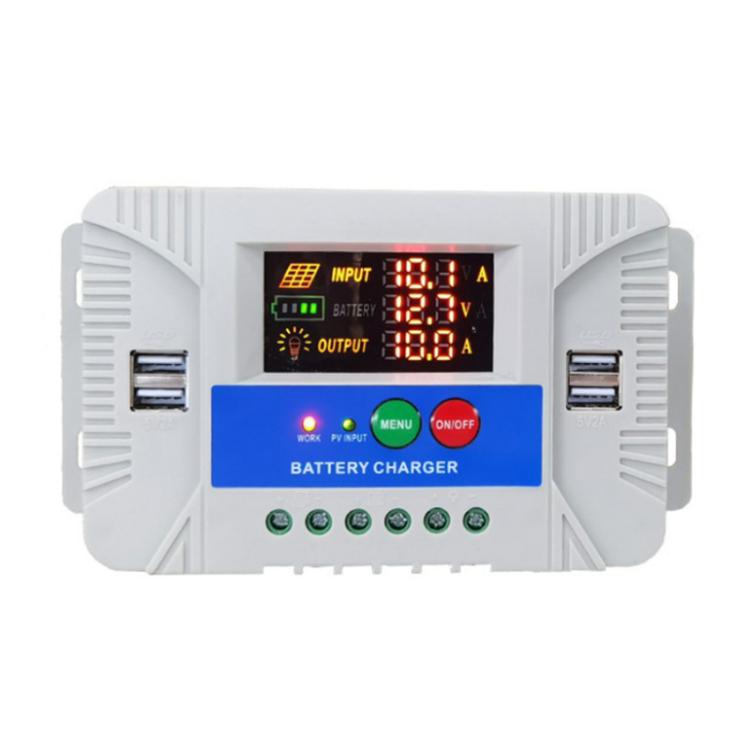

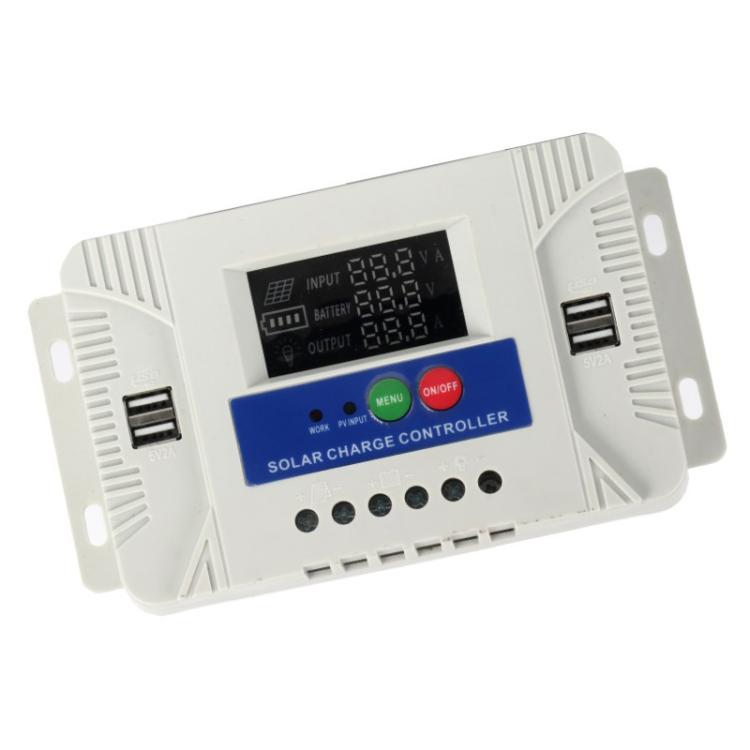

40A 12V 24V Setup-Free Color Screen Luminous Display Solar Controller PV Solar Charge Controller

The 40A 12V 24V Setup-Free Color Screen Luminous Display Solar Controller is designed for solar energy management in 12V and 24V systems. It is suitable for various types of lead-acid and lithium batteries, providing efficient charging and discharging control.

• Product Type: Solar Charge Controller
• Compatibility: 12V/24V systems
• Material: Industrial-grade components
• System Voltage: 12V/24V automatic adaptation
• USB Output: 2-channel USB output, 5V/2A (max)
• Standby Current: Less than 10mA
• Operating Temperature: -35 to 60 degrees Celsius
• Weight: Approximately 290g

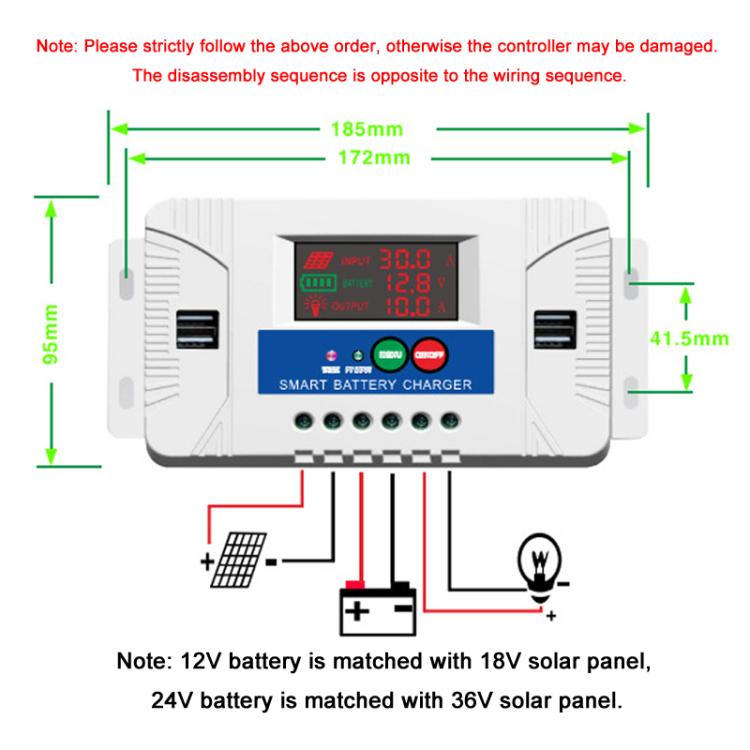

• Size: 18.5 x 9.5 x 4.1 cm
• Charging Management: Complete 3-stage charging management
• Protection Features: Built-in overcurrent, short circuit, open circuit, and reverse connection protection (self-recovery type)

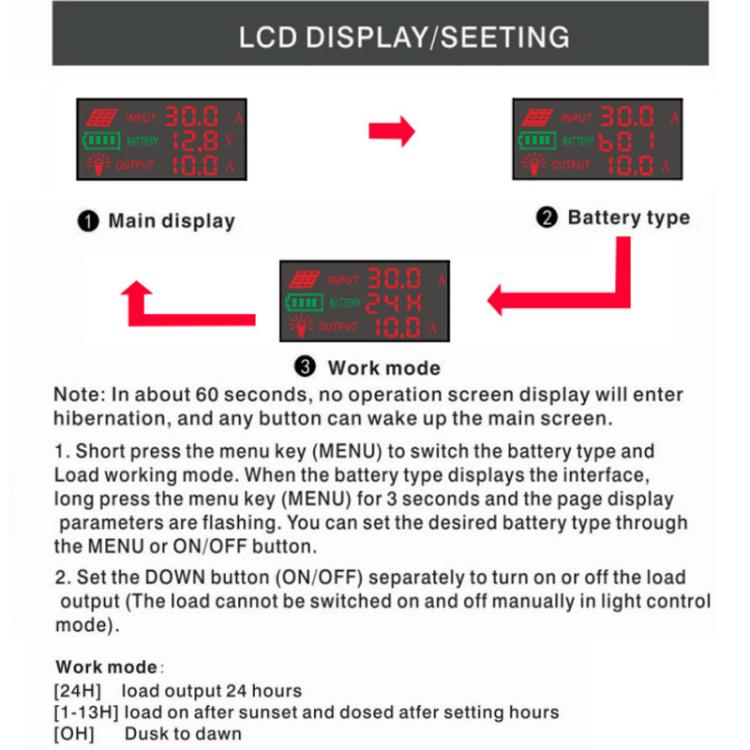

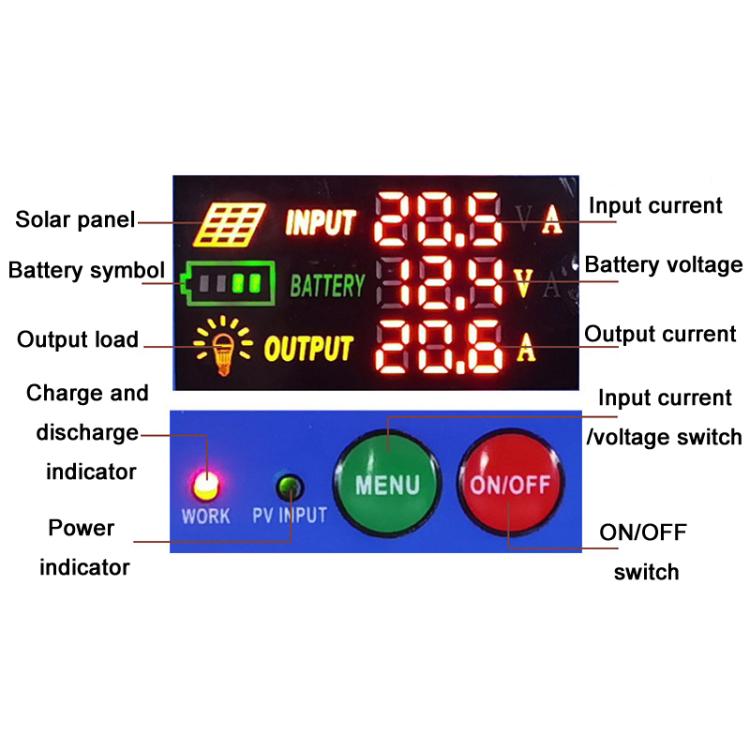

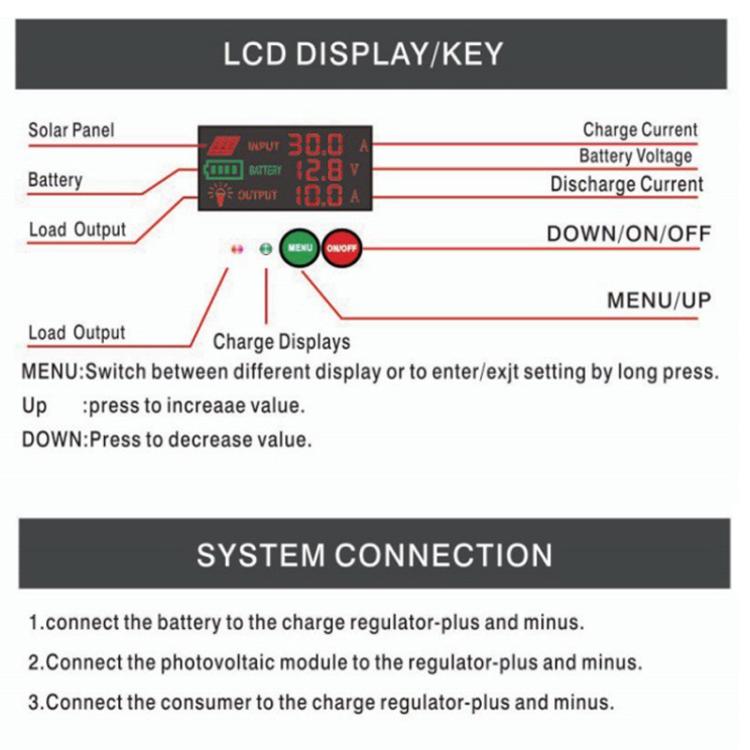

• Display: Large LCD color screen with adjustable charging and discharging parameters
• Power Failure Memory Function: Yes
• USB Charging Support: 4-way USB output, maximum current up to 2A, supports iPhone charging

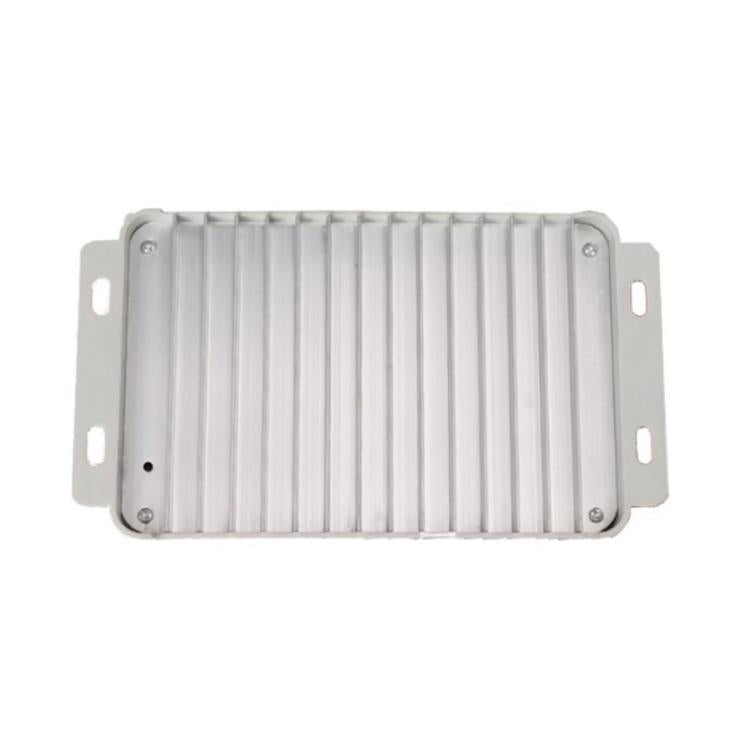

• Heat Generation: Dual MOS anti-backflow circuit, ultra-low heat generation
