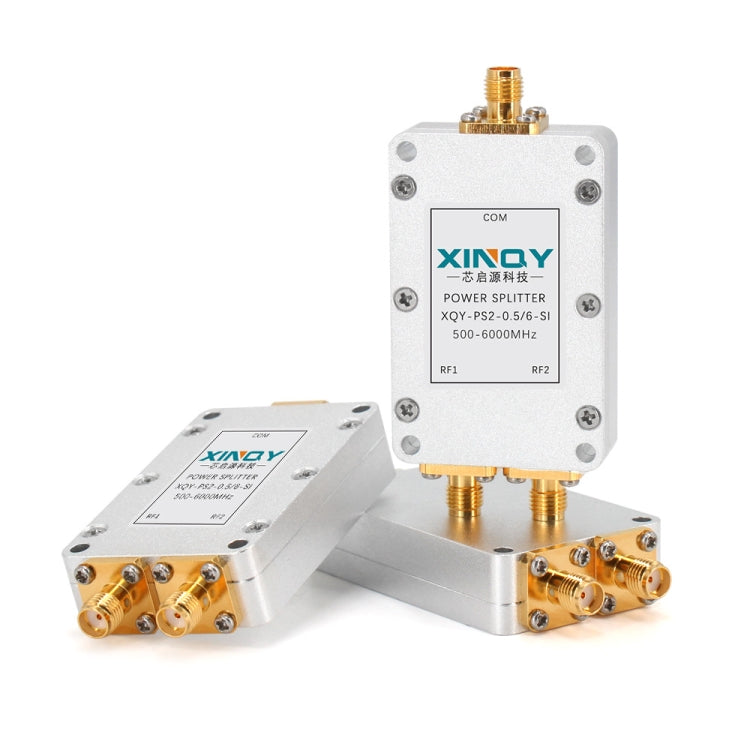

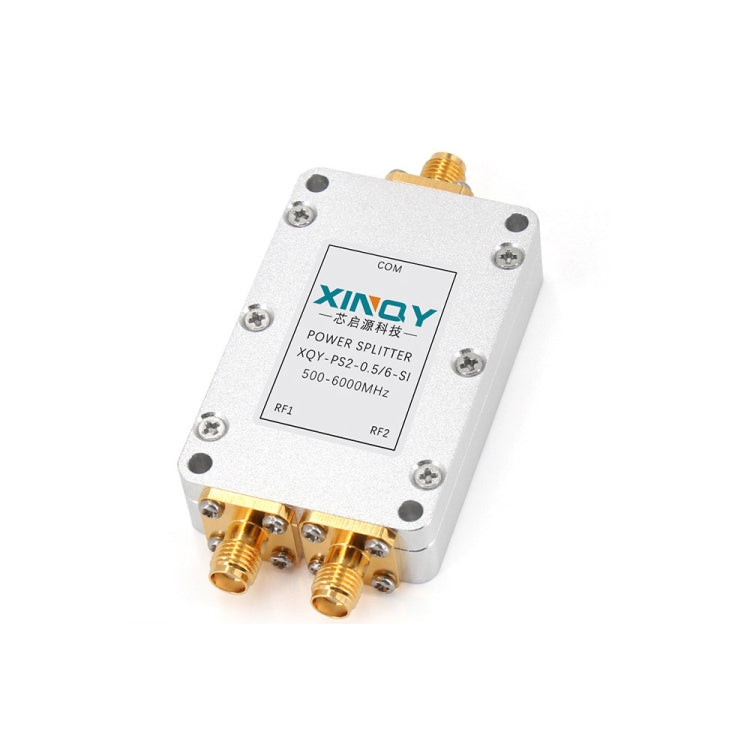

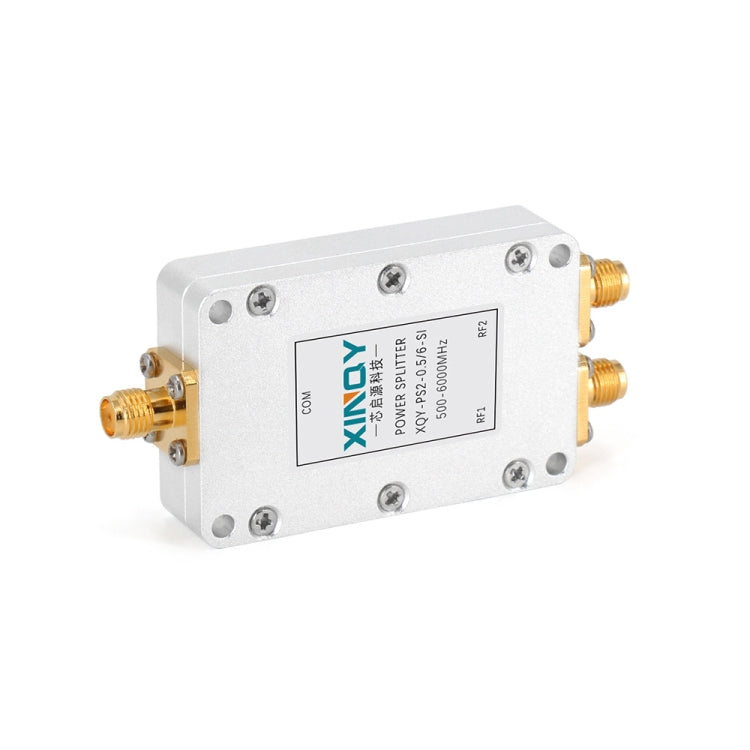

500~6000MHz SMA RF Microstrip Power Splitter
500~6000MHz SMA RF Microstrip Power Splitter
Sale
Sold out
Pre-order
Regular price
R 729.00
Regular price
Sale price
R 729.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
The 500~6000MHz SMA RF Microstrip Power Splitter is designed for signal distribution. It is suitable for applications requiring low insertion loss and high isolation.
- Product Type: Power Splitter
- Compatibility: 500~6000MHz
- Material: Gold-plated
- Impedance: 50 Ohms
- Phase Balance: ±3 degrees
- Surface Treatment: Sandblasting guide
- Port Connector: SMA-Female

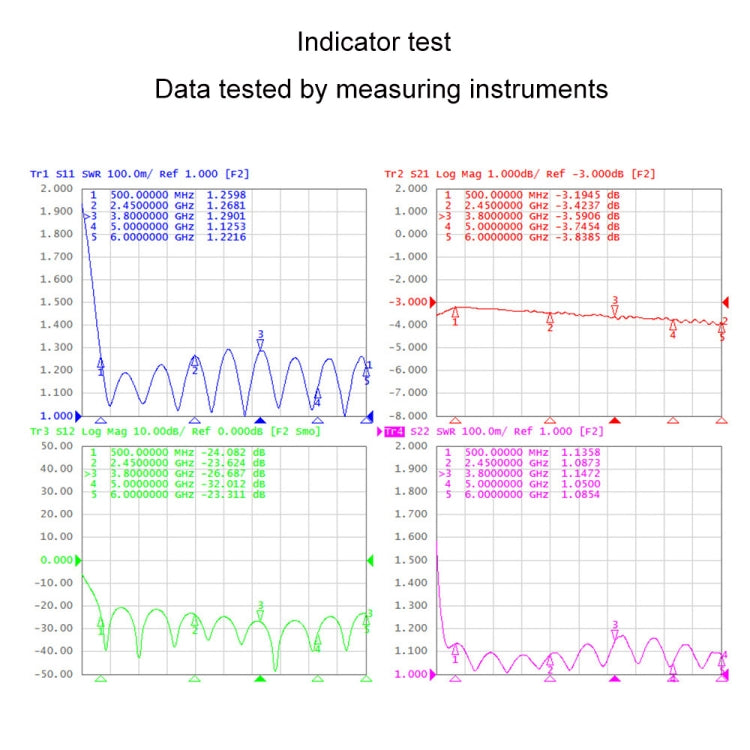

- Low Insertion Loss: ≤ 1.0dB (excluding theoretical loss of 3.0dB)
- Low Standing Wave: Typ. 1.25 / Max. 1.31 (Input), Typ. 1.12 / Max. 1.21 (Output)
- High Isolation: Typ. 23dB / Min. 20dB
- Working Temperature: -40~+75 degrees Celsius
- Frequency Range: 500~6000MHz
- Amplitude Balance: ≤ 0.3dB
- Withstand Power: 30W for splitter; 2W for combiner

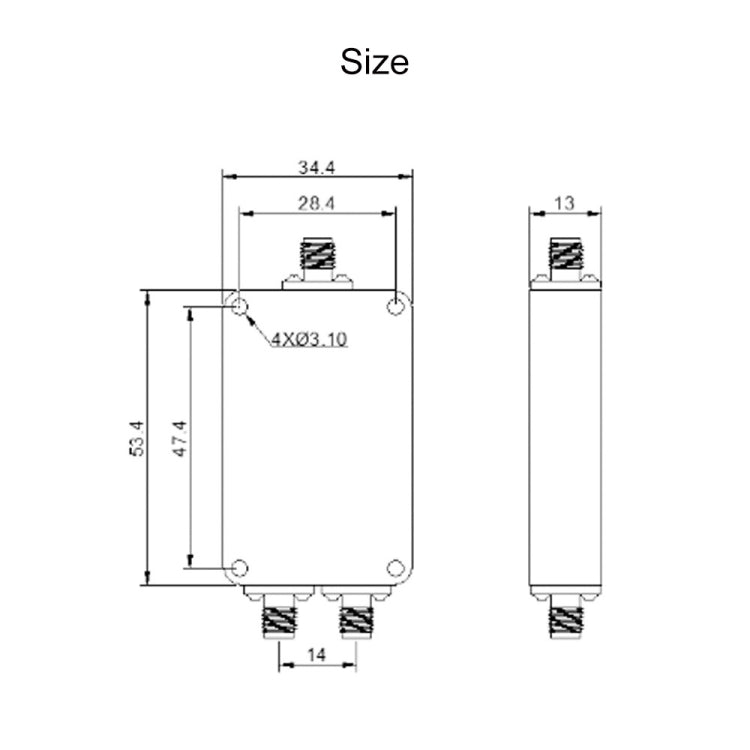

- Dimensions: 53.4x34.4x13mm
- Weight: 50g
