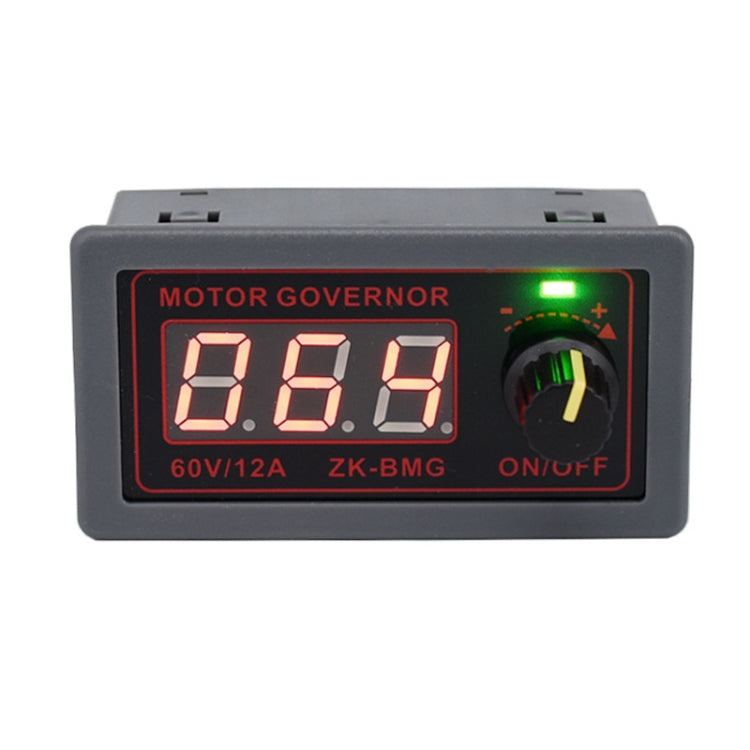

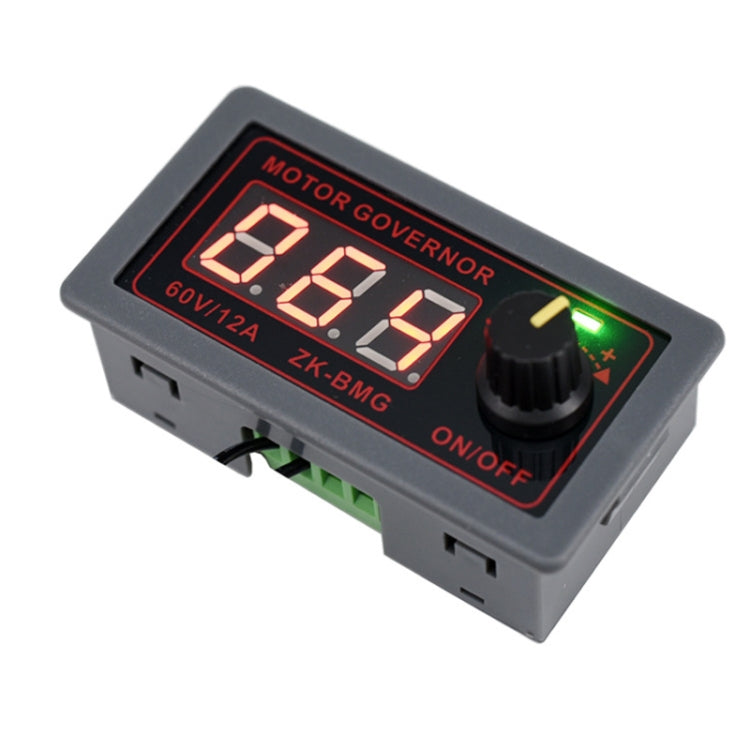

9-60V/12A/500W PWM Motor Fan DC Motor Speed Controller(With Shell)

9-60V/12A/500W PWM Motor Fan DC Motor Speed Controller(With Shell)

Regular price R 289.00
Regular price Sale price R 289.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


1. Using two original high voltage and low resistance MOS tubes, as well as the front stage driver, better performance and more stable, support high voltage and high power
2. Can set the duty cycle, duty cycle upper and lower limits and operating frequency, convenient for customers to operate according to their own motor operating characteristics
3. Digital encoder knob to adjust the motor speed, than ordinary potentiometer adjustment, higher precision, better consistency, will not produce drift
4. Motor soft start function, the current increases slowly when starting the motor, no impact current, effective protection of the motor, prolonging the life of the motor
5. With start-stop button, and can be controlled by external switches, to meet a variety of customer control needs (note that the external switch should be a self-resetting button or key, press to turn on, and then press to turn off; can not realize the output has been closed to turn on the output is not closed to turn off the output of the function)

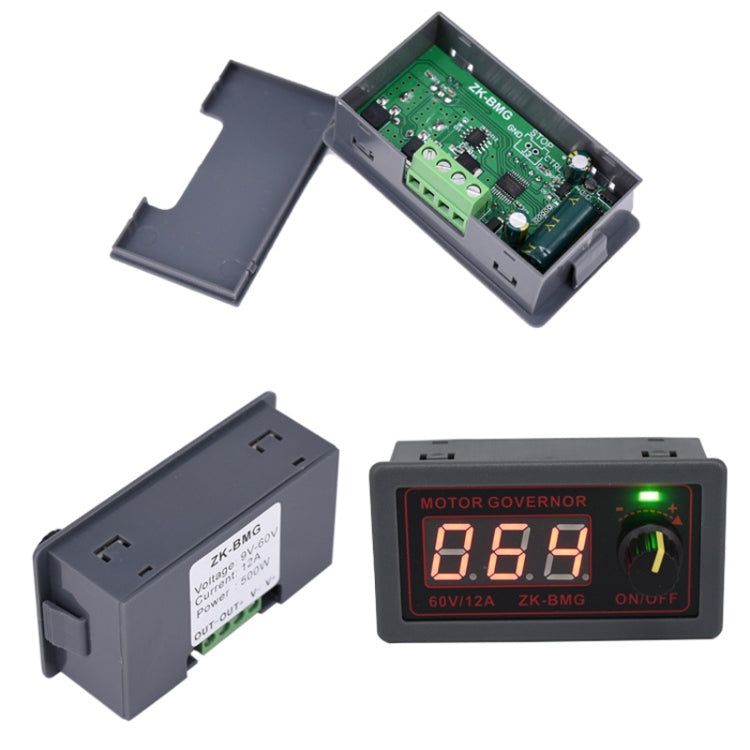

6. With standard 5135 meter housing, and have a back cover, convenient for customer installation

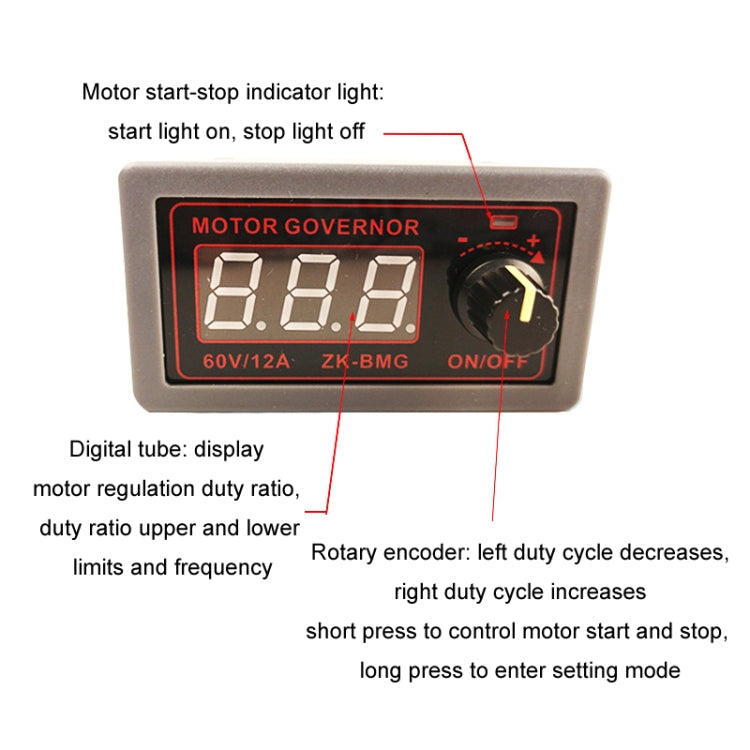

7. Motor start-stop indicator: start light on, stop light off
8. Digital tube: display motor regulation duty cycle, duty cycle upper and lower limits and frequency
9. Rotary encoder: left turn duty cycle decrease, right turn duty cycle increase, short press to control motor start/stop, long press to enter setting mode.

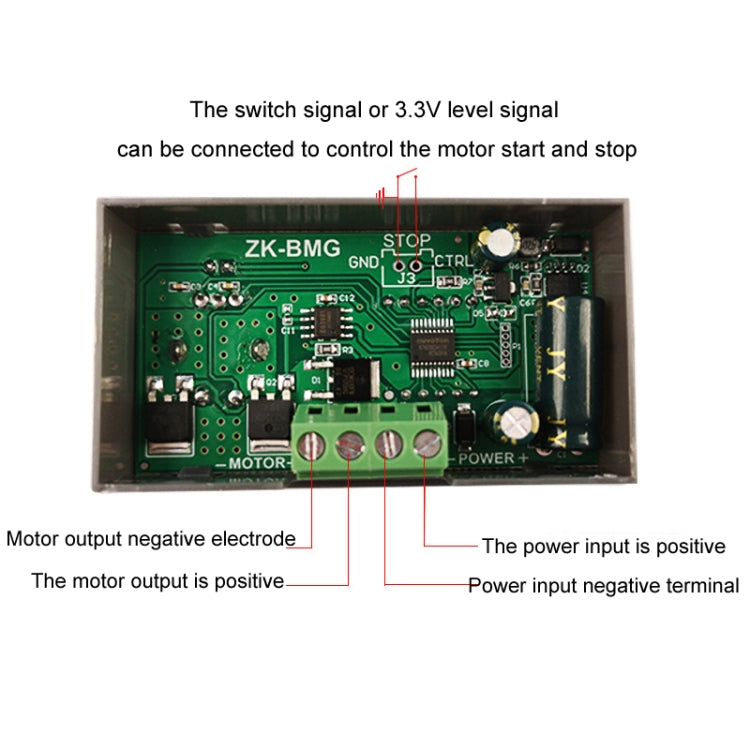

10. Can be connected to the switching signal or 3.3V level signal control motor start-stop
11. Operating voltage: DC9V ~ 60V, input anti-reverse connection protection
12. Rated current: 12A Maximum current 20A
13. Power: 500W
14. Operating frequency: 1KHz-99KHz adjustable, 1KHz step, the default frequency of 20KHz

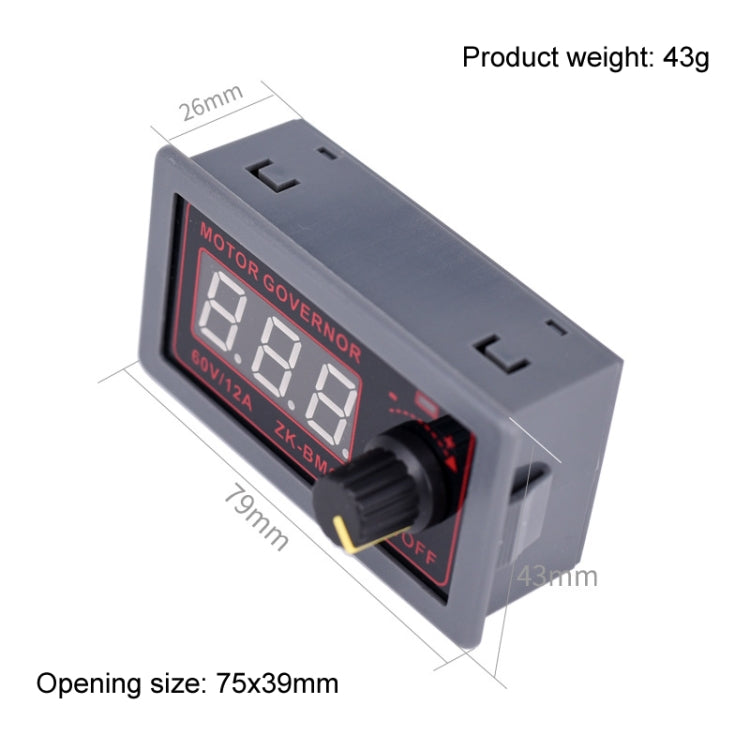

15. Product size: 79mmx43mmx26mm
16. Installation aperture size: 39.3mmx76.5mm
17. Product weight: 43g
