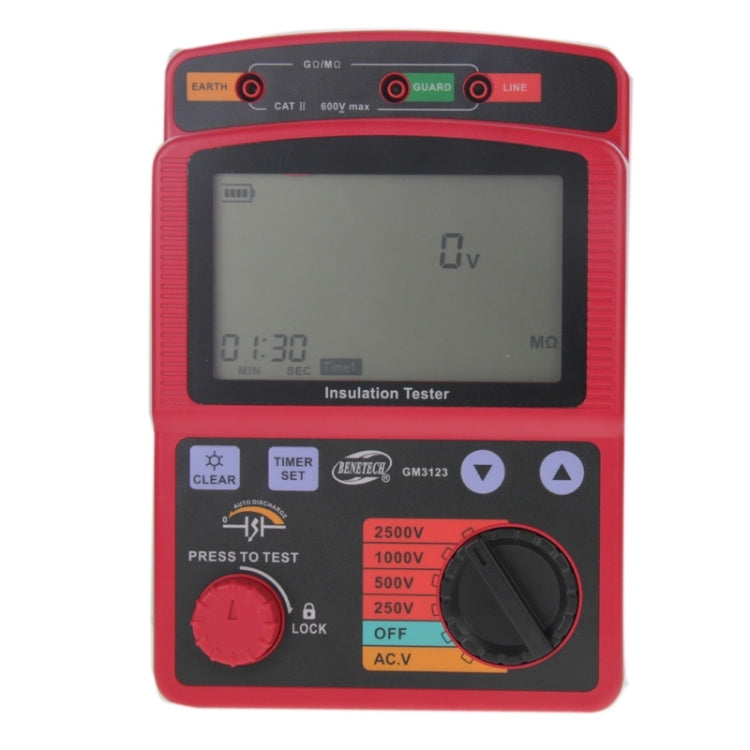

BENETECH GM3123 High Voltage Insulation Tester
BENETECH GM3123 High Voltage Insulation Tester
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
The BENETECH GM3123 High Voltage Insulation Tester is a current and voltage testing device designed for safe operation. It is suitable for use in environments with a temperature range of 0-40 degrees Celsius and humidity levels up to 85%.
- Product Type: Current & Voltage Tester
- Brand: BENETECH
- Compatibility: GM3123
- Material: Durable construction
- Color/Variant: Not specified
- Intended Use: Safe operation
- Key Feature: Auto discharge function
- Display: Max. 999 counts LCD display (1000 counts only at 1T is displayed), Bar graph / max. 36 points
- Over Range Indication: OL mark appears on insulation resistance range, LO mark appears on voltage range
- Auto-Ranging: Range shifts to upper range: 1000 counts, Range shifts to lower range: 95 counts (merely on the insulation resistance range)
- Sample Rate: 0.5-10 times / sec
- Operable Altitude: Less than 2000m (Indoor use)
- Operation Circumstance: Temperature 0-40 Celsius Degree, humidity: <=85%
- Storage Circumstance: Temperature -20-60 Celsius Degree, humidity: <=90%
- Overload Protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
- Voltage Resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
- Insulation Resistance: 1000M or more / DC 1000V (between electrical circuit and enclosure)
- Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
- Size: 153mm x 96mm x 220mm
- Weight: 1032g (without batteries and test wires)
