D52-2058 Wattmeter Din rail Volt Current Meter, Specification: AC80-300V Built-in CT

Name: D52-2058 Wattmeter Din rail Volt Current Meter, Specification: AC80-300V Built-in CT
Brand: PMC Jewellery
SKU: TBD0602281301
Price: 480.00 ZAR
Availability: InStock

R 480.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

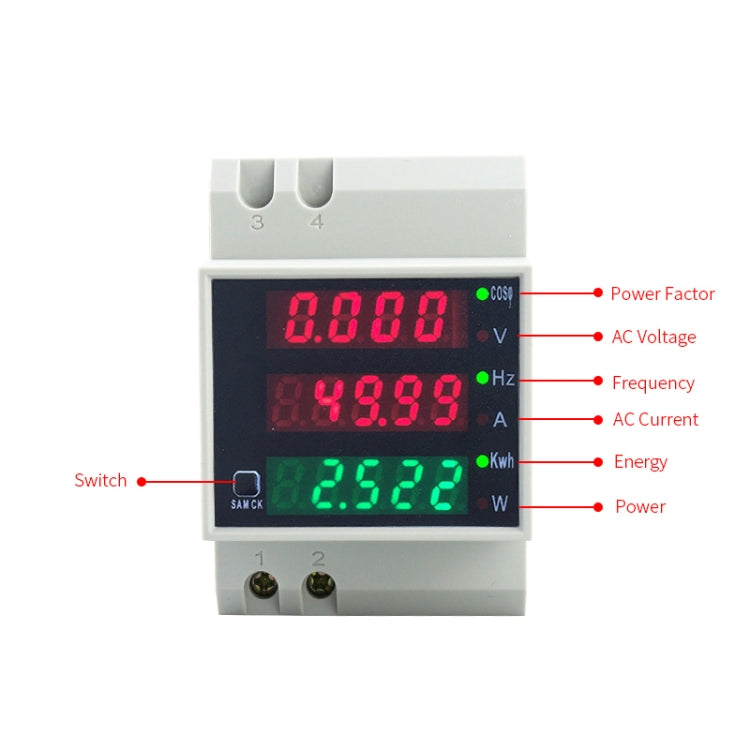

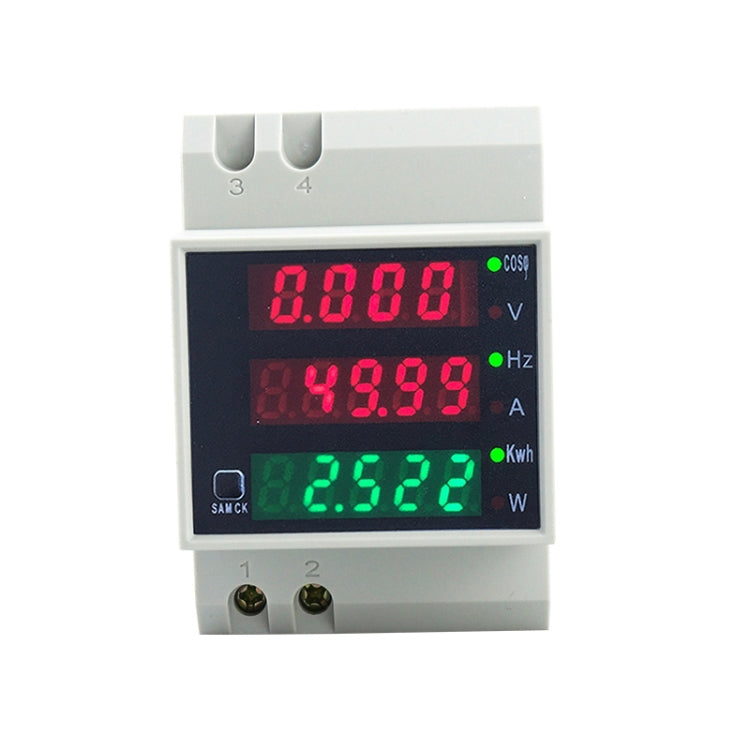

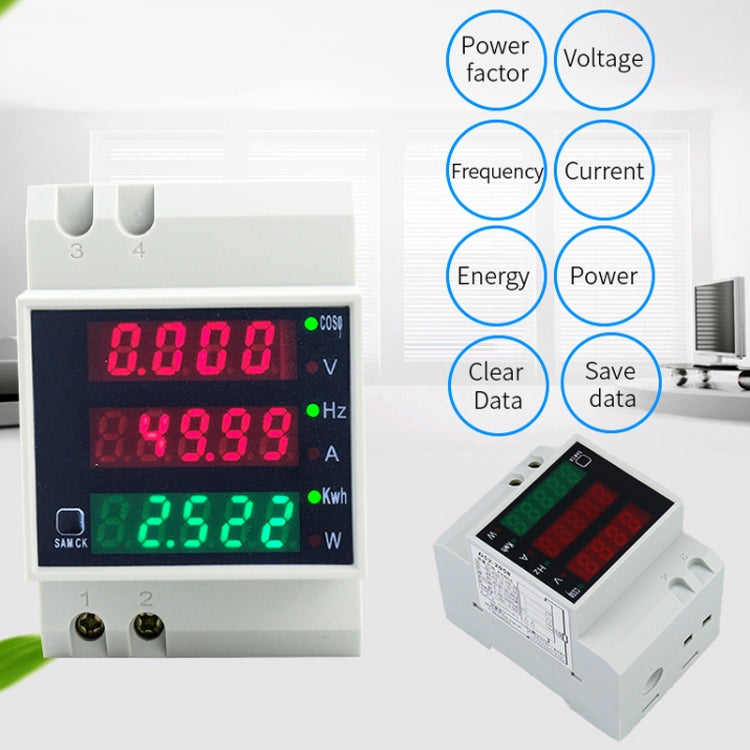

1. The D52-2058 rail-type digital display multi-function meter simultaneously displays the measured AC voltage, AC current, power factor, active power, frequency, and electrical energy (electricity) on the meter.
2. Please check AC80-300V for measuring 110V 220V voltage, and 200-450V for measuring 380V voltage
3. Measurement accuracy: 1% +/- 2 words
4. Display: 4-digit red 0.31-inch LED digital tube for voltage display, 5-digit red 0.31-inch LED digital tube for current and frequency display, 5-digit green 0.31-inch LED display for active power and electrical energy (electricity) Digital Tube
5. Measurement range: AC voltage: AC80. 0-300. 0V, AC200. 0-450. 0V, AC current: AC0-100. 0A, the current display resolution is 0. 01A when the measurement current is less than 100A, and the measurement current is greater than 0.01A At 100A, the current display resolution is 0.1A, and the range is automatically converted.
6. Active power: (measurement voltage AC80. 0-300. 0V) 0.0-30000W (AC200. 0-450. 0V: 45000W)
7. Electric energy: 0. 000-99999kwh, decimal point automatic conversion
8. Power frequency: 45. 00-65. 00HZ
9. Power factor: 1.000-0. 000
10. Measurement speed: about 2 times per second
11. Weight: 145g

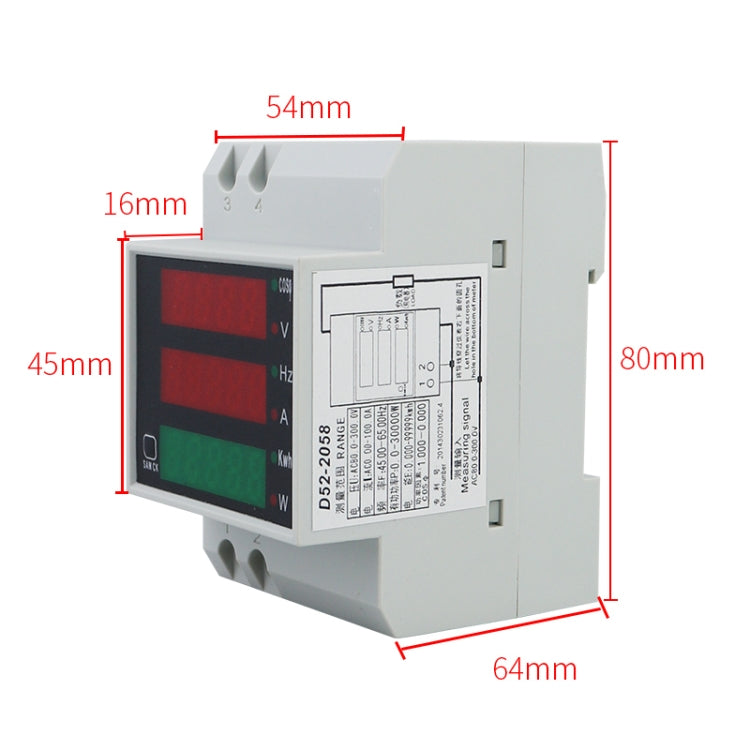

12. Installation width: the instrument occupies the 3P air switch position (DZ47/C45)
14. Installation method: track type
