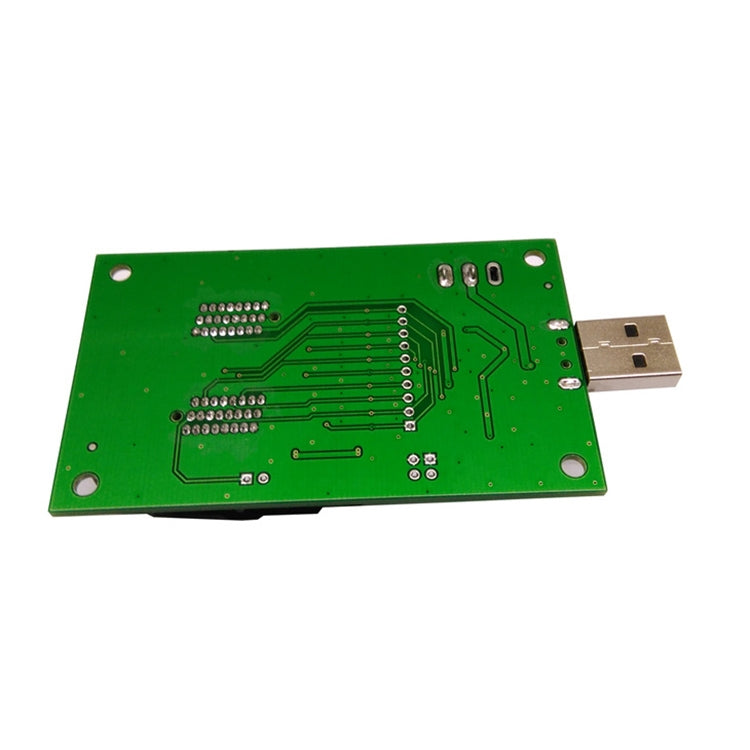

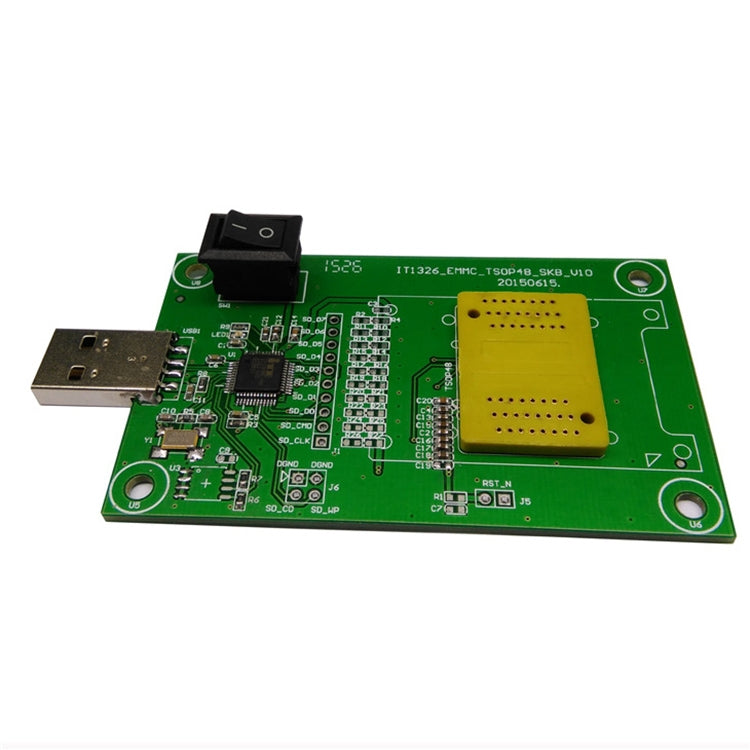

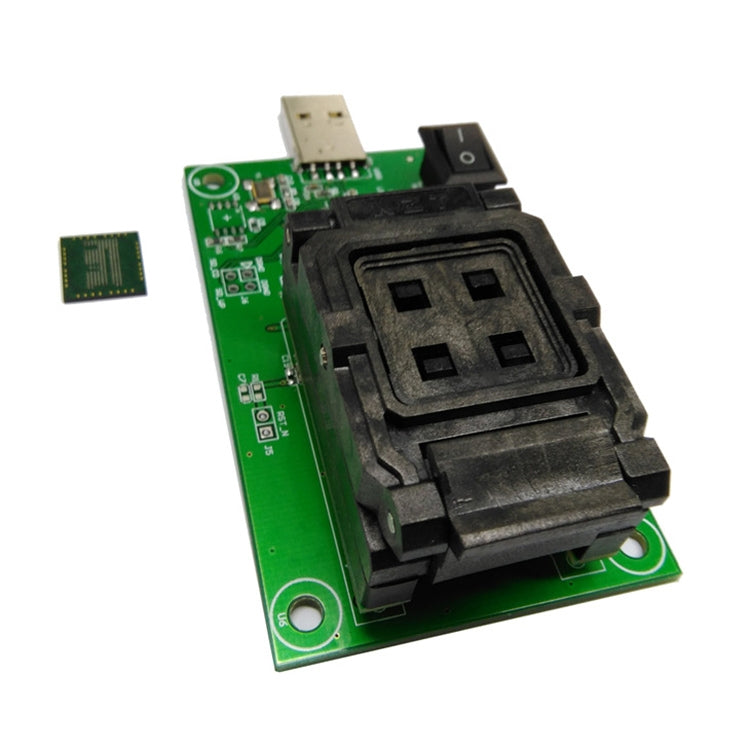

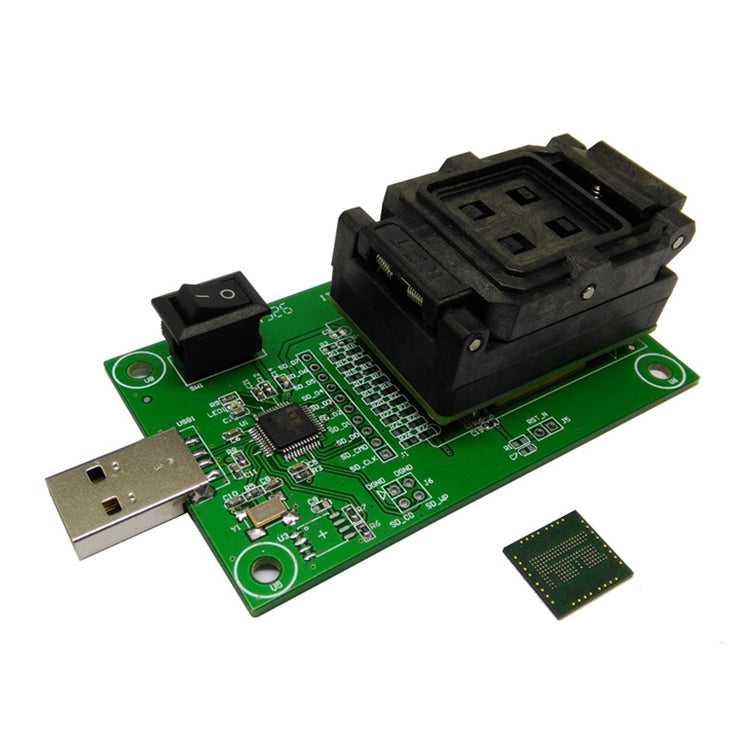

EMCP162/168 Flip Shrapnel To USB Test Socket EMCP Programming Socket Mobile Phone Font Read-Write Socket

Name: EMCP162/168 Flip Shrapnel To USB Test Socket EMCP Programming Socket Mobile Phone Font Read-Write Socket
Brand: PMC Jewellery
SKU: TBD05517577
Price: 2349.00 ZAR
Availability: InStock

R 2,349.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Type: test block
2. Working frequency: high frequency
3. Application: integrated circuit IC
4. Interface type: terminal
5. Production process: injection molding
6. Features: stable testing
7. Contact material: beryllium copper shrapnel
8. Insulator material: PET
9. Number of cores: 17
10. Purpose: programming socket, test socket, for testing, reading and writing of EMCP IC chips
11. Lead spacing: 0.5mm
12. Service life: 100,000 times

Testing method:
1. Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the direction
2. Plug the USB cable into the USB port of the computer, turn on the power switch of the socket, and select the corresponding test program

Features:
1. Also compatible with 186-FBGA 162-FBGA
2. The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head-shaped probe is designed to be hardened and thickened in the later stage to ensure product stability and durability.
3. Support hot plugging and separate power switch, support for testing through the USB interface or through the connection with the board on the board corresponding to the PIN
4. Using floating board structure, precise positioning, convenient IC picking and placement, higher work efficiency
5. The test board is welded to the adapter board, the test socket does not need to be soldered, and the pinholes are inserted into the adapter board
