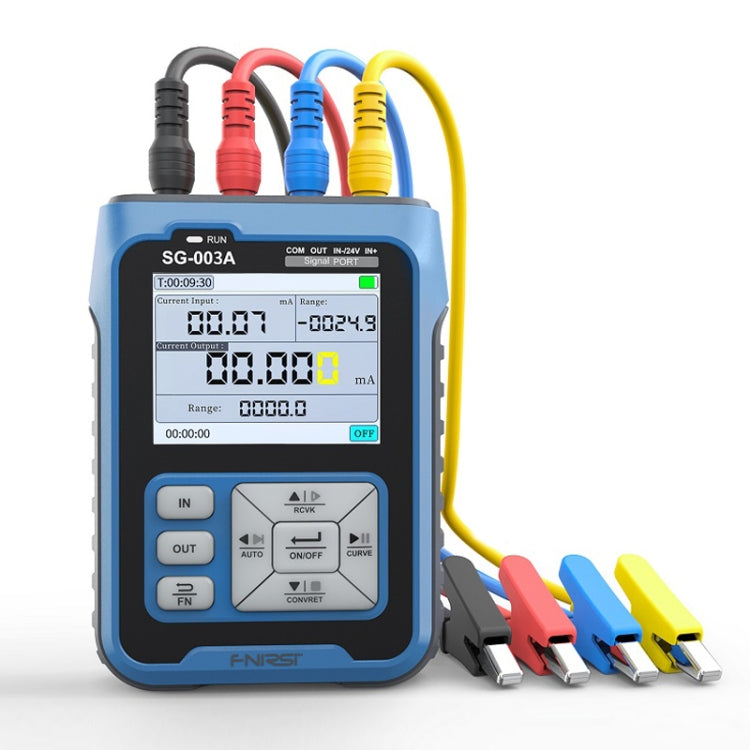

FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)

1. It is mainly used for debugging of industrial site PLC, process instrument, electric valve, etc.
2. Friendly operation interface is easy to use
3. Small size, light weight, long standby time, high precision, easy to carry when going out to work
4. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day
5. With conventional signal input and output functions
6. Voltage and current have automatic output function, and three modes of single rise, single fall and cycle can be selected
7. With input and output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode
8. The output has a custom function, and the upper and lower limits of the output can be set arbitrarily
9. Voltage input diagram, current input diagram, frame rate is 10 frames
10. PWM output can set frequency and duty cycle separately
11. Real-time curve: real-time observation of voltage and current changes

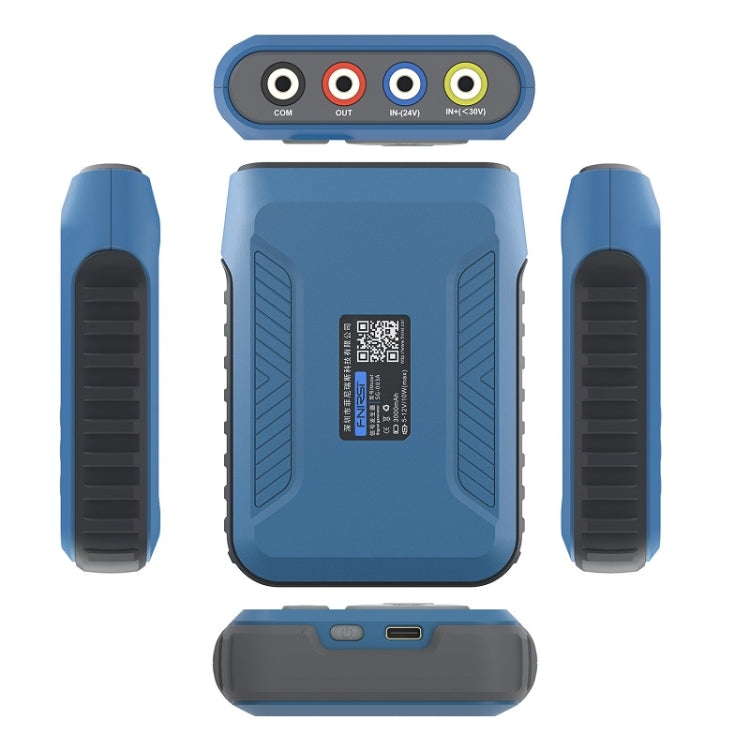

12. Powered by large-capacity lithium battery, charged by Type-c interface (5V)
13. Lithium battery capacity 3000mah, super long working time

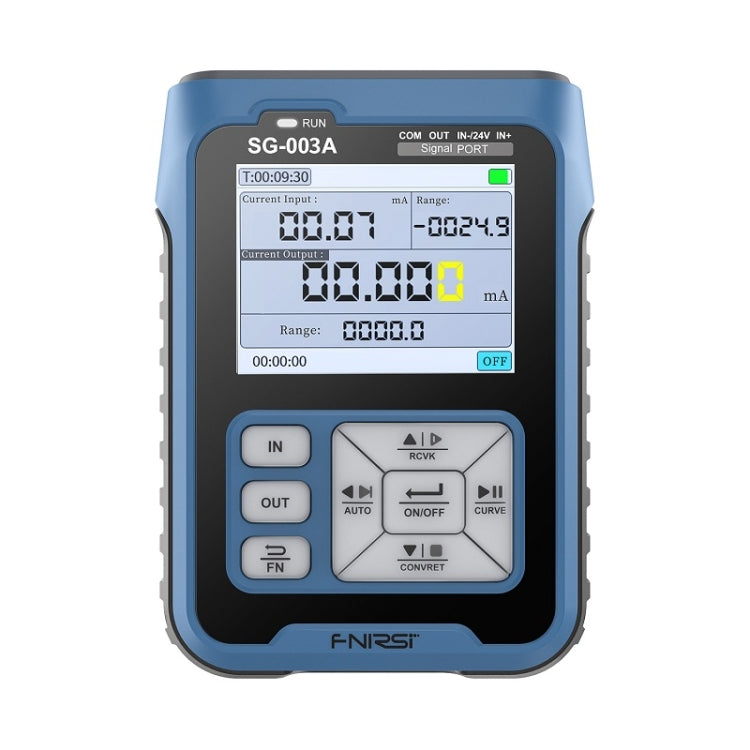

14. High-definition TFT color LCD screen, more eye-catching reading, with a resolution of 240x320
15. Power consumption (MAX): 0.32W
16. Standby time: 26 hours The use time varies according to the usage (20mA continuous output can be 8-10 hours)
17. Internal reverse and overcurrent protection, protection voltage 30V

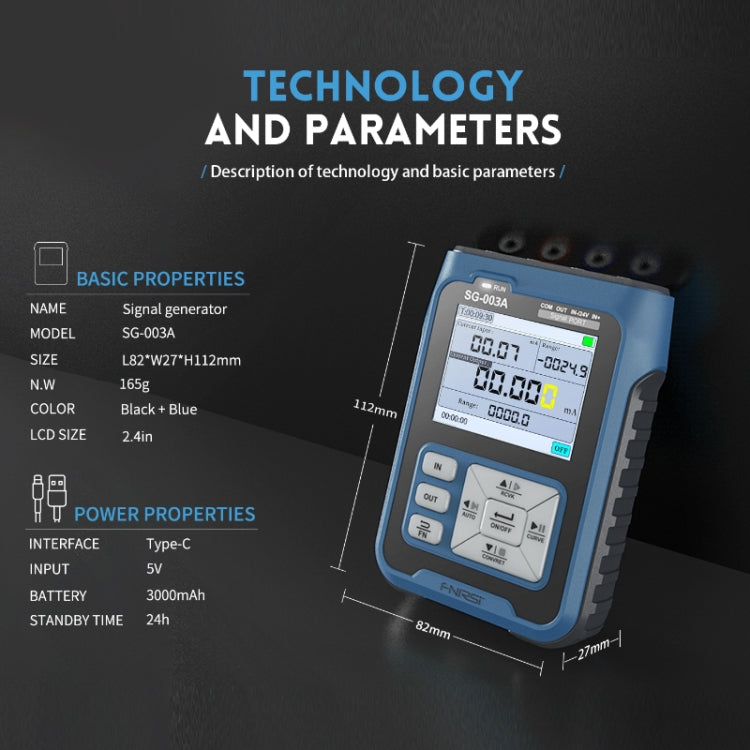

18. Dimensions: 92x72x30mm
19. Weight: 165 grams

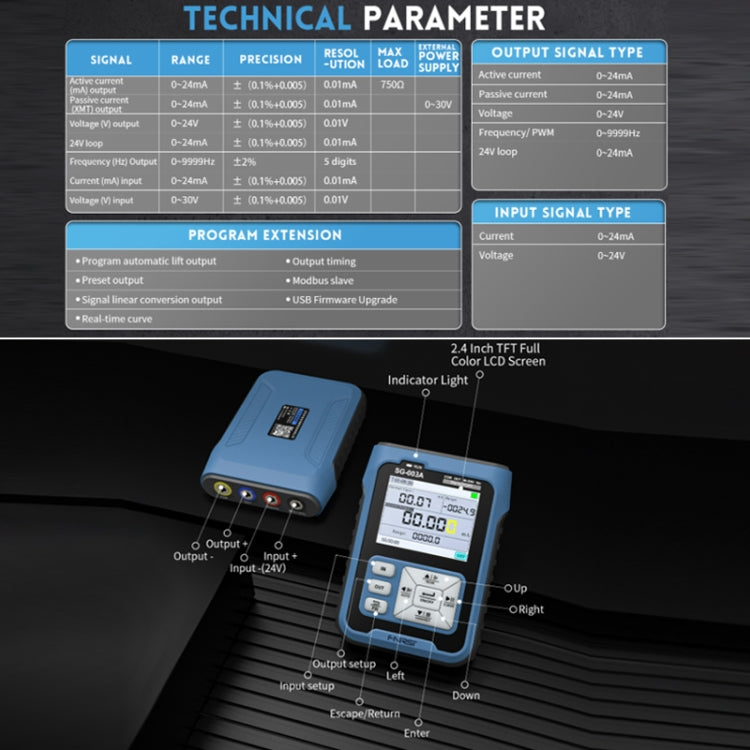

Active current output:
1. Range: 0~24mA
2. Resolution: 0.01 mA
3. Load (MAX): 750 ohms

Passive current output:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. The external power supply can reach 30V

Voltage output:
1. Range: 0-24V
2. Resolution: 0.01v
3. Current (MAX): 30mA

24V voltage output:
1. Drive current: 24mA
2. Resolution: 0.01mA

Current input measurement:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. Input impedance: 100 ohms

Voltage input measurement:
1. Range: 0-30V
2. Resolution: 0.01V
3. Input impedance: 2 milliohms

PWM output (frequency):
1. Range: 0-9999Hz
