Description
The L60 12V/24V 60A Solar Controller regulates voltage and current for solar power systems. It is suitable for solar off-grid systems and solar street lights, preventing battery over-discharge.
- Rated voltage: 12/24V lead-acid battery voltage
- Maximum charge and discharge current: 60A
- Solar panel input voltage range: maximum 18V-750W/36V-1500W
- Load working time setting: 1-24 hours adjustable
- Charging mode: PWM
- Overvoltage protection: 17V/34V
- Fully disconnected: 13.8V/27.6V adjustable
- Undervoltage disconnection: 10.8V/21.6V adjustable
- Over-discharge recovery voltage: 12.2V adjustable
- Wiring specification: less than or equal to No. 3 AWG (22 square millimeters)
- Working environment temperature: -25 to 55 degrees Celsius

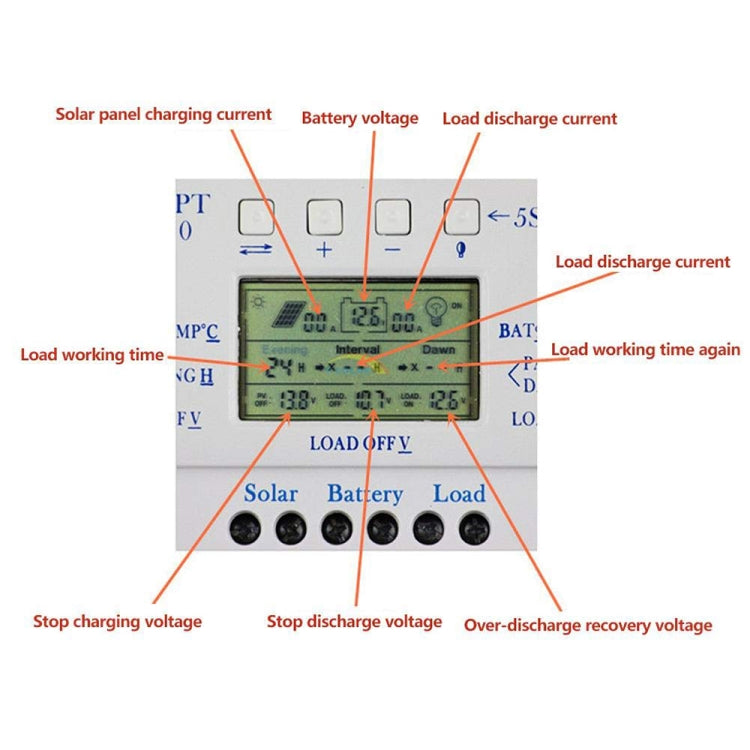

- LCD display: vivid graphic symbol LCD display
- Intelligent micro-processing with automatic temperature compensation
- Adjustable charge and discharge control parameters
- Protection functions: battery reverse discharge, undervoltage, reverse connection, overload, overcharge, short circuit
- Automatic recognition of day/night
- Timing period of street lamps: adjustable from 1 to 24 hours
- Dual period load discharge setting function
- Temperature compensation for improved battery life
