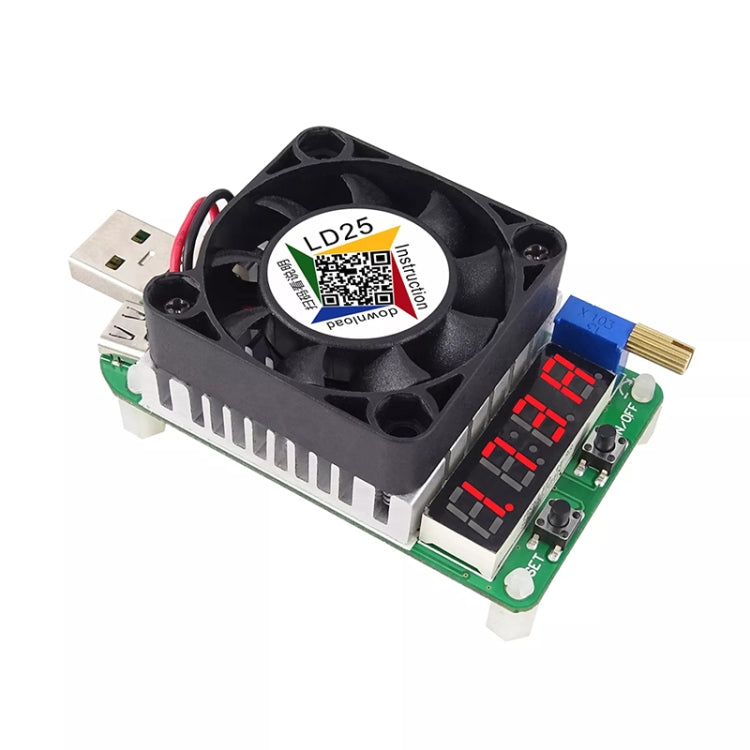

LD25 Adjustable Current Voltage Electronic USB Load Resistor Discharge Battery Test
LD25 Adjustable Current Voltage Electronic USB Load Resistor Discharge Battery Test
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

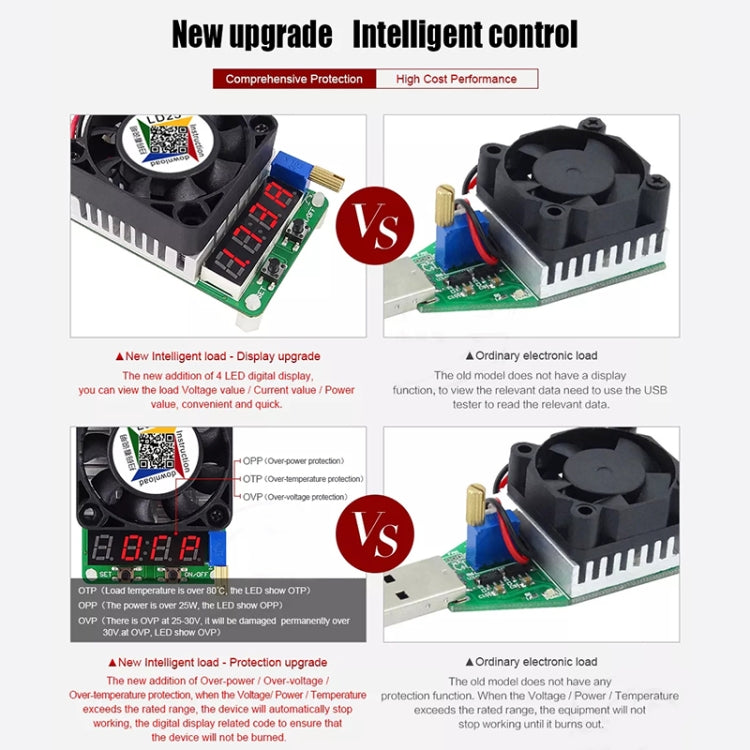

2. OVP overvoltage protection (25V-30V overvoltage protection, digital display OVP, permanent damage after more than 30V); OPP over-power protection (load temperature is greater than 80 degree Celsius, the device stops working, digital display OTP); OTP over-temperature protection (power greater than 25W, equipment stops working, digital display OPP).
3. Provide 4A, 25V, 25W (3 values are not exceeded) constant current test discharge task. The friendly human-computer interface and excellent performance indicators can meet the diverse testing needs.

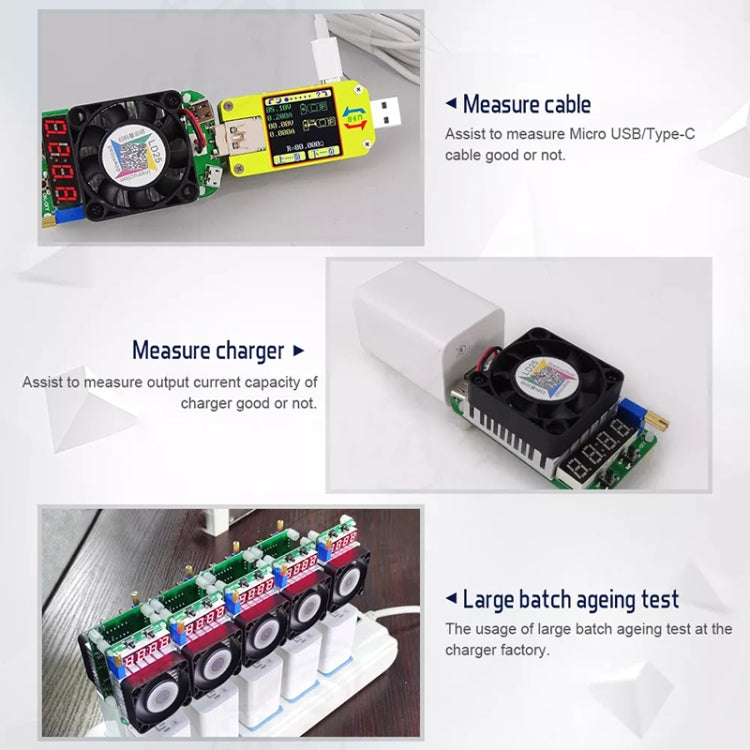

4. It is suitable for measuring the output current capability of the charger, using the bulk aging test of the charger factory, and measuring the quality of the Micro USB charging cable and the Type-C charging cable.
5. Specifications:
Rated operational voltage: DC4-25.0V
Max discharging power: 25W
Rated operational current: 0.25-4.00A (when fan do not work, the minimum constant current is 0.05A )
Fan Speed: Large size intelligent temperature control fan, speed 5800+/-10%RPM
Constant current resolution: +/-(1%+3 digits)
Heat dispatch method: intelligent temperature control fan + all aluminum fan
Working temperature: -10-40 degree Celsius

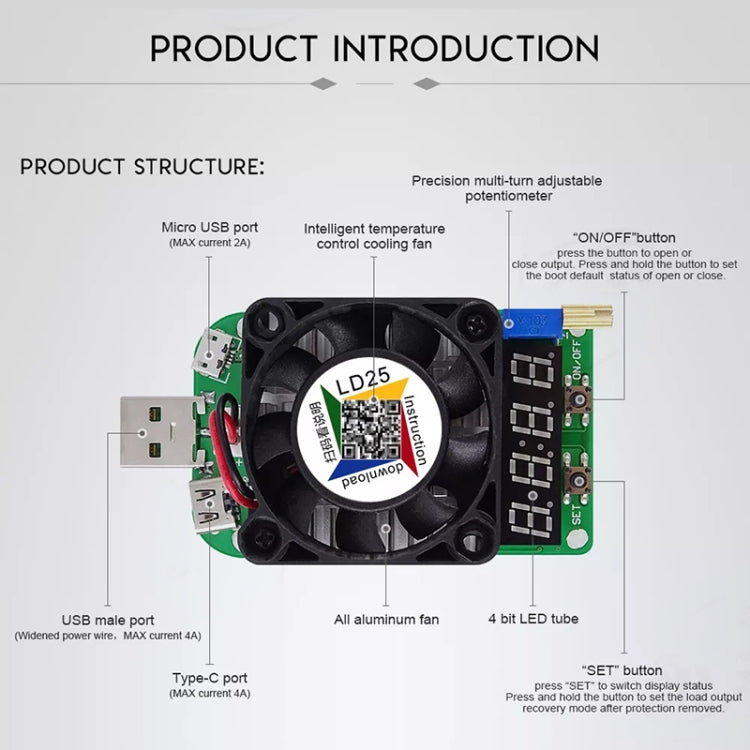

Adjustable potentiometer: precision multiloop adjustable potentiometer

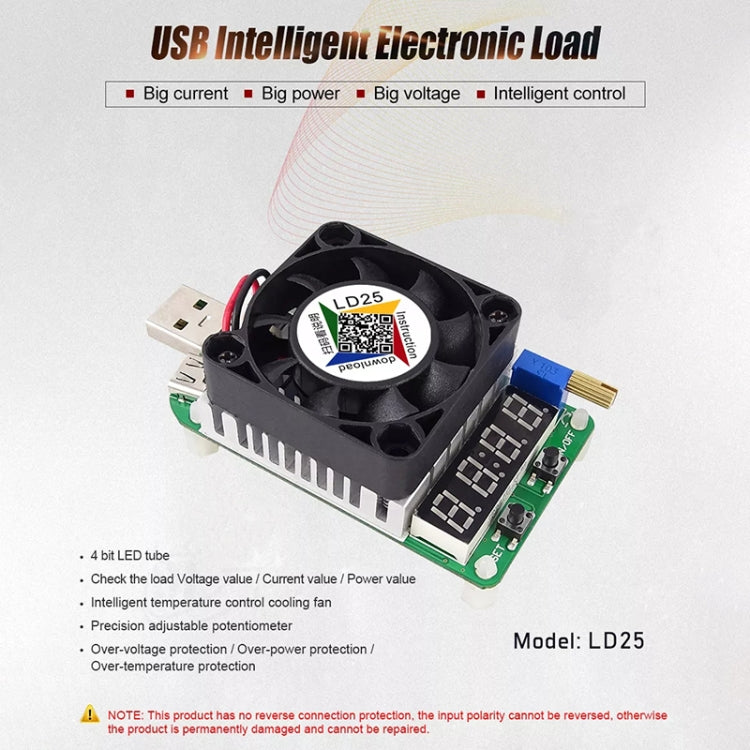

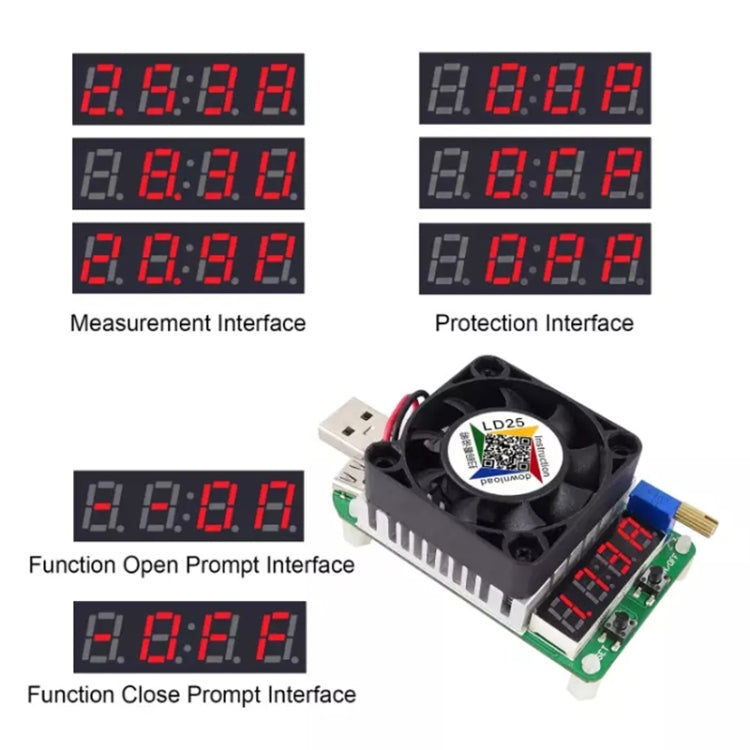

Display mode: 4 bit LED tube

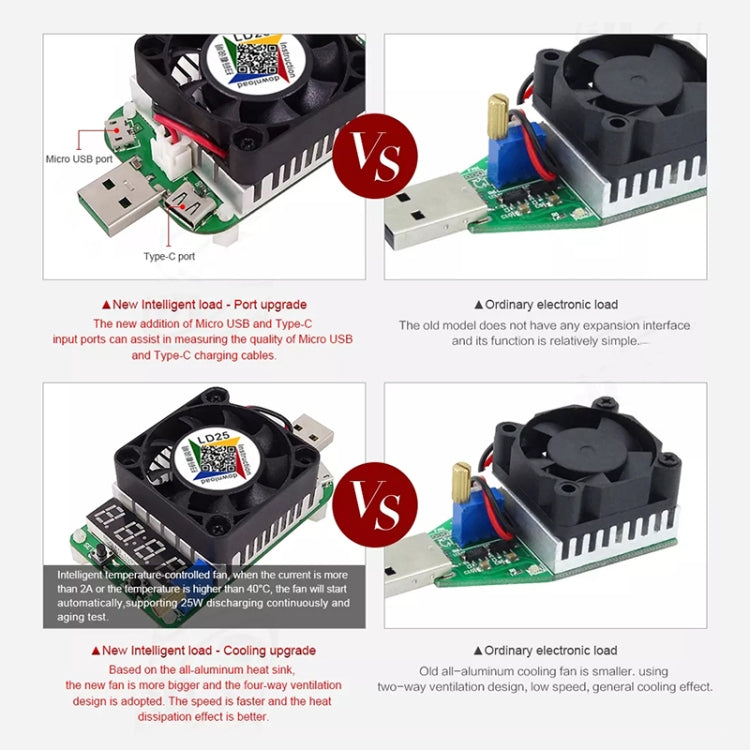

Expansion port: Micro USB port, Type-C port
Product weight: 57g

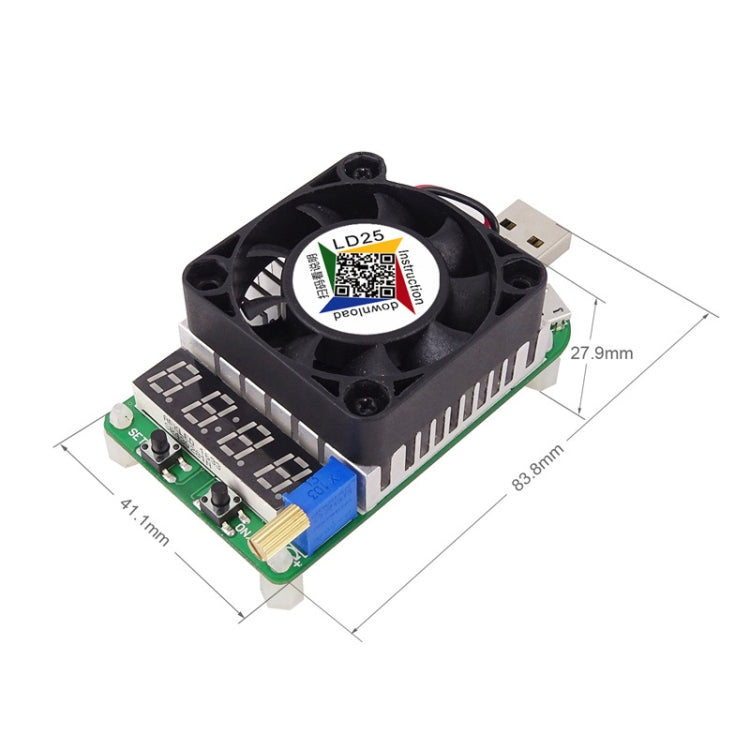

Product size: 83.8x41.1x27.9mm
