Lead-Acid Battery Version 12V Digital Display DIY Battery Spot Welding Machine Pen Control, Style:10 Square Pen With Case
Lead-Acid Battery Version 12V Digital Display DIY Battery Spot Welding Machine Pen Control, Style:10 Square Pen With Case
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description

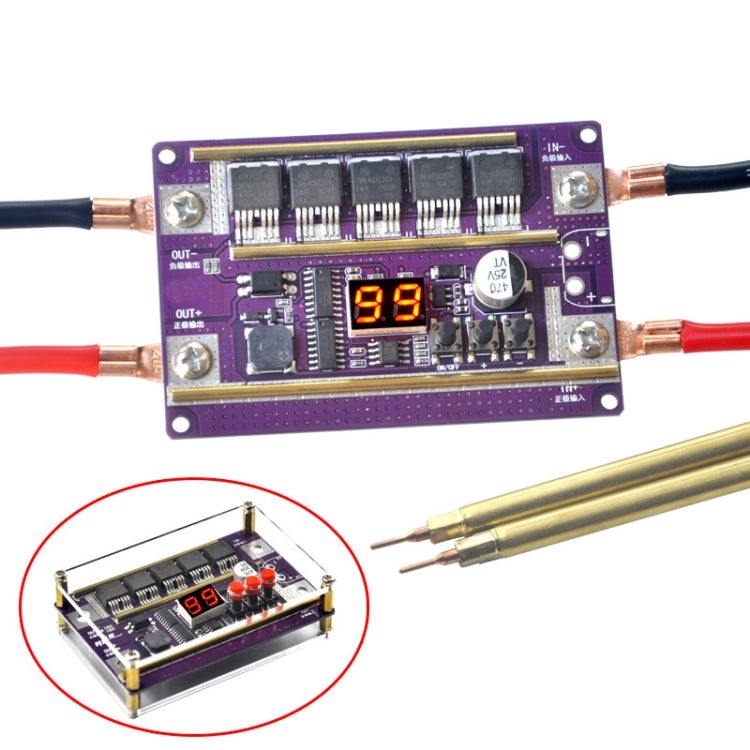

The Lead-Acid Battery Version 12V Digital Display DIY Battery Spot Welding Machine Pen Control is designed for spot welding nickel plating sheets and battery connections. It is suitable for applications such as welding lithium cylindrical batteries and nickel sheets in various thicknesses.

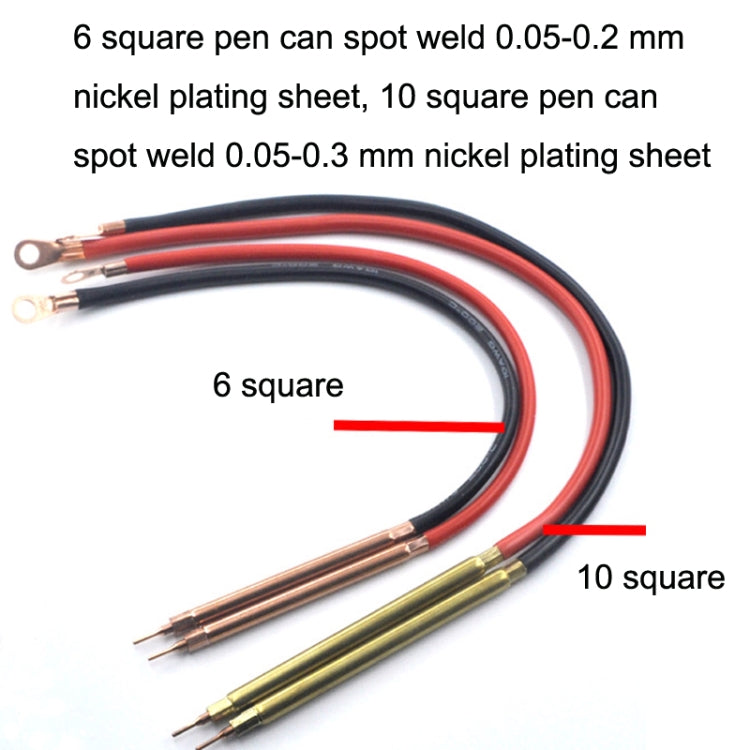

- Welding Capability: 6 square pen for 0.05-0.2 mm nickel plating sheet, 10 square pen for 0.05-0.3 mm nickel plating sheet

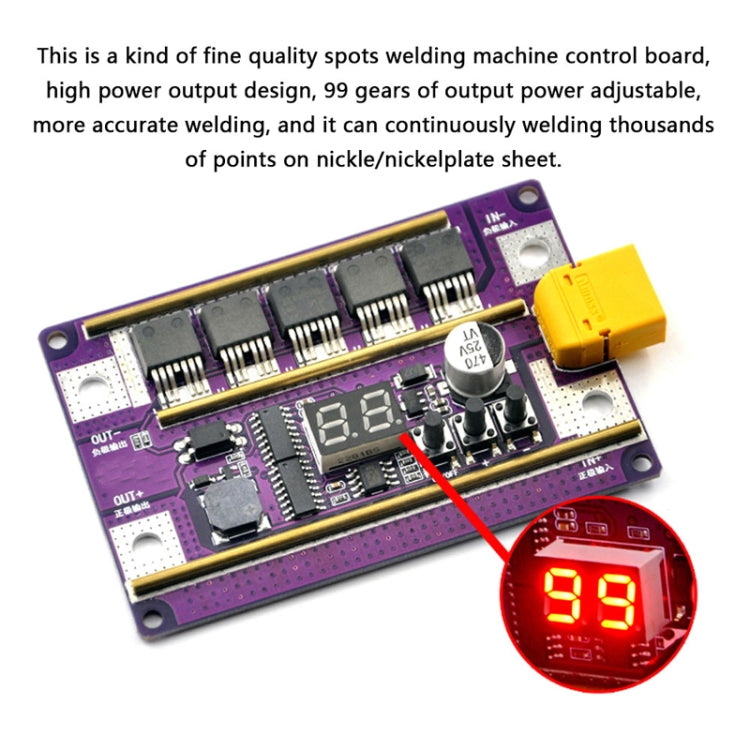

- Output Power: 99 adjustable output power settings
- Current: 2390A maximum current using 5 MOS transistors
- Welding Principle: High current and high temperature melting of nickel foil
- Components: Two copper bars for increased over-current capacity
- Welding Materials: Supports welding of nickel sheet, iron sheet, stainless steel sheet

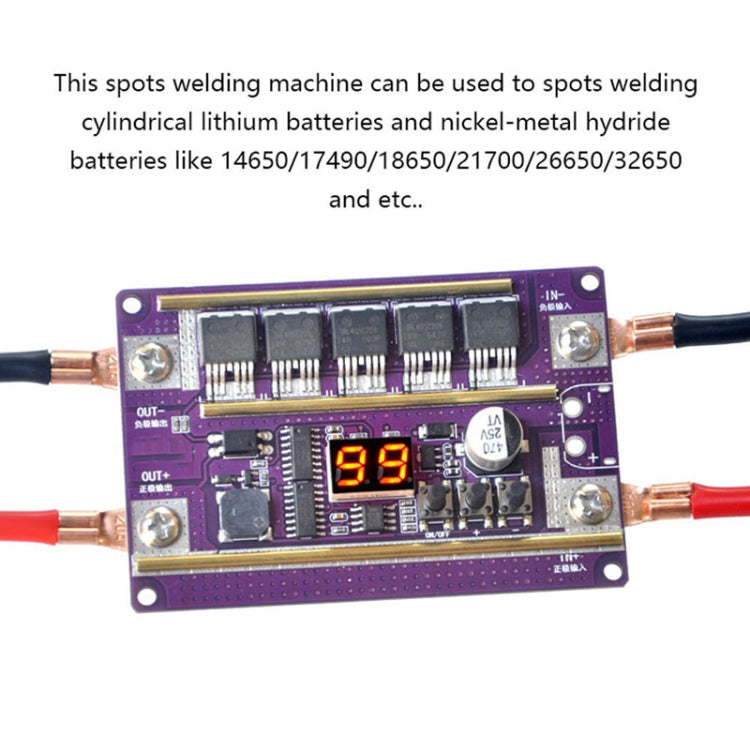

- Battery Compatibility: Suitable for lithium cylindrical batteries (14650/17490/18650/21700/26650/32650) and Ni-MH batteries
- Display: Digital tube display
- Power Supply: Requires old lead-acid battery (12V20AH-100AH), new battery must not exceed 45AH
- Battery Lifespan: 20AH old lead-acid battery lifespan up to 1 year
- Capacitor Option: Can use 4-5 super-faraday capacitors
- Prohibited Power Sources: Do not use switching power supply, transformer, charger, water battery, or power supply spot welding machine
- Control Board Voltage: 9-16V operating voltage
- Control Board Current: 90-180A operating current
Questions about features, compatibility, or warranty? Chat with our local support team!
