Description

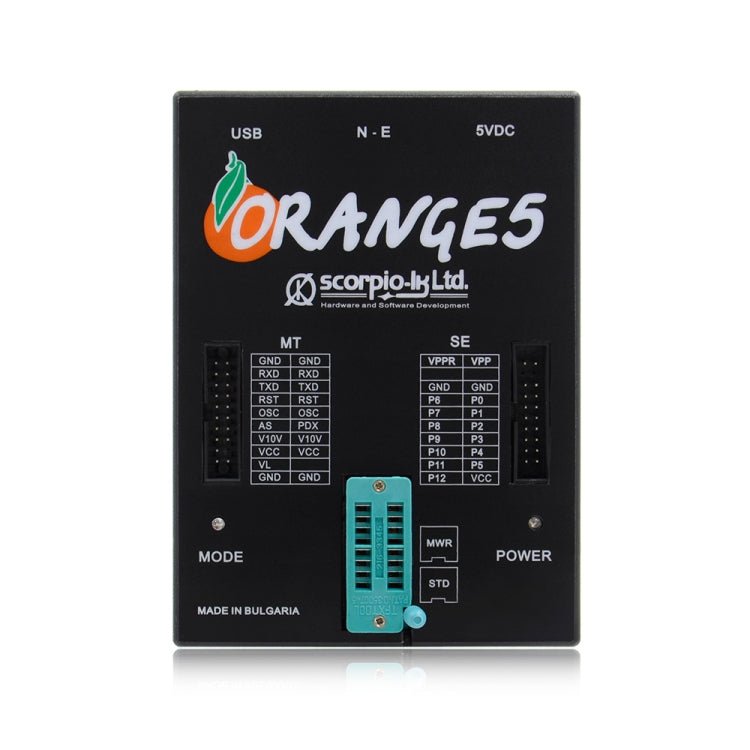

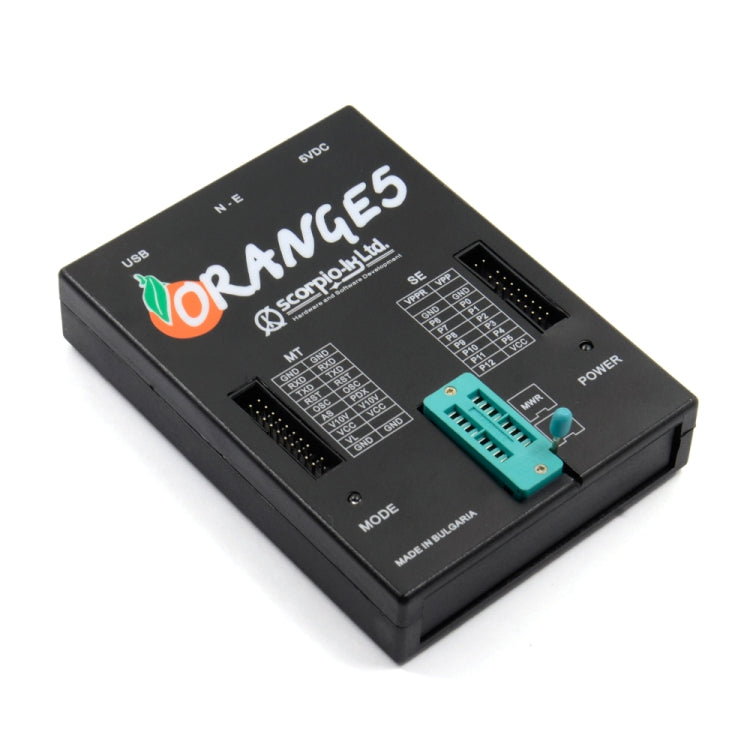

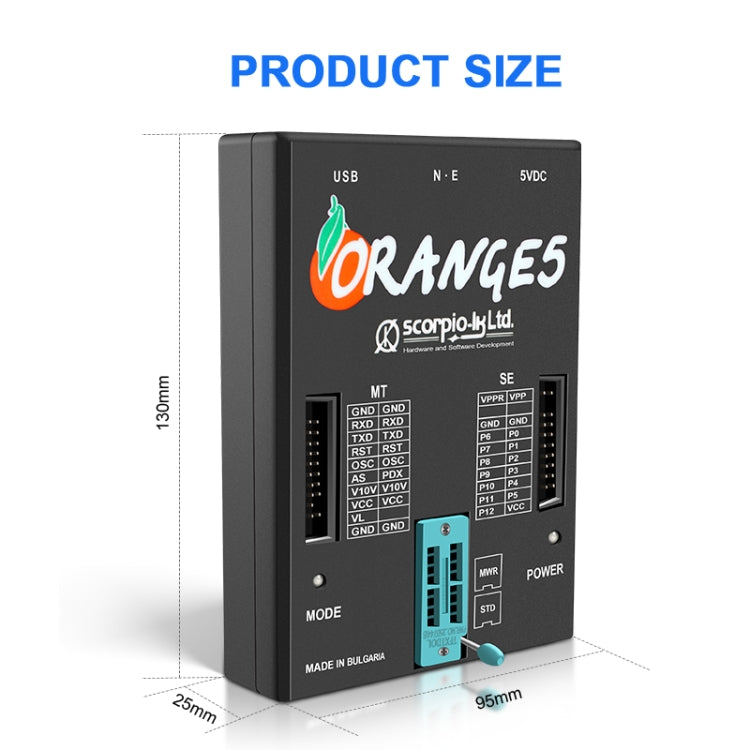

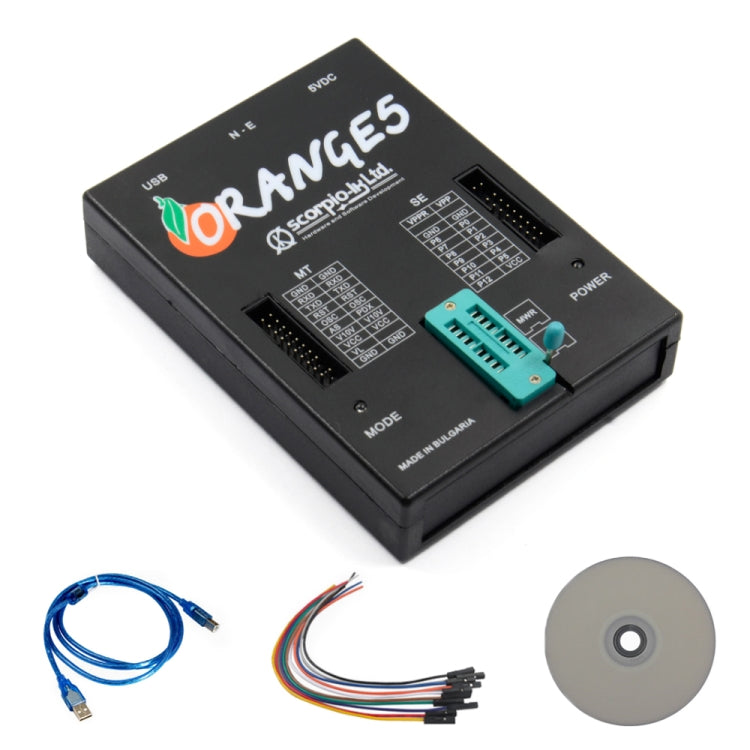

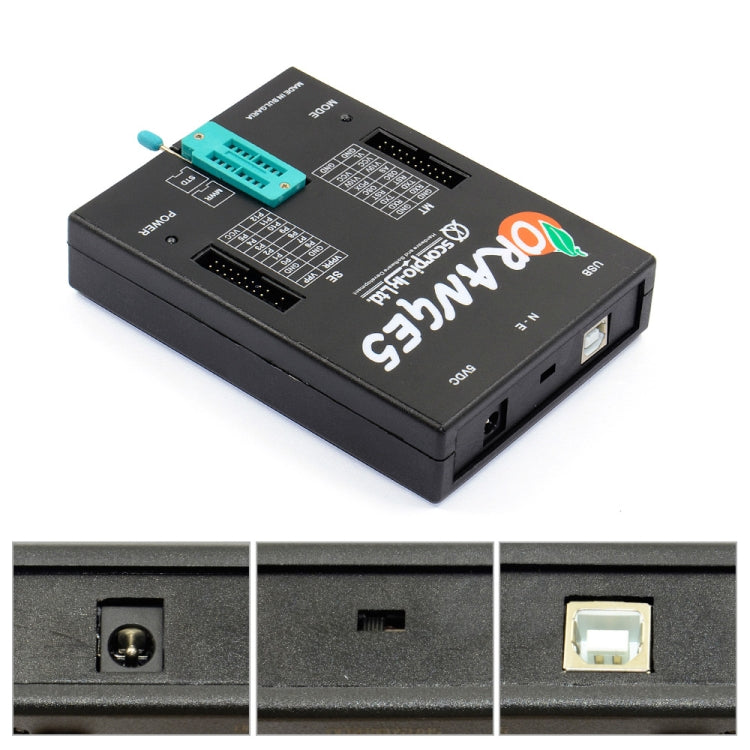

Orange5 V1.34 is a professional programming device designed for diagnostic scanning and code reading. It is suitable for everyday use in various programming and diagnostic tasks.
- Product Type: Code Readers & Scan Tools
- Compatibility: Orange5 V1.34
- Material: Functional box
- Supports COM ports from 1 to 20, including virtual ports
- Works with text (ASCII) and HEX mode
- Allows creation of command lists for editing and fast sending
- Fine-tuning of exchange rate
- File saving capabilities for command and port settings
- Supports saving incoming data in binary files
- File transfer via serial port
- Adjustable delay settings for bytes and blocks
- Echo mode functionality
- Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
- No installation required for the program
- Supports Orange5 programmer in emulation mode
- Software License: MTRK, TMS, M08V NEW Immo HPX 9V0, NEC V850ES/SJ3, V850ES/SG3, UART NEC V850E2 NEW
- Technical Info: USB power supply (USB2.0/3.0)
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions compatible with Orange4 and Omega MTRK
- Protection against overcurrent and overload voltage
- Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
- Three adjustable voltage and current controls: Power supply (2.0...5.0V), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Wave cycle generator with frequency up to 24 MHz and output voltage adjustment (2.0...5.0V)
- Functional emulation of class CDC USB devices
- Built-in 32-bit virtual machine
- Supported interfaces: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
- Enclosed in a functional box
- Supported operating systems: Windows XP, Windows 7 (32-bit), Windows 8.1
- Software Version: V1.34
- Supported languages: Chinese, English, Russian
