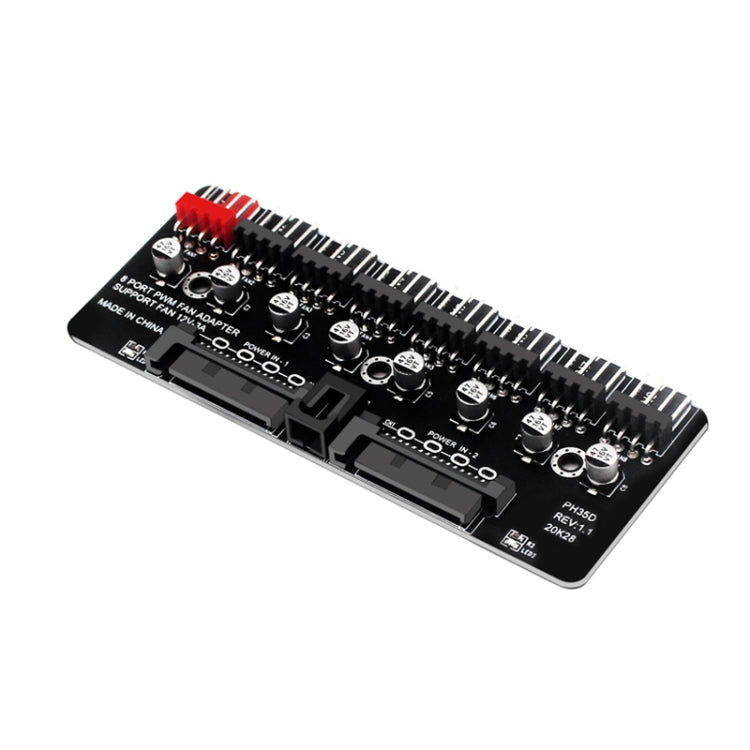

PWM Fan Hub Computer CPU Fan Extender(SATA Interface)

• Product type: Others
• Compatibility: Computer systems
• Material: Not specified
• Key feature: 8-port fan hub
• Color/Variant: Not specified
• Intended use: Fan management
• Category: Computer & Networking

1. Product input: large 4Pin or SATA
2. Product output: motherboard 4-pin interface supports motherboard 3-pin/4-pin fan
3. Number of ports: 8 ports
4. Product size: about 10 x 4cm
5. Product weight: about 48.2g
Features:
1. Expand the 4-pin interface of 8-port fan to centralize the processing of fan wires, but retain the intelligent speed control function, and the interior is neat and beautiful.
2. It can be directly powered by the power supply, reducing the load pressure on the motherboard, and the power supply and temperature control are both correct.
3. Can support 8 12V 2A high-power fans.
4. Equipped with 8 high-quality capacitors to provide stable and safe power to the fan.
5. Cut the long socket pins short to avoid the risk of short circuit caused by too long pins.

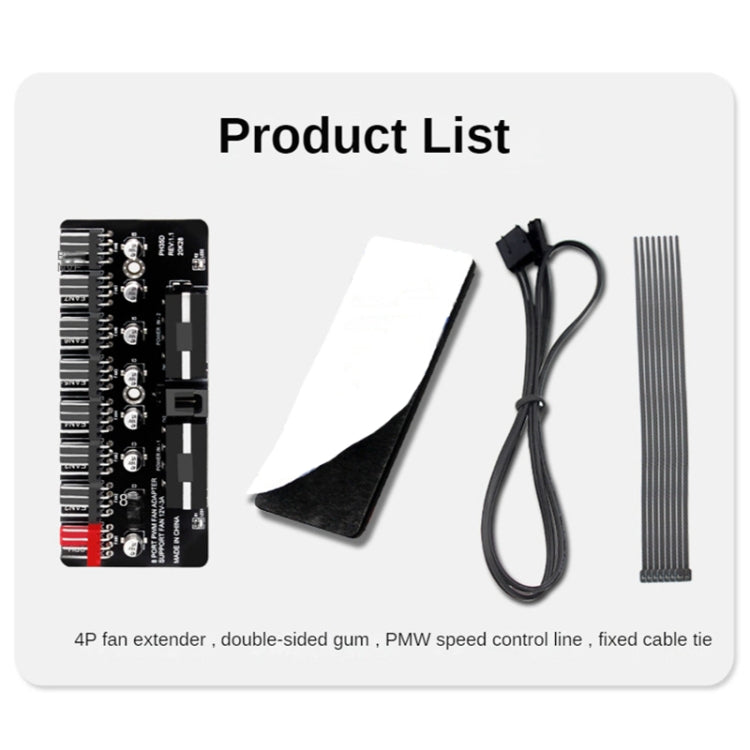

6. Equipped with a 2P to 4P PWM fan control line: 2P terminal connected to the 2-pin socket of the controller, 4P CPU PWM 4-pin fan socket connected to the computer motherboard.
7. Equipped with a strong double-sided adhesive EVA cotton, thickness 2mm, EVA completely covers the bottom.
8. Equipped with 10 self-locking nylon cable ties, which can be used to fix the PCB, or organize and bundle the installed fan lines.
