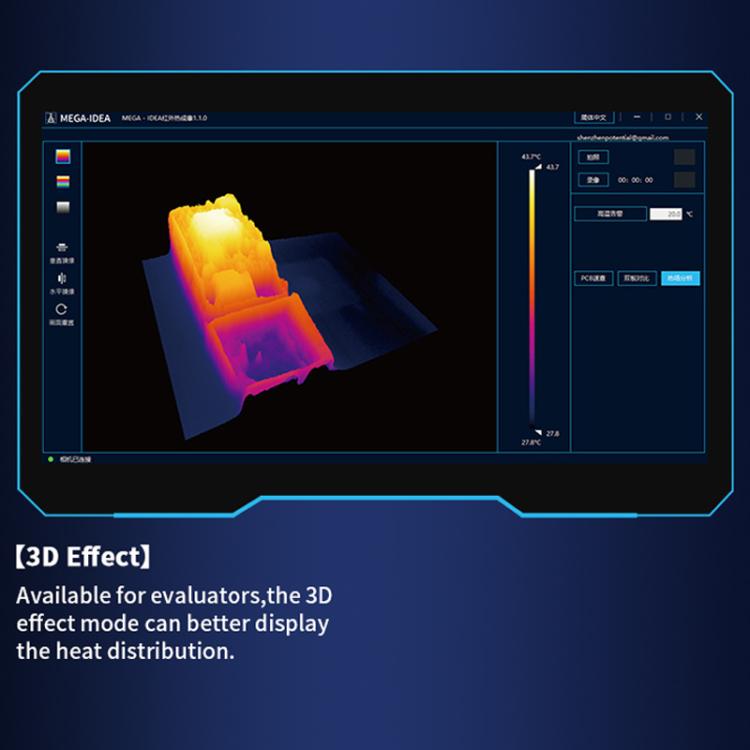

1. Available for evaluators, the 3D effect mode can better display the heat distribution

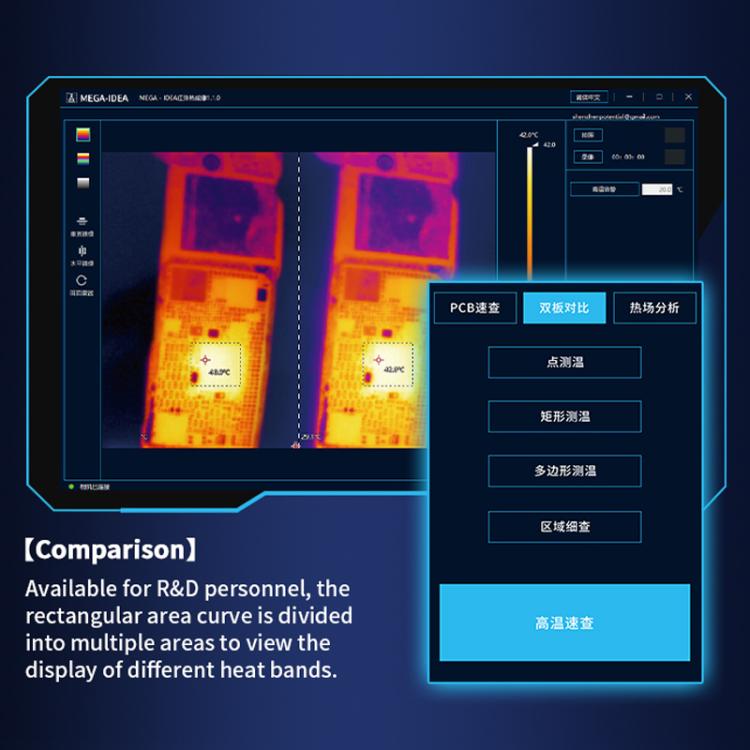

2. Available for R&D personnel, the rectangular area curve is divided into multiple areas to view the display of different heat bands

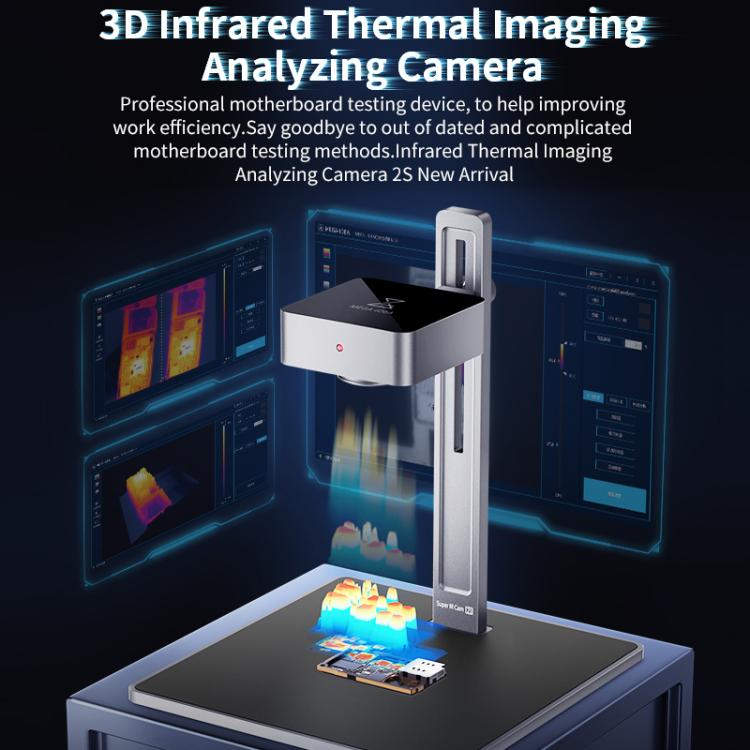

3. Professional motherboard testing device, to help improve work efficiency
4. Say goodbye to out of dated and complicated motherboard testing methods

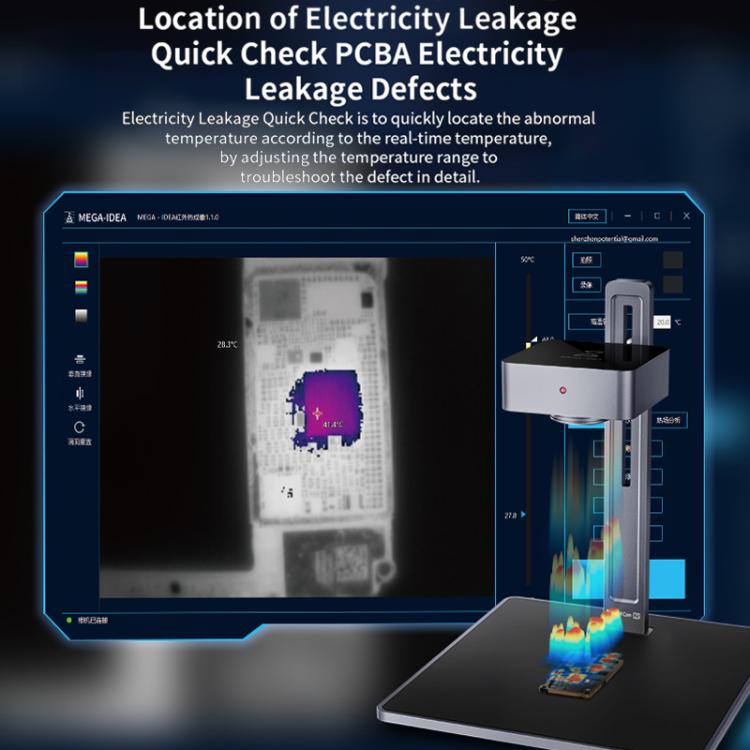

5. Location of Electricity Leakage Quick Check PCBA Electricity Leakage Defects
6. Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail

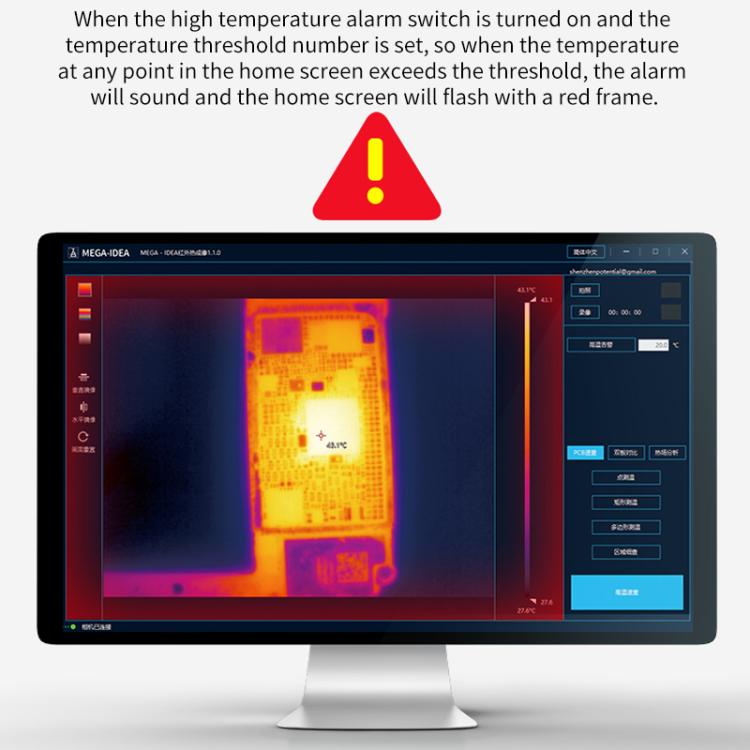

7. When the high-temperature alarm switch is turned on and the temperature threshold number is set, so when the temperature at any point in the home screen exceeds the threshold, the alarm will sound and the home screen will flash with a red frame

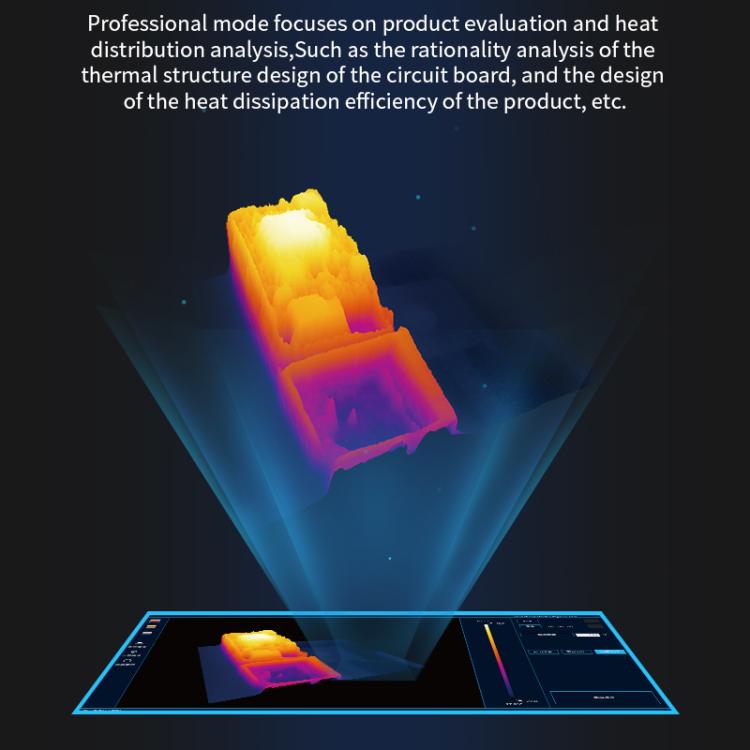

8. The professional model focuses on product evaluation and heat distribution analysis, Such as the rationality analysis of the thermal structure design of the circuit board, the design of the heat dissipation efficiency of the product, etc

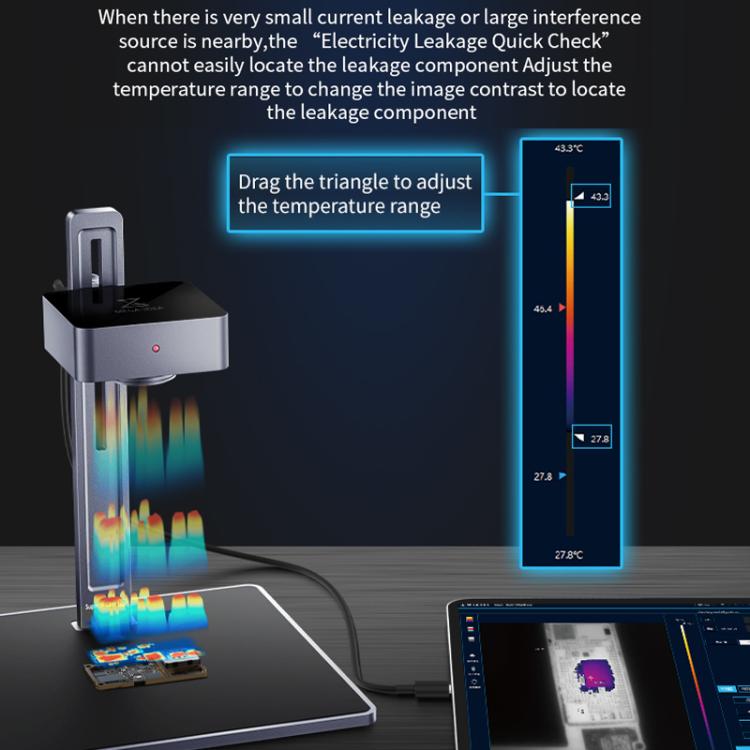

9. When there is a very small current leakage or a large interference source is nearby, the "Electricity Leakage Quick Check" cannot easily locate the leakage component
10. Adjust the temperature range to change the image contrast to locate the leakage component

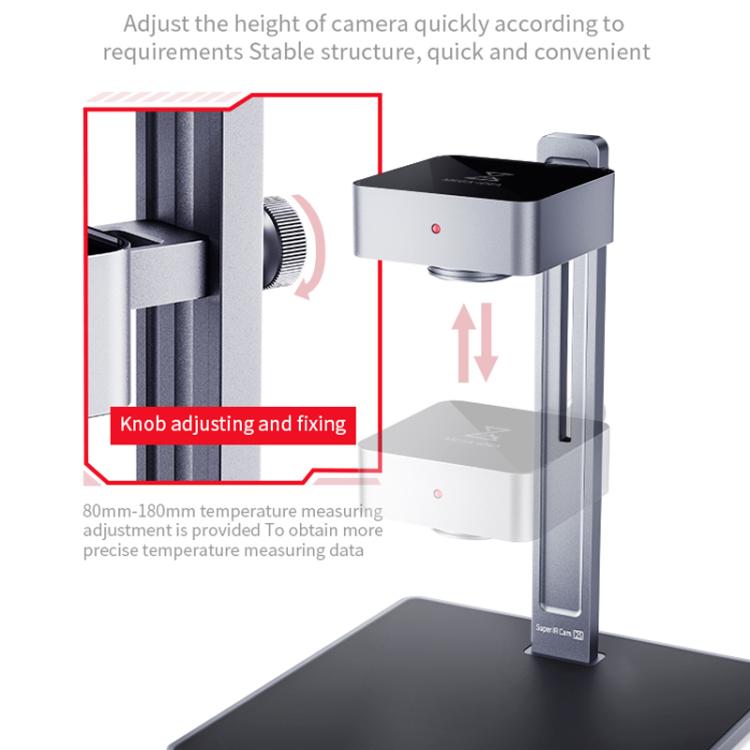

11. Adjust the height of the camera quickly according to requirements Stable structure, quick and convenient

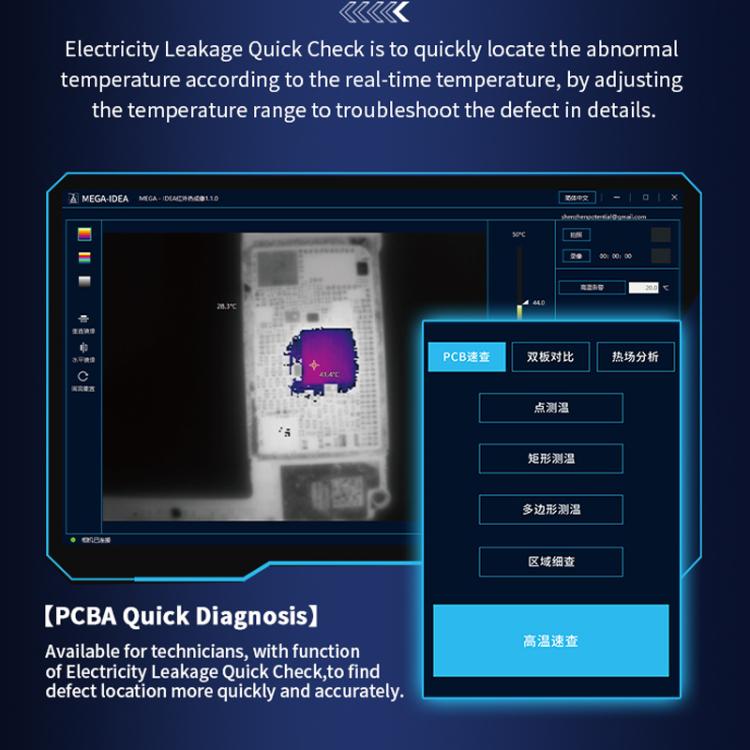

12. Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail
