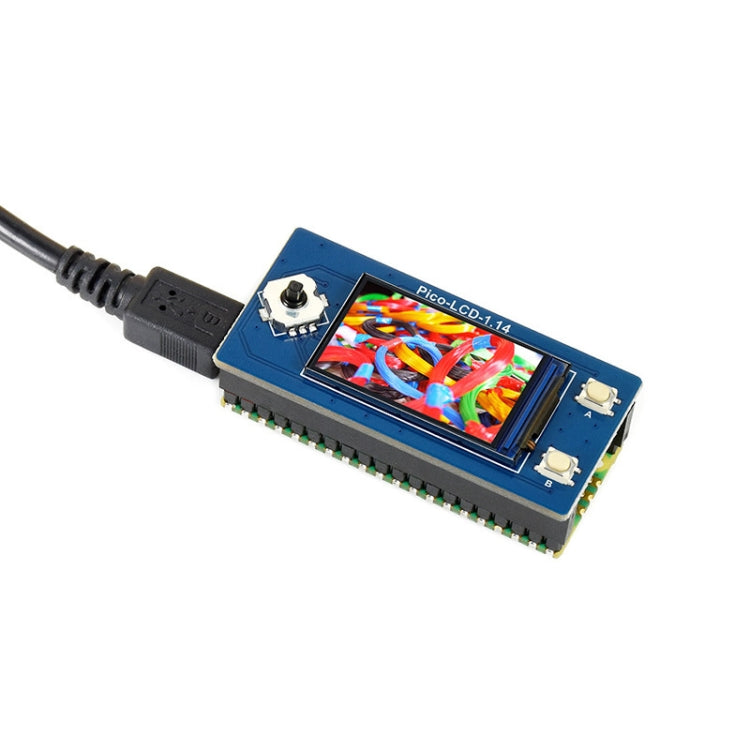

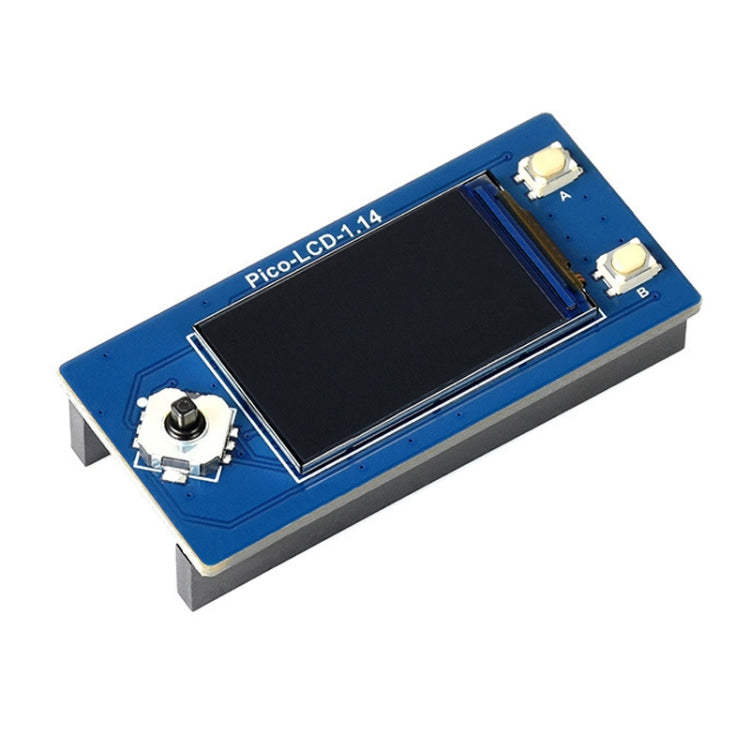

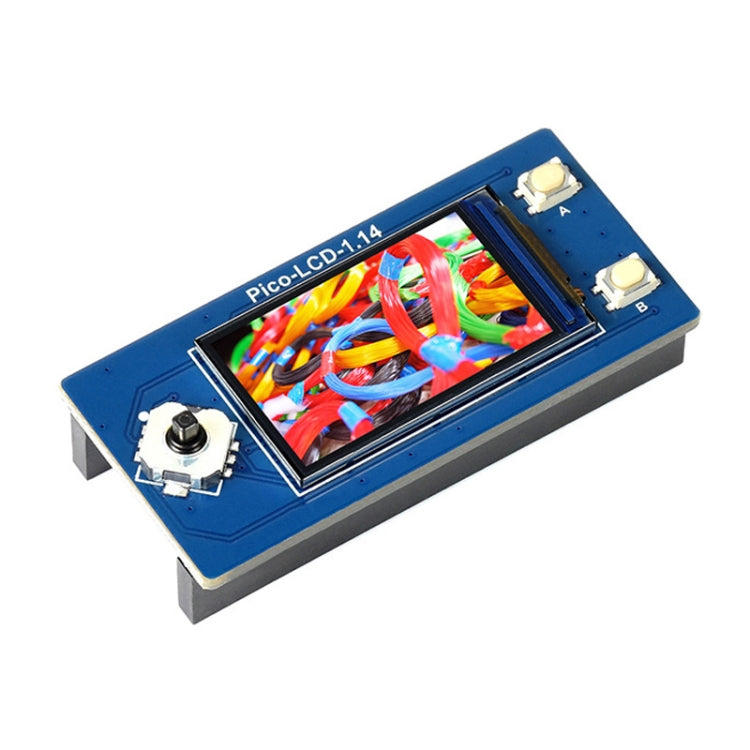

Waveshare 19340 For Raspberry Pi Pico 1.14inch 65K Colors LCD Display Module

Waveshare 19340 For Raspberry Pi Pico 1.14inch 65K Colors LCD Display Module

Regular price R 359.00
Regular price Sale price R 359.00
Sale Sold out
FREE DELIVERY on all orders.

In stock

🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!

NO FEE for SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 working days.

Overseas Warehouse: Shipping from China.

This item ships from our overseas warehouse. As the importer, you will be responsible for paying any customs duties, taxes, and clearance fees upon arrival in South Africa. These fees are not included in the price and are non-refundable.

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

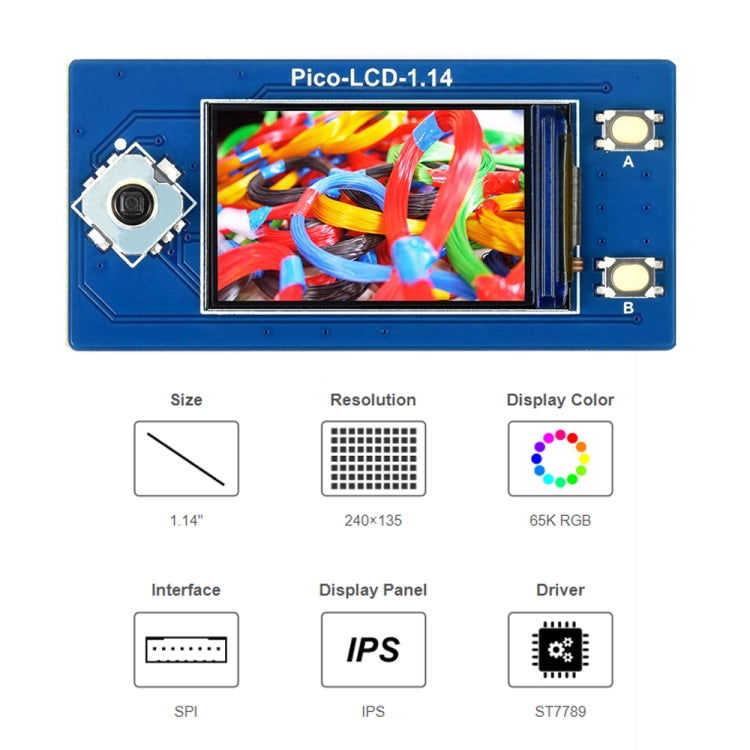

1. 240 x 135 resolution IPS LCD screen, 65K color, can clearly display color pictures
2. Use SPI control to ensure that it does not occupy too many interface pin resources
3. Comes with 1 joystick and 2 buttons for easy expansion of applications
4. Working voltage: 2.6-5.5V
5. Resolution: 240 x 135 pixels
6. Communication interface: 4-wire SPI

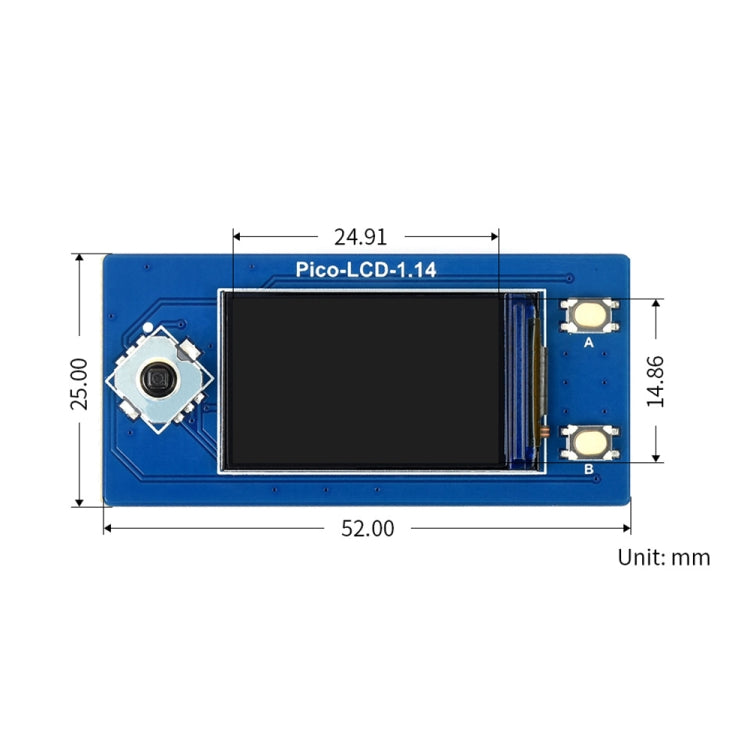

7. Display size: 24.91 x 14.86mm
8. Display panel: IPS
9. Pixel size: 0.1101 x 0.1035mm
10. Control chip: ST7789
11. Application field: digital electronics
12. Product size: 52 x 25mm
13. Weight: 11g
