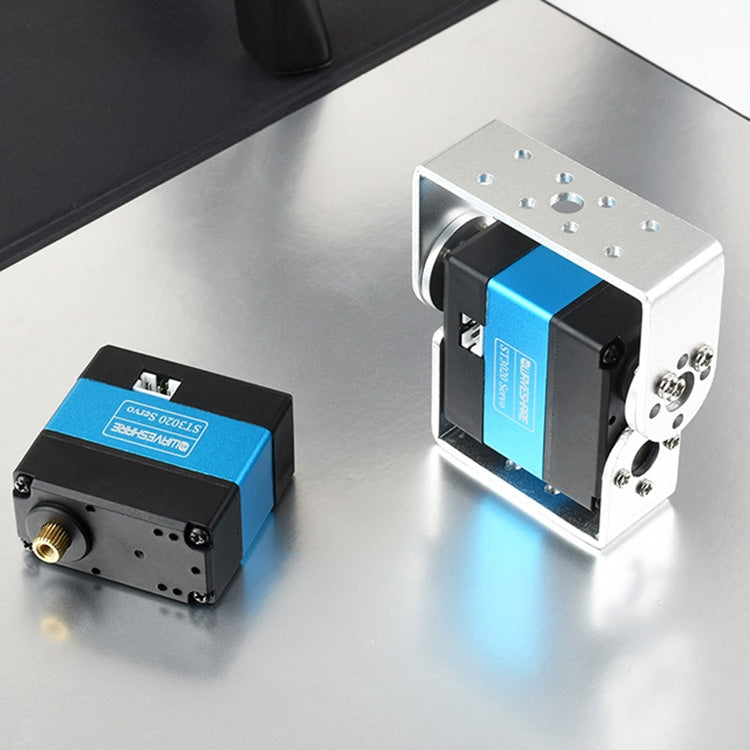

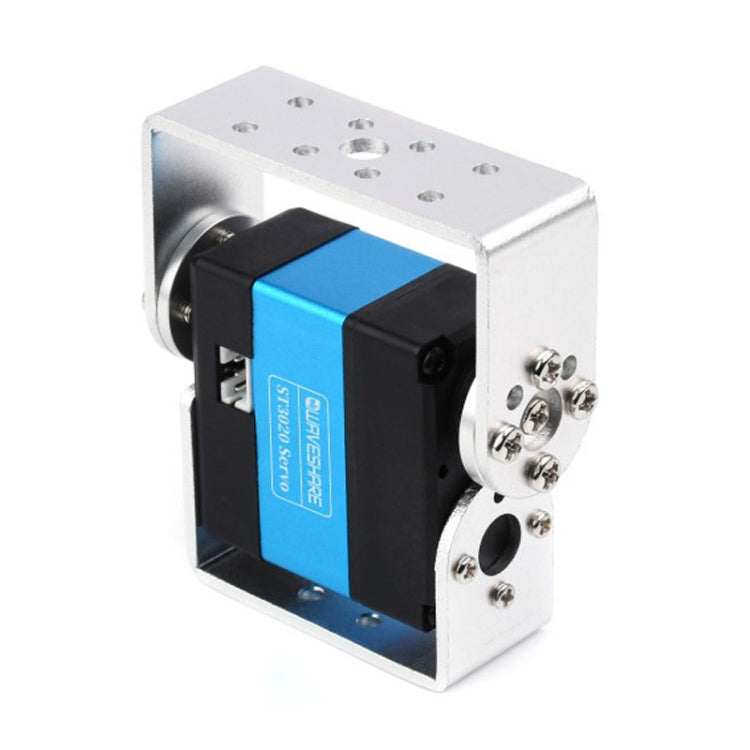

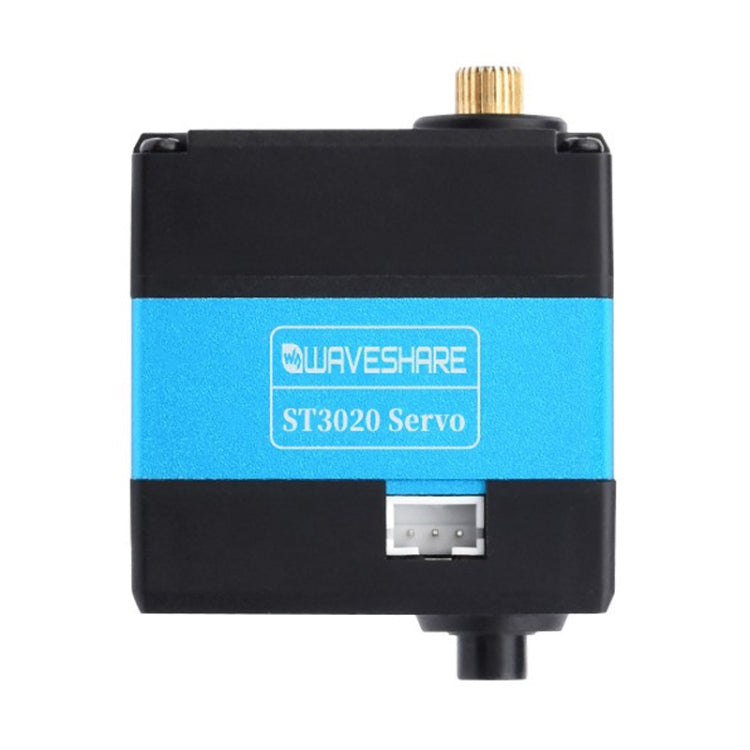

Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo

Name: Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo
Brand: Waveshare
SKU: TBD06006694
Price: 769.00 ZAR
Availability: InStock

R 769.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

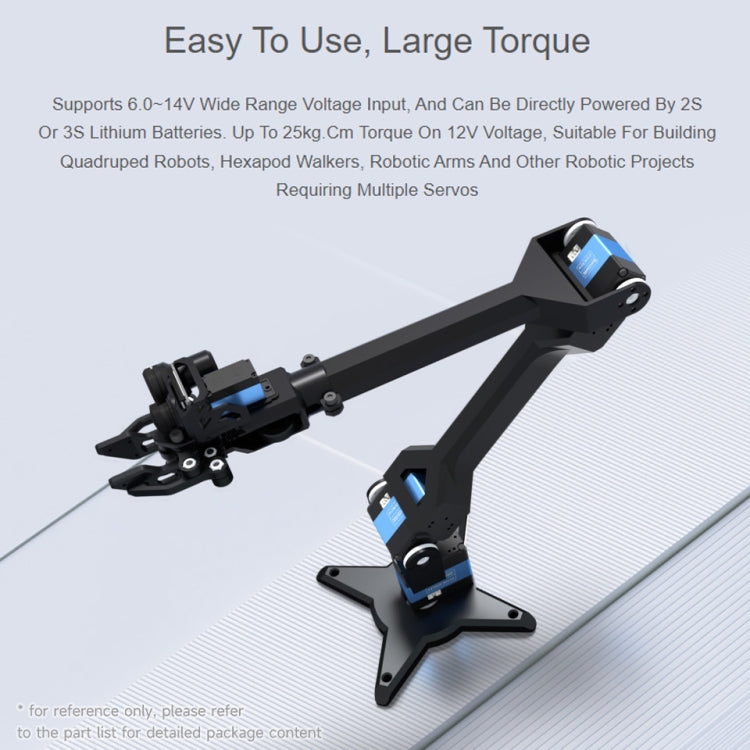

1. Torque: 25kg.cm@12V

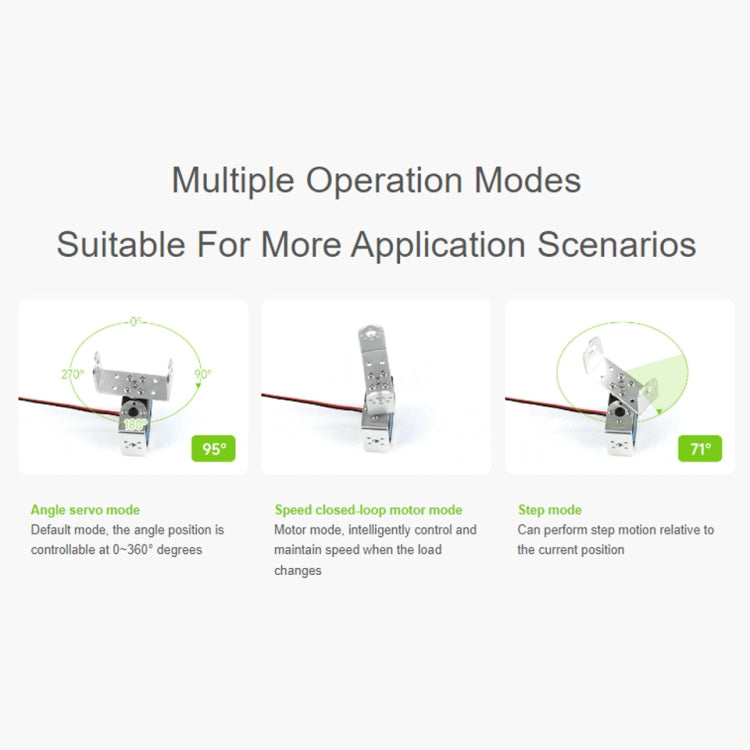

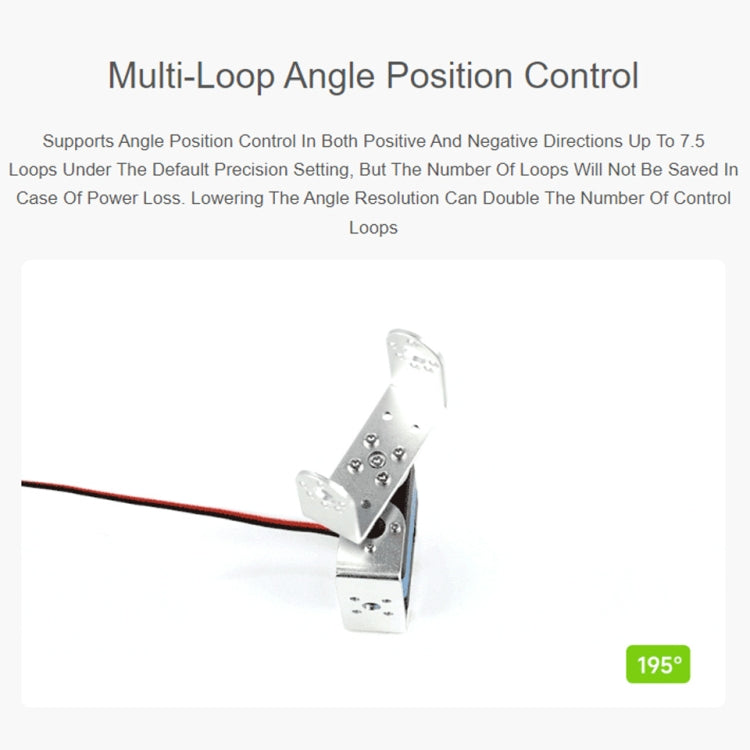

2. Rotation angle: 360 degrees (0-4095)
3. Position sensor resolution: 0.088 degrees (360 degrees/4096)
4. Institutional restriction angle: no restriction

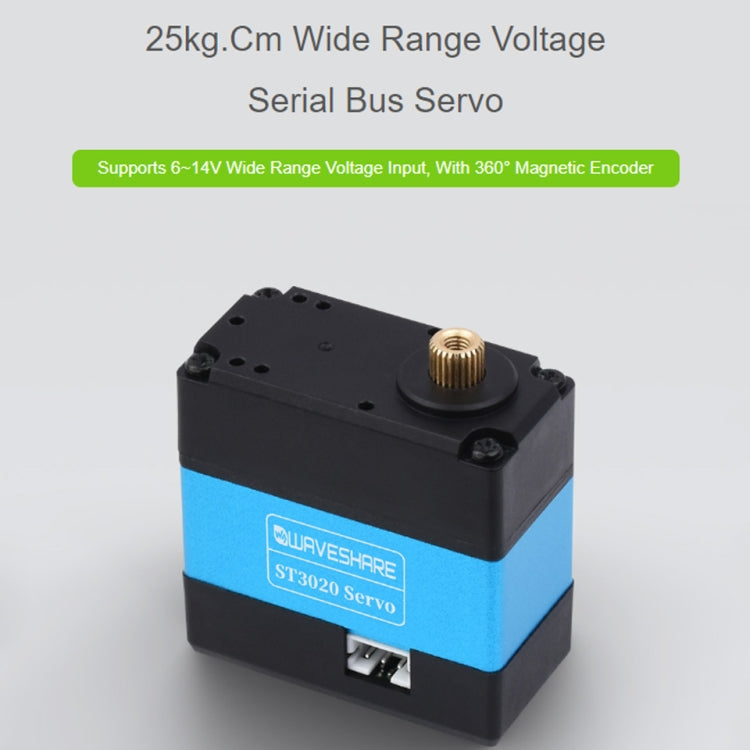

5. Working voltage: 6-14 V (typ. 12V)

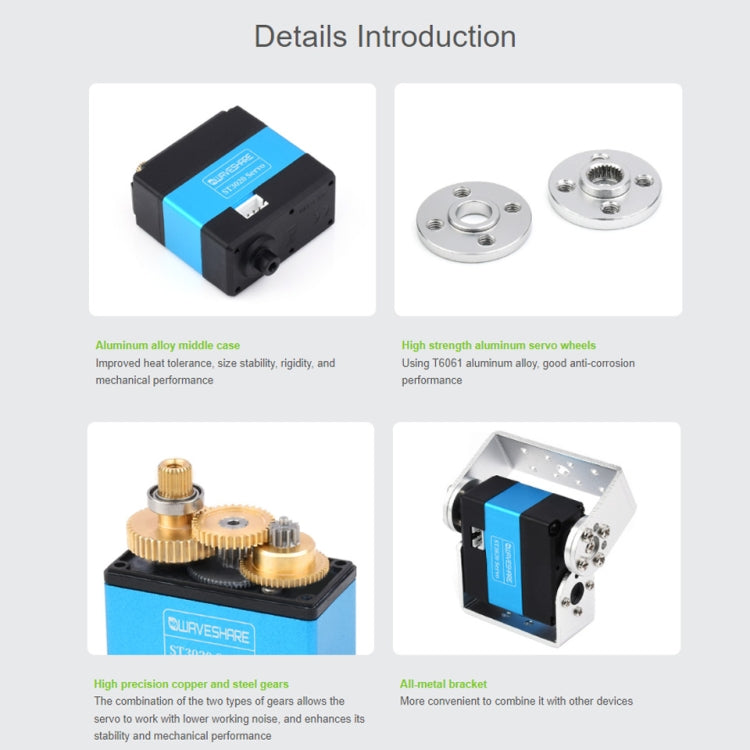

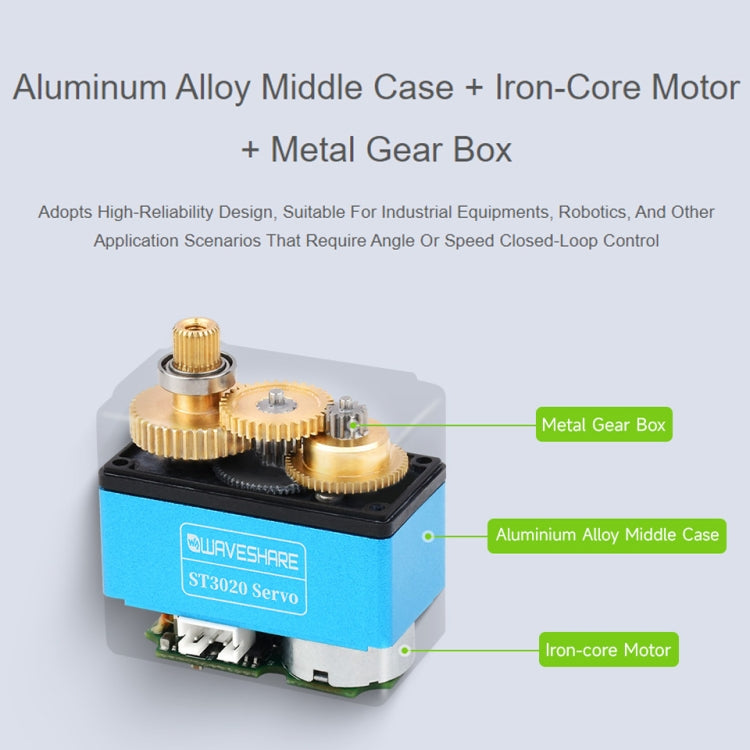

6. Gear: high-precision metal gear
7. No-load speed: 0.167 seconds/60 degrees (60RPM)@12V

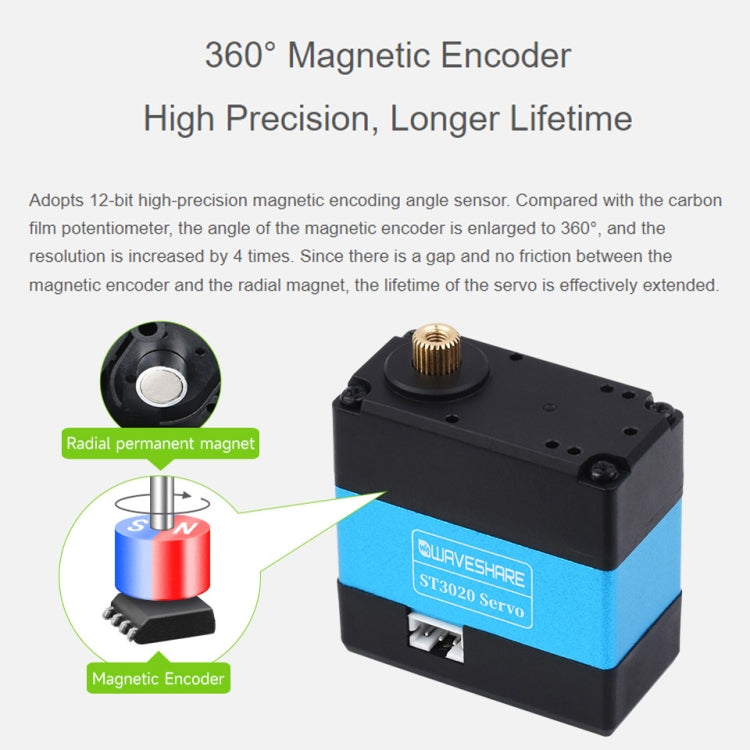

8. Encoder type: 12-bit magnetic encoder

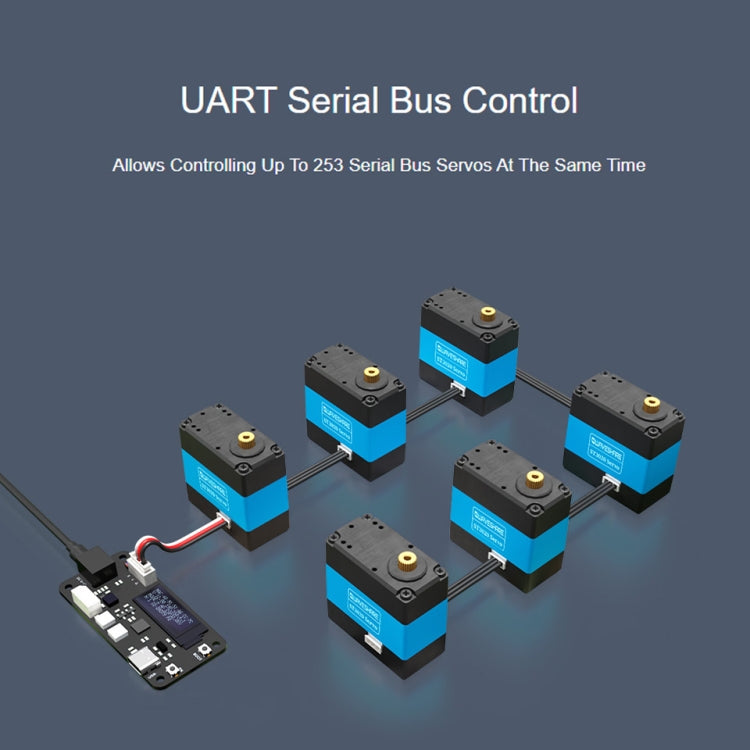

9. ID range: 1-253
10. Baud rate: 38400bps-1Mbps (default 1Mbps)

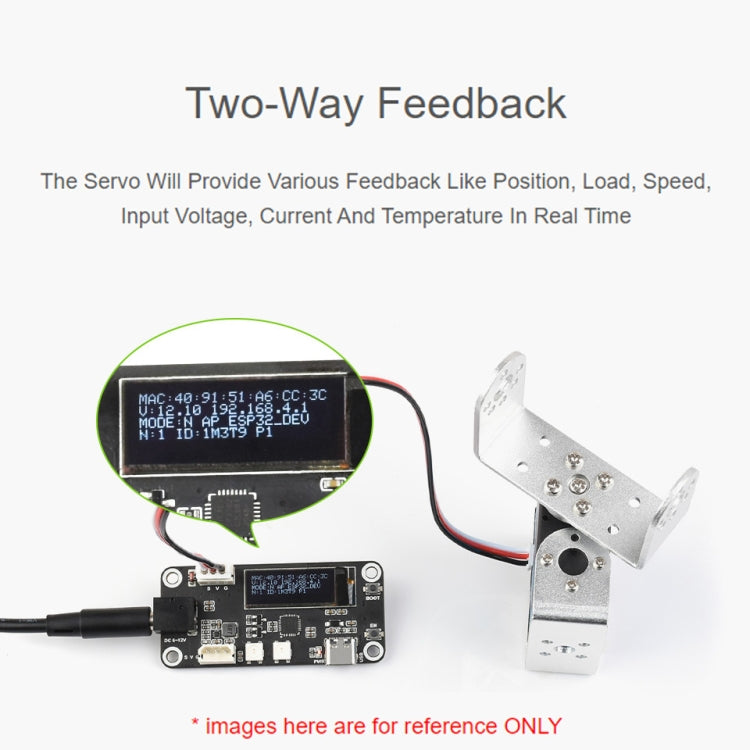

11. Feedback: position, load, speed, input voltage, current, temperature
12. No-load current: 200mA@12V
13. Stalled rotor current: 2.7A@12V
14. KT: 9.26kg.cm/A
15. Weight: 97 grams
