Description

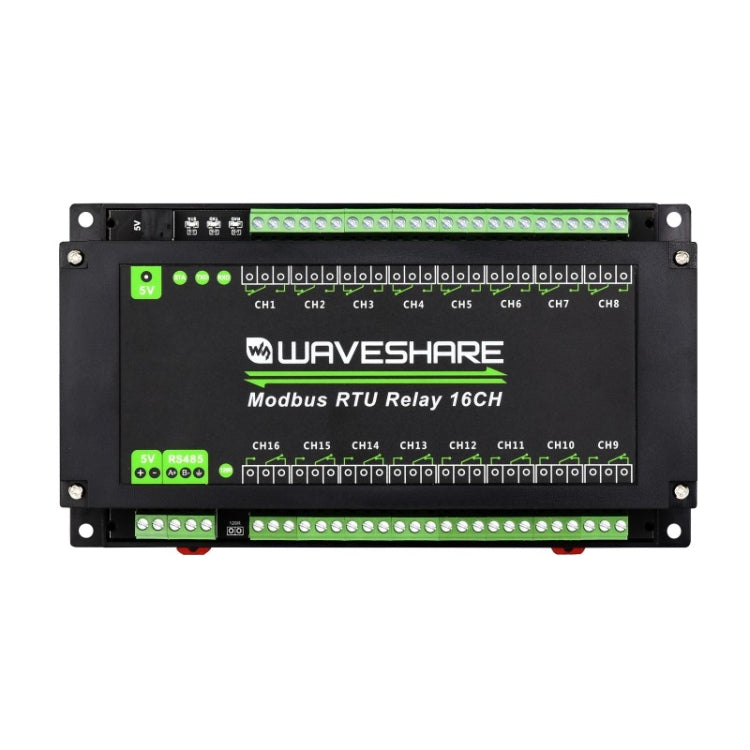

The Waveshare 24921 Modbus RTU 16-Ch Relay Module is an industrial-grade relay module with RS485 interface. It is suitable for industrial control equipment and applications with high communication requirements.
- Product Type: Relay Module
- Compatibility: Modbus RTU 16-Ch Relay Module
- Material: ABS
- Key Feature: Industrial-grade with multiple isolation protection
- Intended Use: Industrial applications
- Communication Protocol: Modbus RTU
- Channels: 16
- Control Interface: RS485

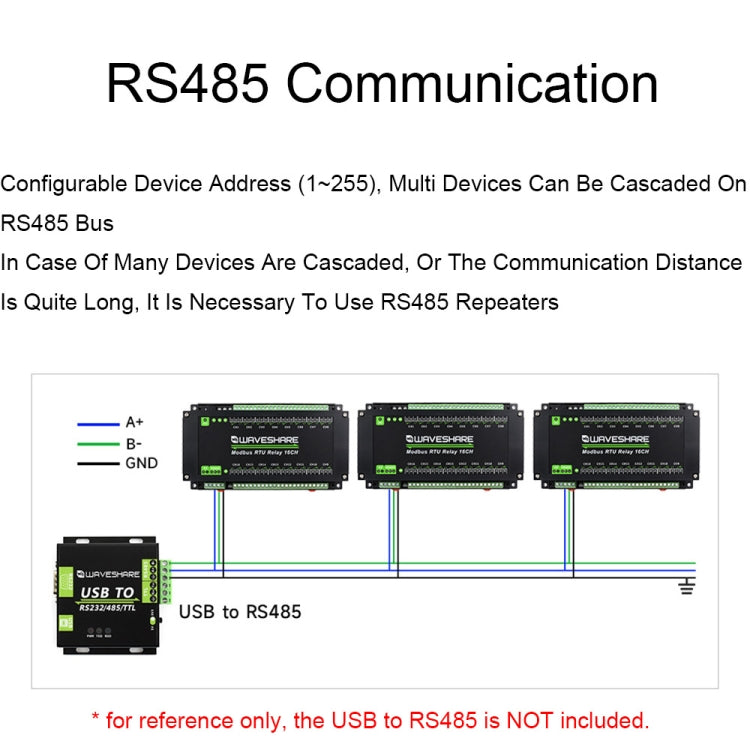

- Device Address Range: 1-255

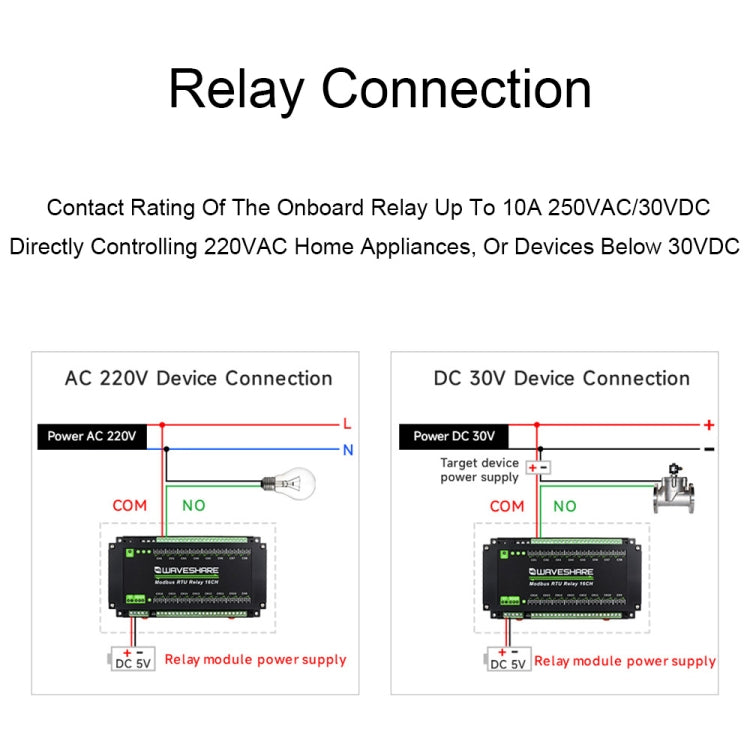

- Relay Contact Rating: ≤10A 250VAC/30VDC
- Power Supply: 5V 2A (US Plug with EU head adapter included)

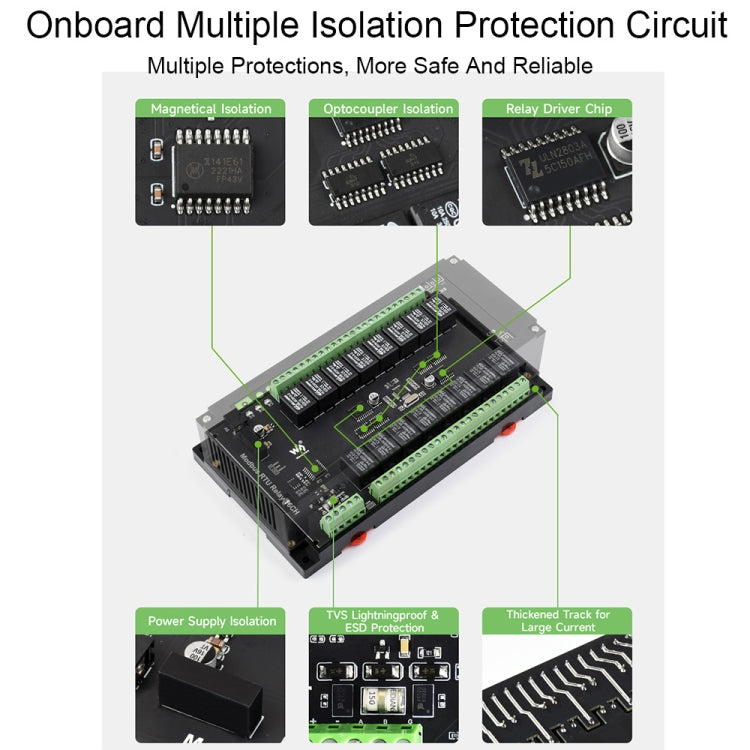

- Protection Features: Built-in power isolation, ADI magnetic isolation, resettable fuse, TVS diode
- Isolation Voltage: Stable isolation voltage, no additional power supply required at isolation end
- Optocoupler Isolation: Prevents interference from high-voltage circuits
- Relay Driver Chip: Dedicated chip with built-in freewheeling diode protection
- Anti-Reverse Connection Circuit: Prevents damage from incorrect connections
- LED Indicators: 3 LEDs for MCU status and signal sending/receiving

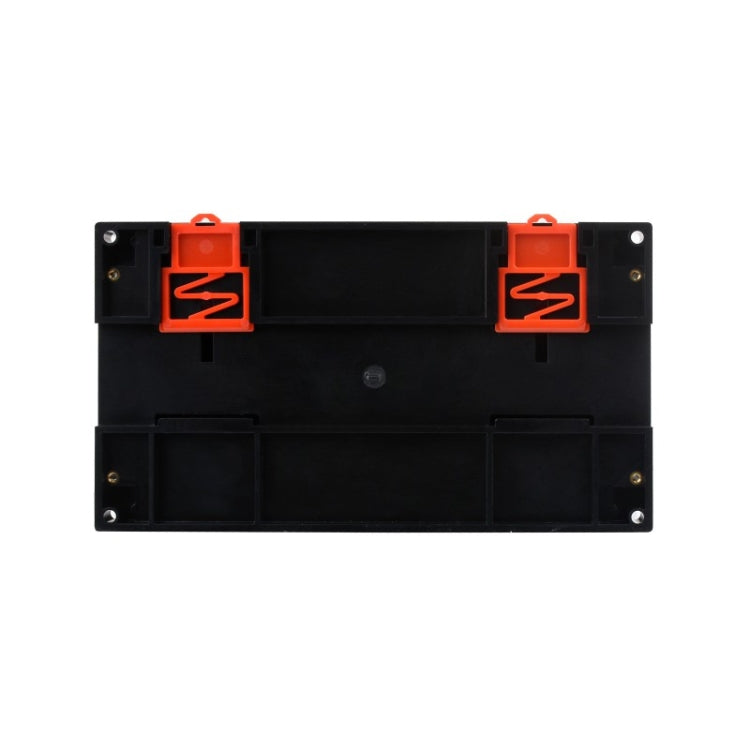

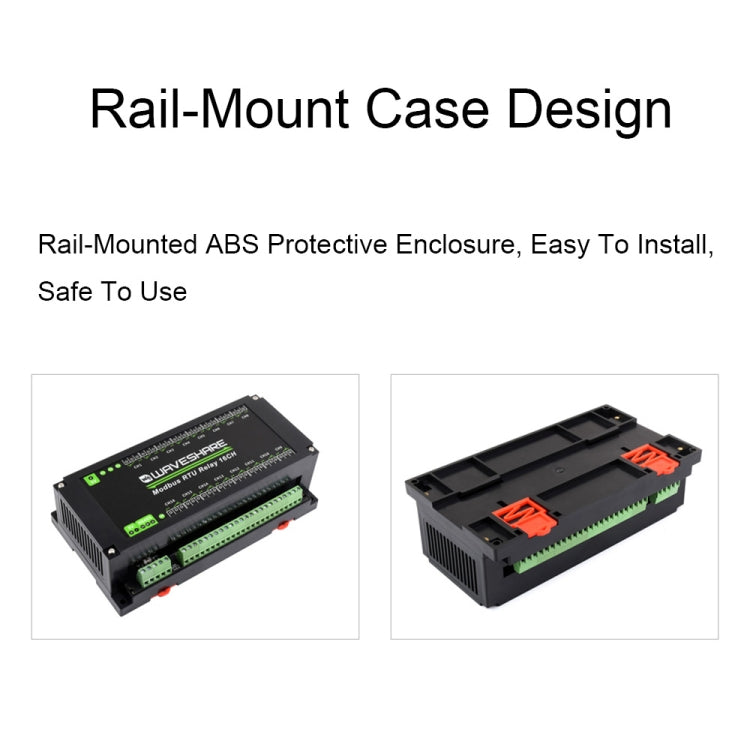

- Installation Type: Rail-type ABS shell, easy to install
