Description

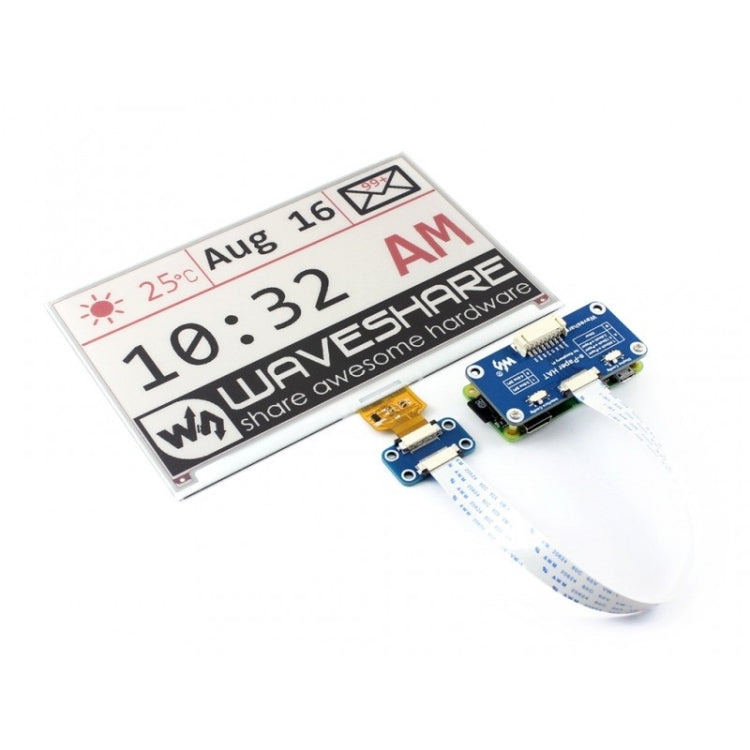

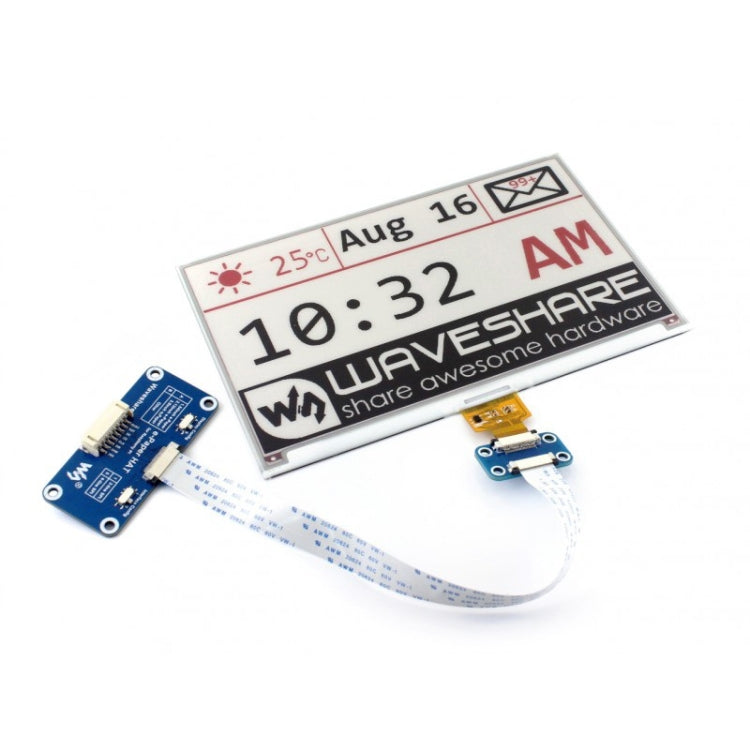

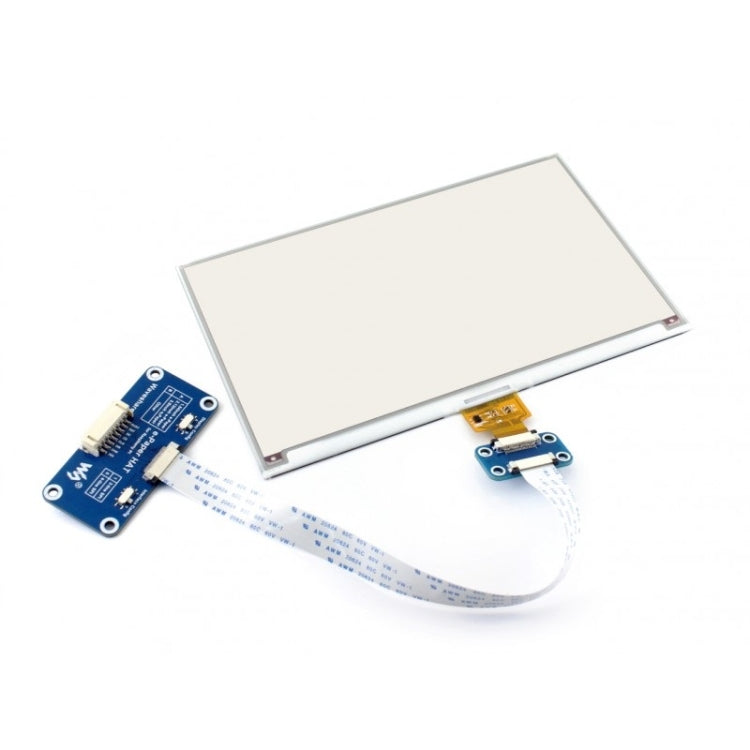

The Waveshare 7.5 inch E-Ink Display HAT is designed for Raspberry Pi and features a three-color display. It is suitable for applications such as shelf labeling and industrial instruments.
- Product Type: E-Ink Display HAT

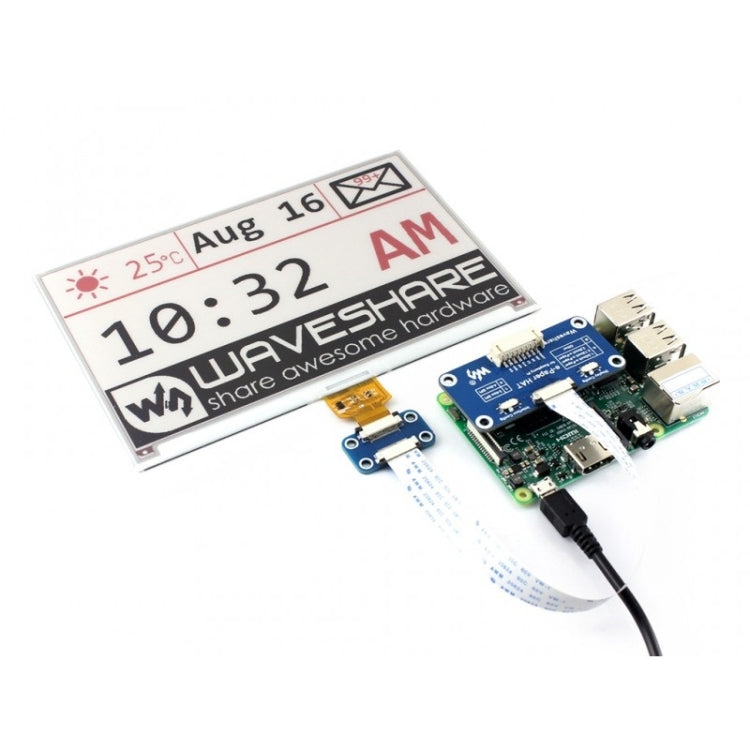

- Compatibility: Raspberry Pi 2B, 3B, 3B+, Zero, Zero W
- Material: Electronic components
- Display Size: 163.2mm x 97.92mm
- Resolution: 640 x 384
- Display Colors: Red, Black, White
- Operating Voltage: 3.3V to 5V
- Interface: SPI
- Outline Dimensions: 170.2mm x 111.2mm
- Dot Pitch: 0.255mm x 0.255mm
- Grey Level: 29
- Full Refresh Time: 16 seconds
- Refresh Power: 38mW (typical)
- Standby Power: <0.017mW
- Viewing Angle: >170 degrees
- Weight: 0.065 kg

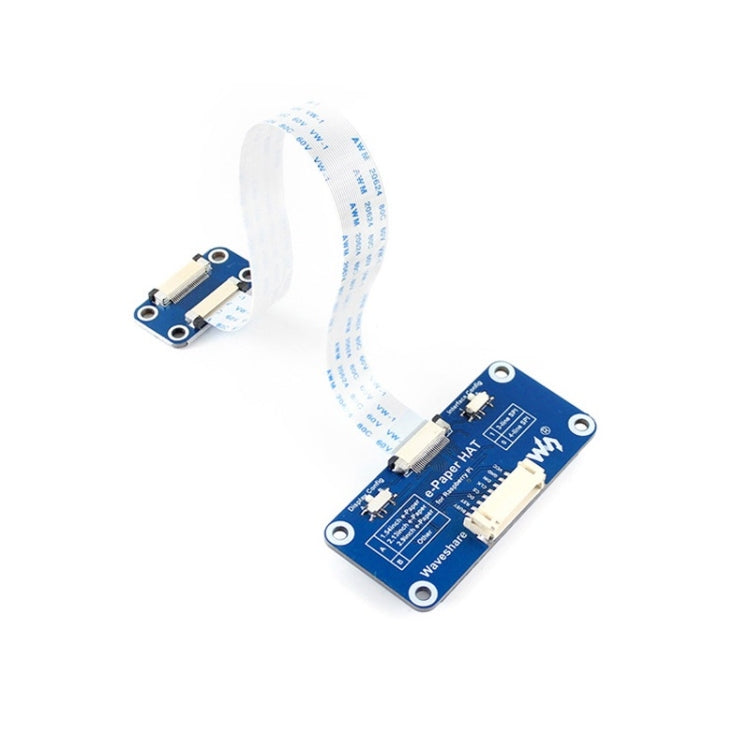

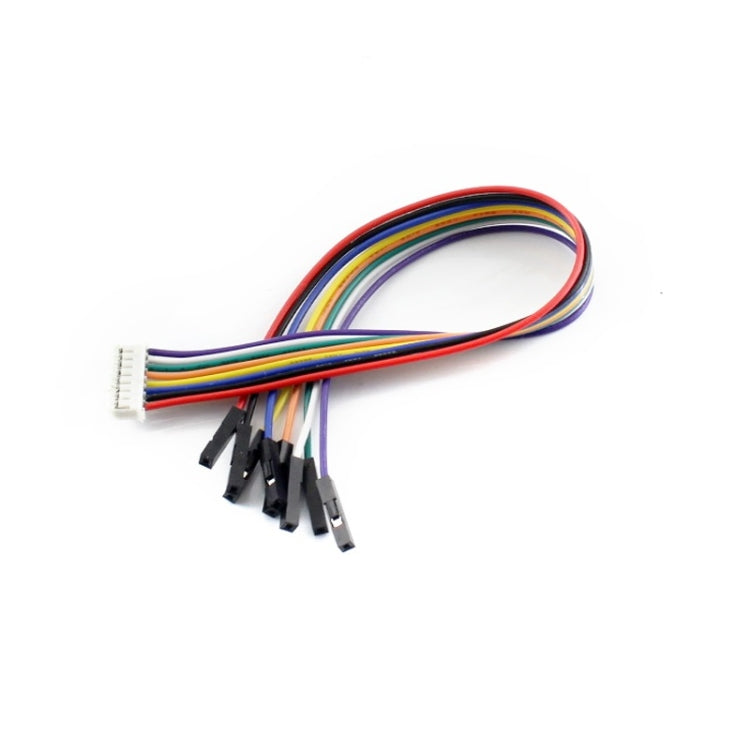

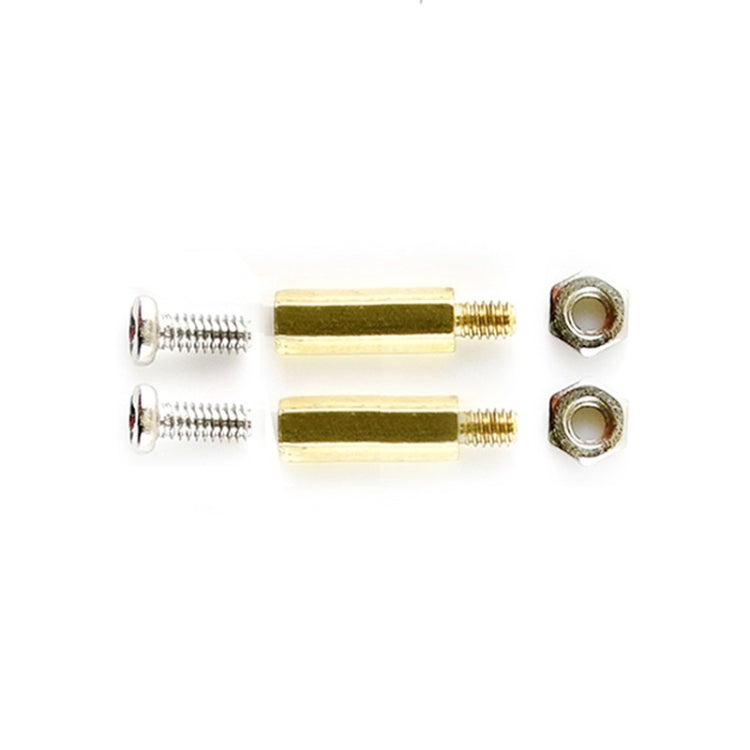

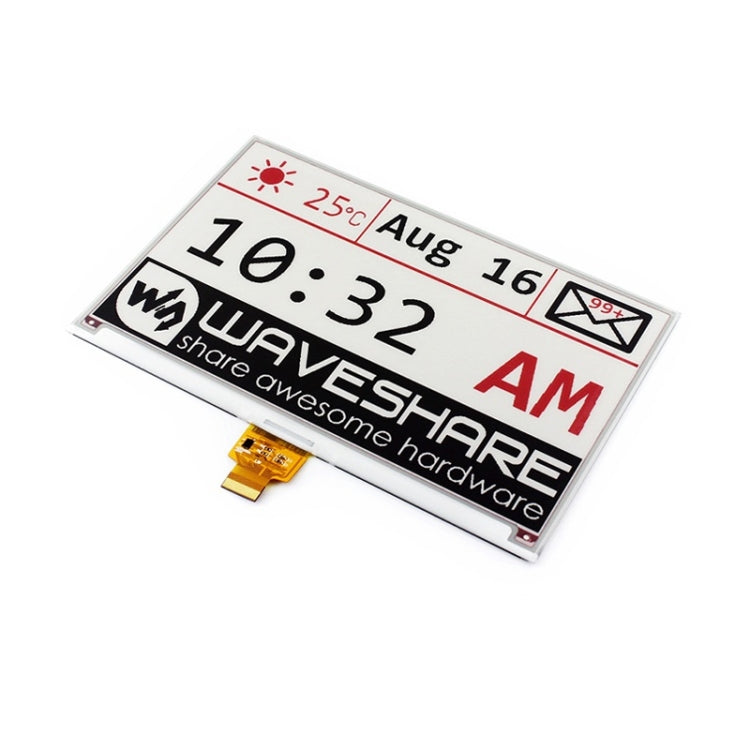

- Package Contents: 7.5 inch e-Paper (B) x1, e-Paper Driver HAT x1, RPi screws pack (2pcs) x1, PH2.0 20cm 8Pin x1
