Description

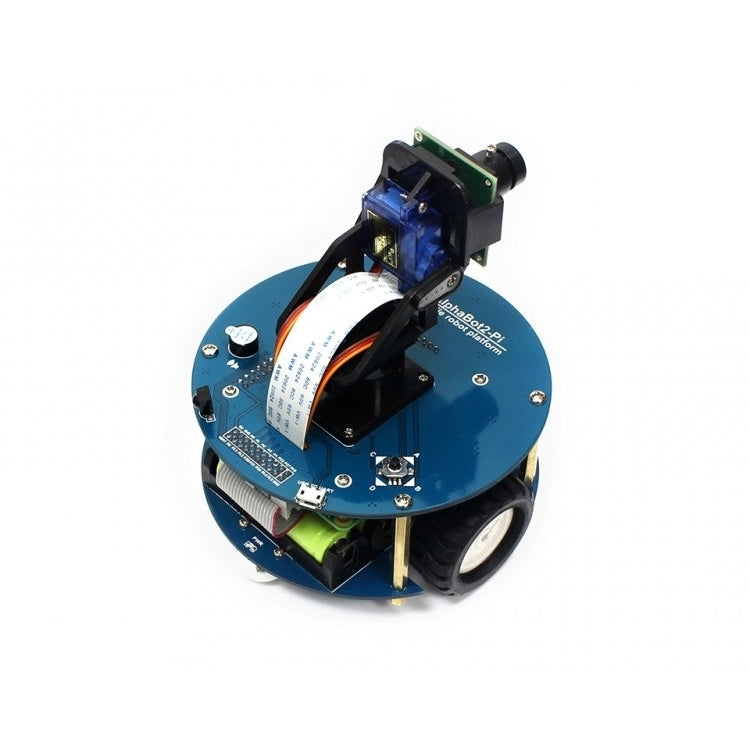

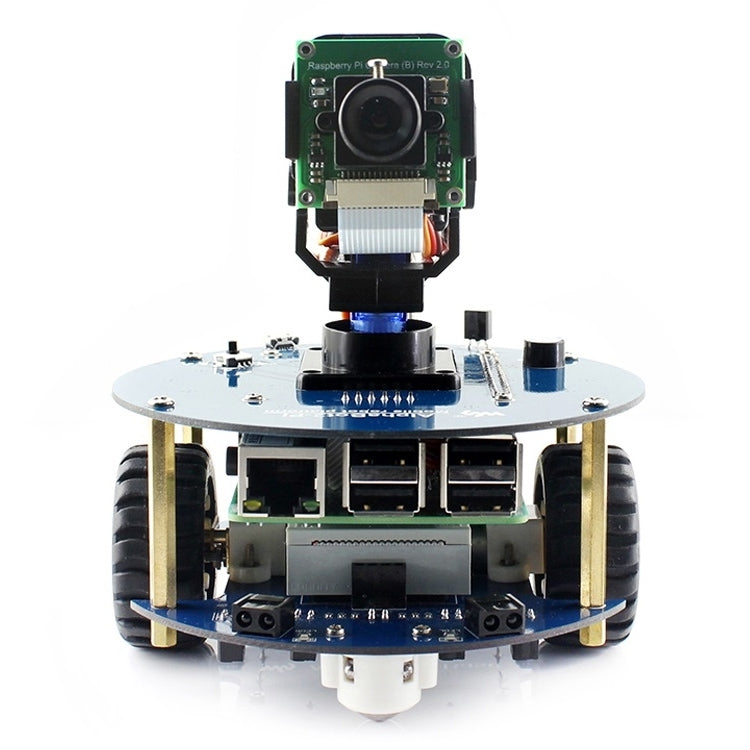

The AlphaBot2 Robot Building Kit is designed for use with the Raspberry Pi 3 Model B. It enables various robotics projects such as line tracking and obstacle avoidance.
- Product Type: Robotics Accessories
- Compatibility: Raspberry Pi 3 Model B
- Material: Not specified

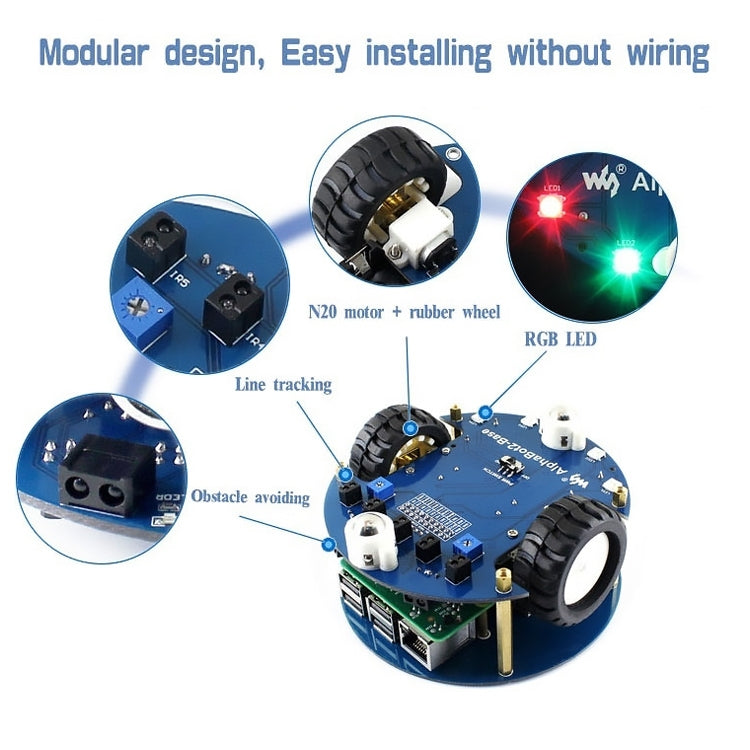

- Key Feature: Modular design for easy assembly

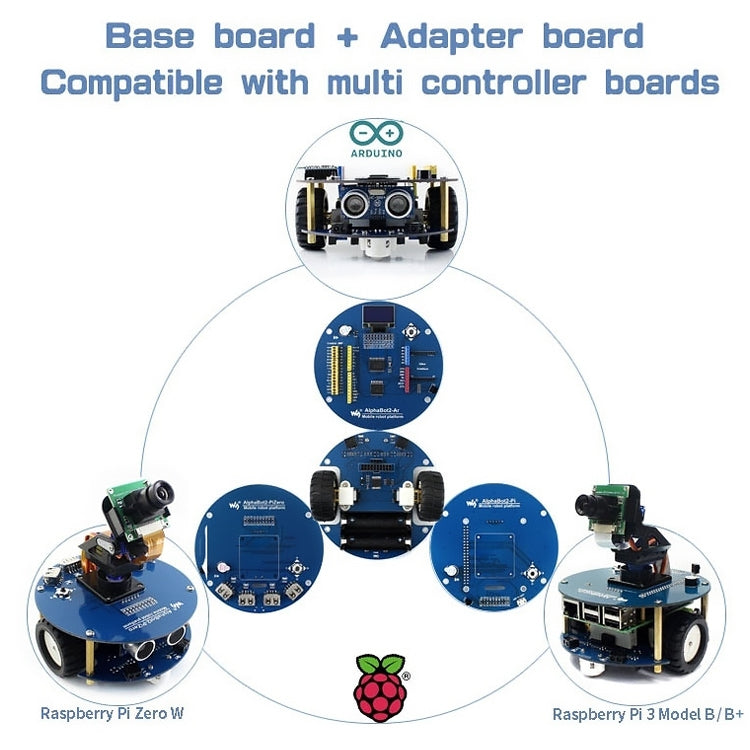

- Structure: 2-layer design for stability and compatibility
- Lower Base Chassis: AlphaBot2-Base
- Infrared Sensor: 5-ch infrared sensor with analog output

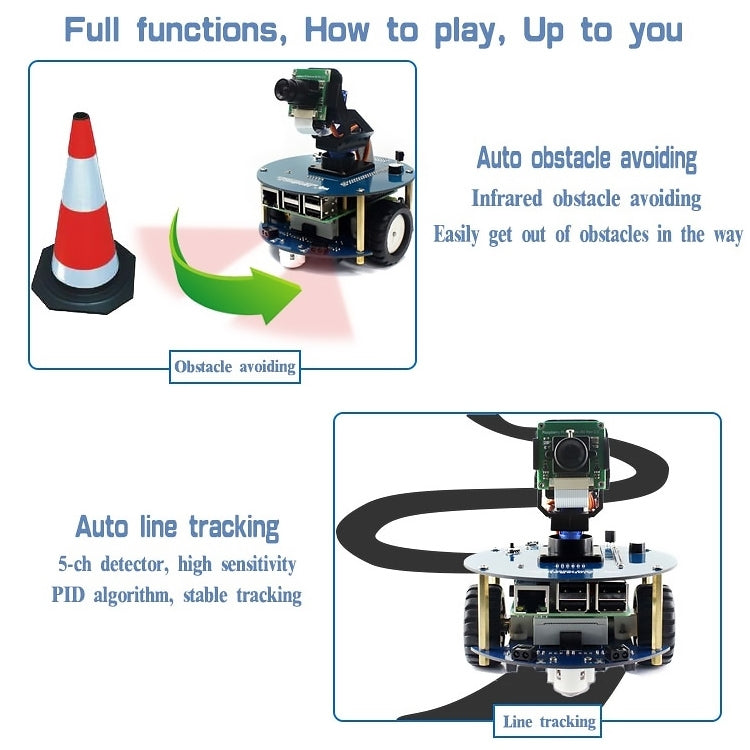

- Line Tracking: Stable line tracking using PID algorithm
- Onboard Modules: Line tracking and obstacle avoiding with no wiring required
- Motor Driver: TB6612FNG dual H-bridge motor driver for efficiency and compactness
- LEDs: 5 onboard RGB LEDs for true color lighting

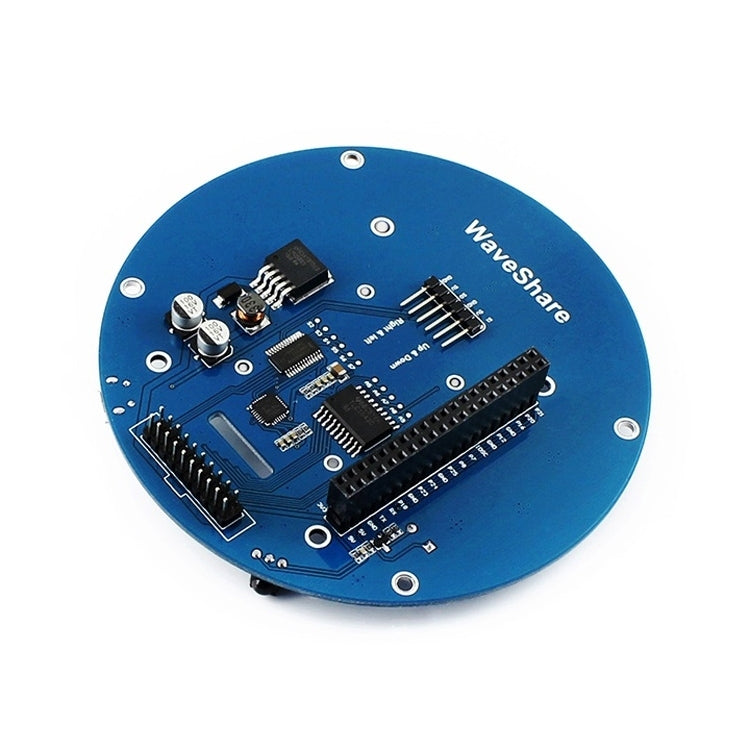

- Upper Adapter Board: AlphaBot2-Pi
- Voltage Regulator: LM2596 voltage regulator for stable 5V power
- AD Acquisition Chip: TLC1543 for analog sensor compatibility
- Servo Controller: PCA9685 for smooth pan head rotation
- UART Converter: CP2102 for UART control of the Raspberry Pi
