Description

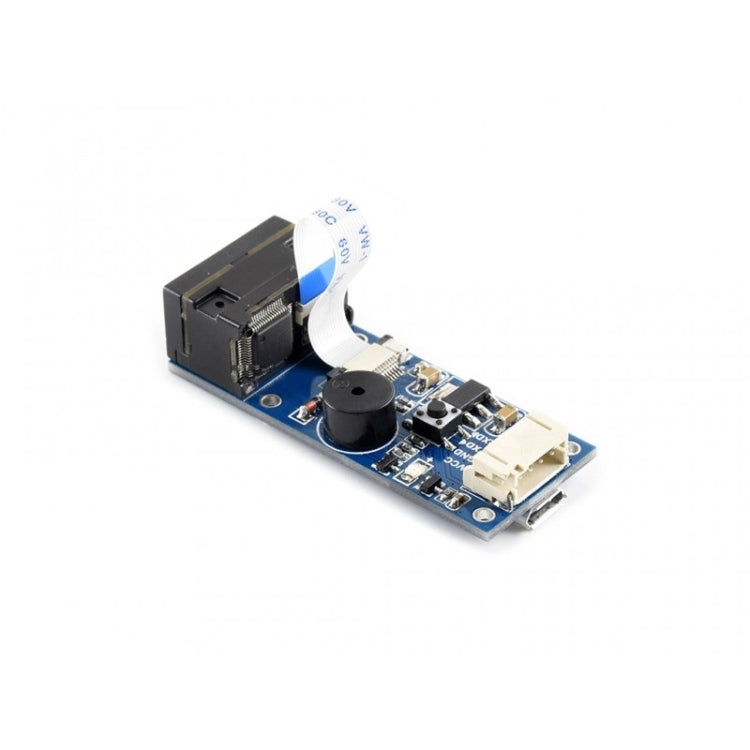

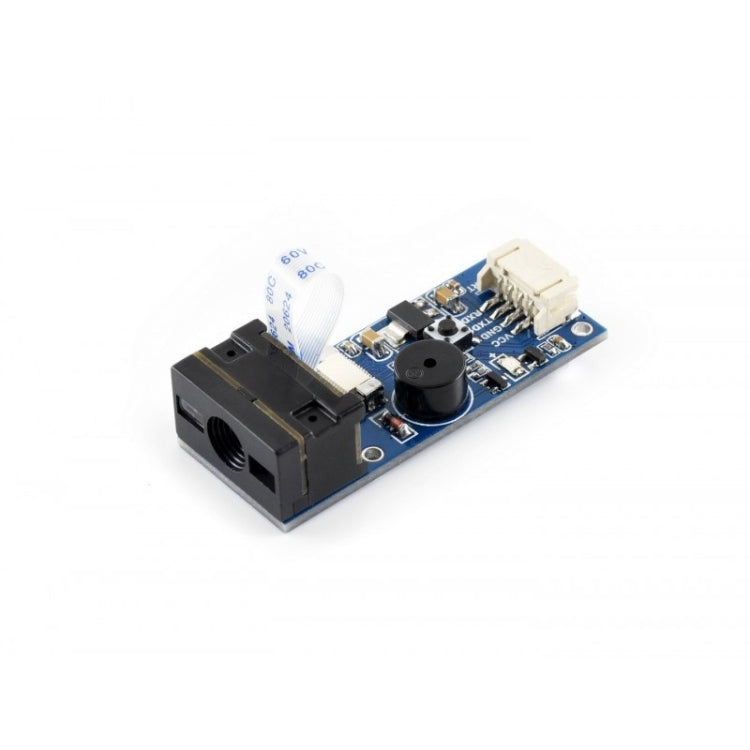

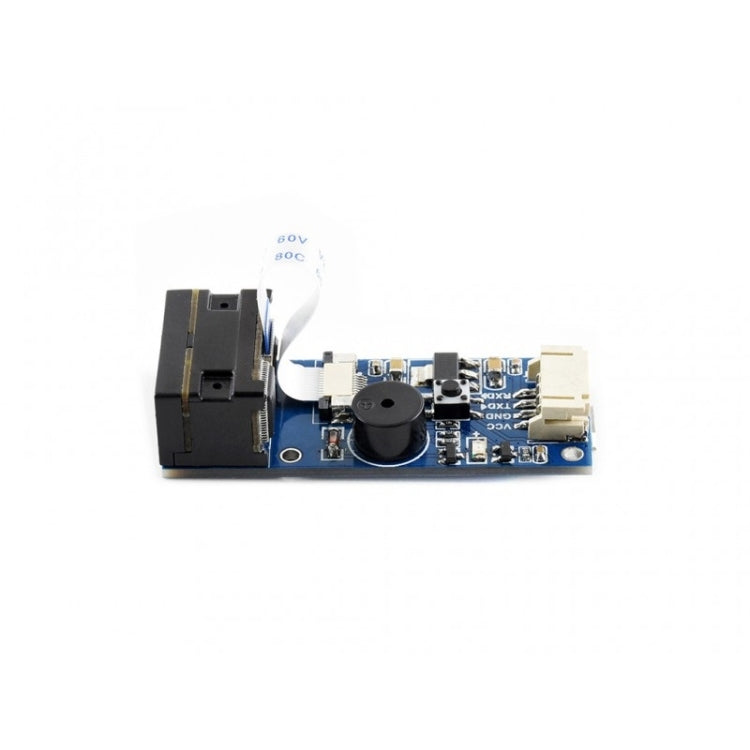

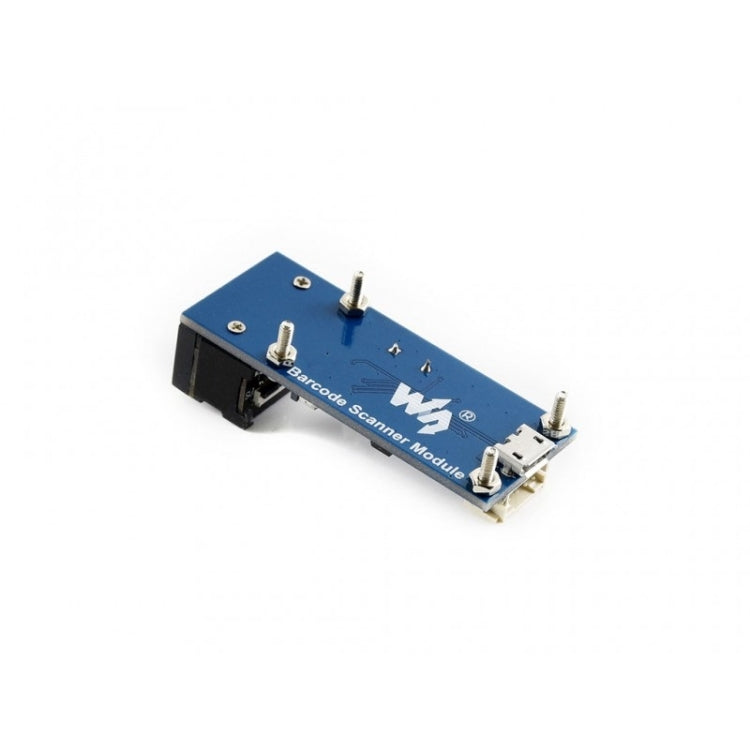

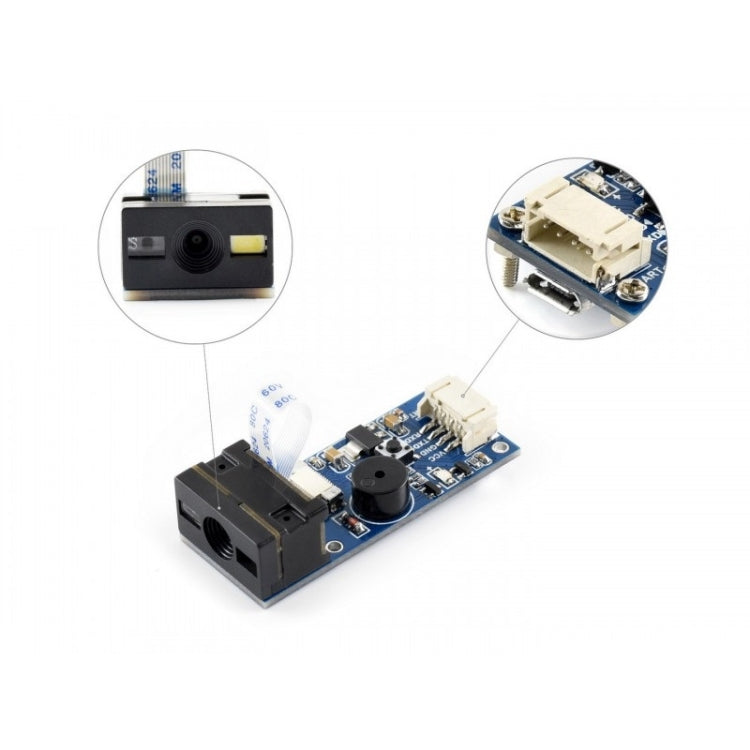

The Waveshare Barcode Scanner Module is a 1D/2D codes reader designed for everyday use. It decodes barcodes and 2D codes on paper or screens quickly and accurately, making it suitable for various applications such as inventory management and point-of-sale systems.
- Product Type: Modules Expansions Accessories
- Compatibility: 1D/2D codes
- Material: Not specified
- Key Feature: Intelligent image recognition
- Color/Variant: Not specified
- Operating Voltage: 5V
- Operating Current: 135mA (scanning), 58mA (standby), 2mA (sleep)
- Operating Temperature: 0°C~60°C
- Operating Humidity: 5%~95% (Non-condensing)
- Communication Interface: UART, USB
- Decodes 1D Codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
- Decodes 2D Codes: QR code, Data Matrix, PDF417
- Light Source: White
- Scan Angles: Roll 360°, Skew ±65°, Pitch ±60°
- Field of View: 28° (horizontal), 21.5° (vertical)
- Dimensions: 53.3mm x 21.4mm
- Package Contents: Barcode Scanner Module x1, USB type A plug to micro B plug cable x1, PH2.0 4Pin x1
