Description

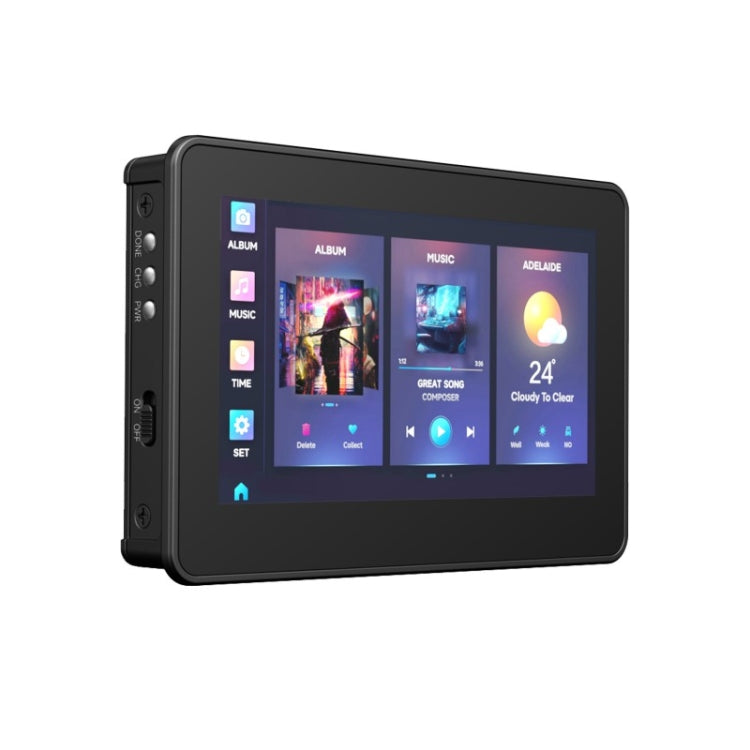

The Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board is a development board featuring a capacitive touch LCD. It is suitable for HMI and GUI development applications.

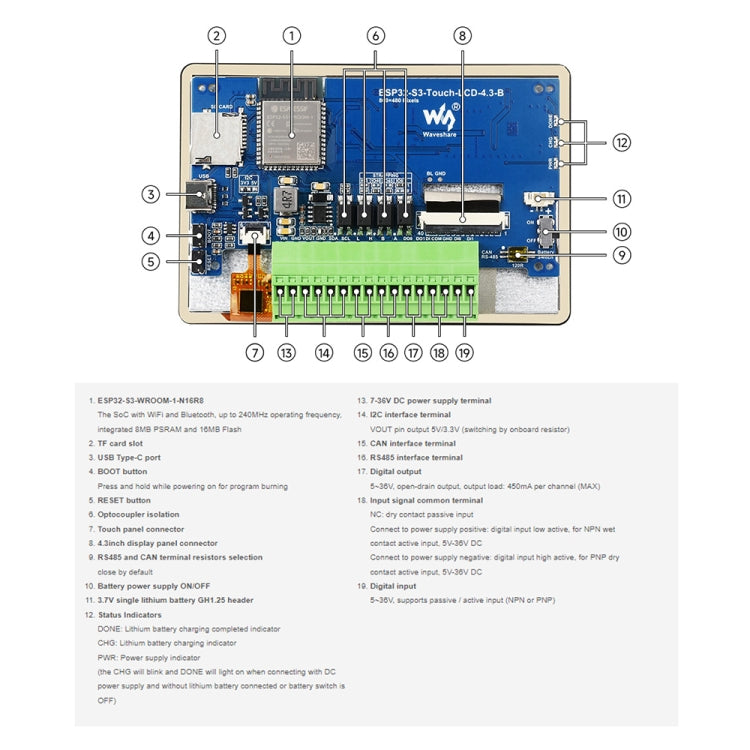

- Processor: Xtensa32-bit LX7 dual-core, up to 240MHz
- Wi-Fi: 2.4 GHz (802.11b/g/n)
- Bluetooth: 5 (LE), onboard antenna
- Memory: 512 KB SRAM, 384 B ROM, 16 MB Flash, 8 MB PSRAM

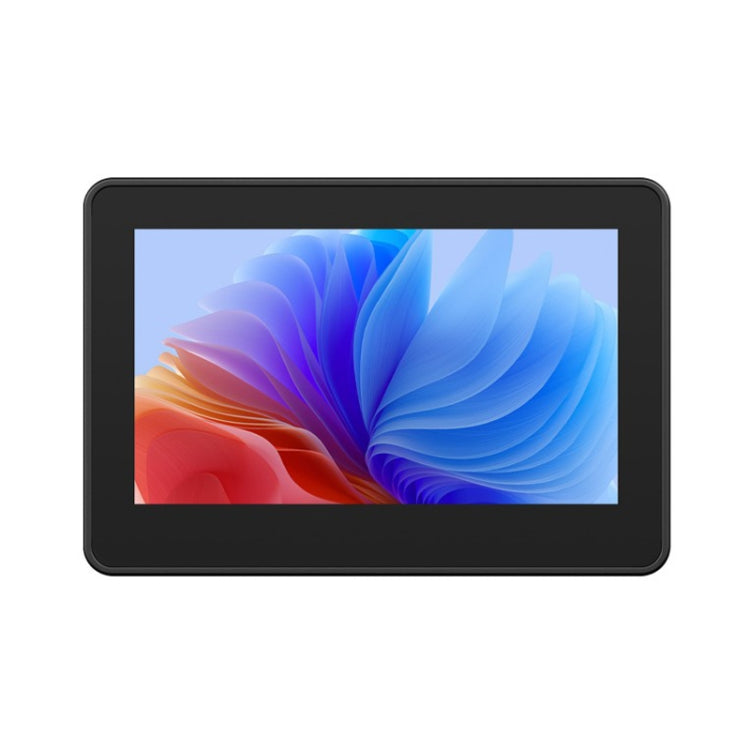

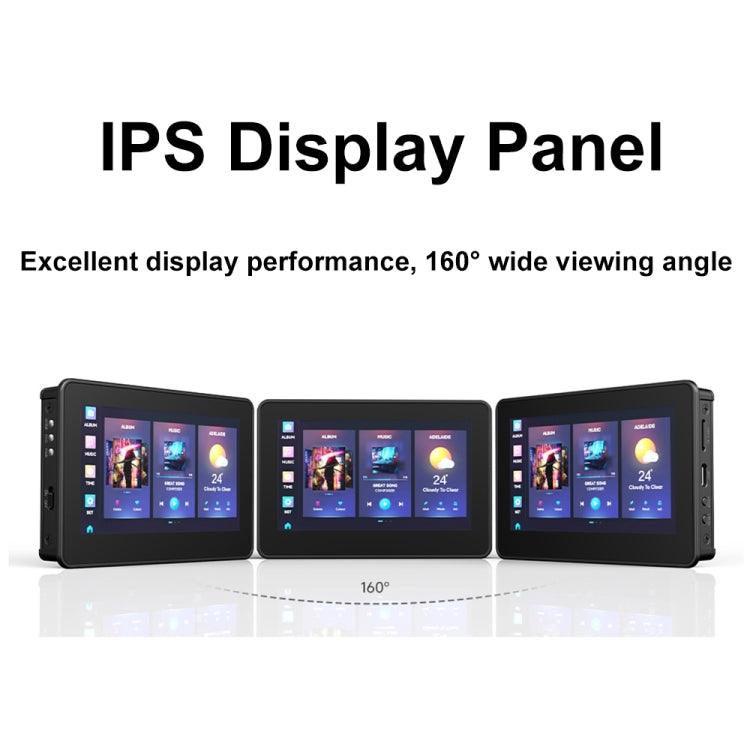

- Display: 4.3-inch LCD, 800×480 resolution, 65K colors

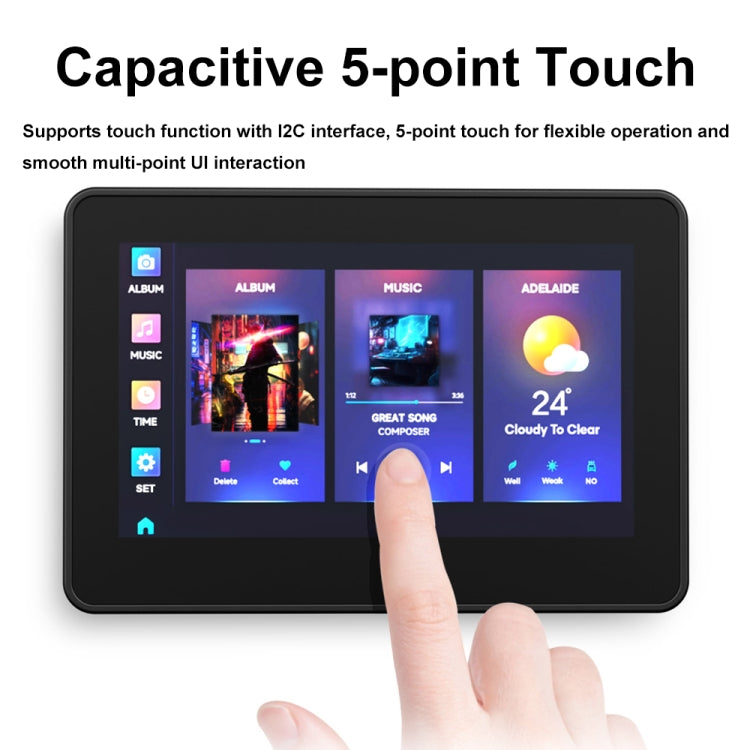

- Touch: Capacitive, 5-point touch, I2C interface
- Voltage Supply: 7-36V wide voltage support
- RTC: Onboard RTC chip with rechargeable battery

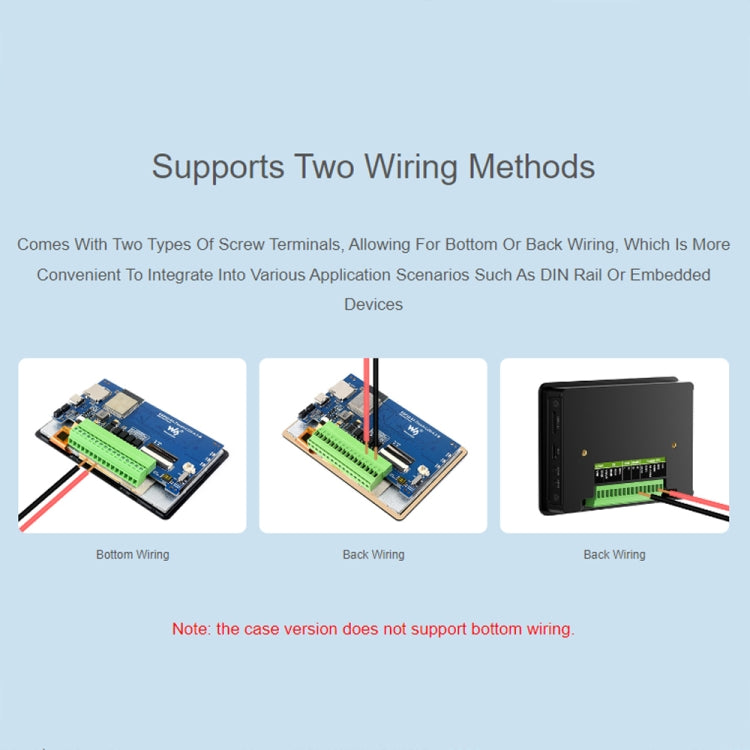

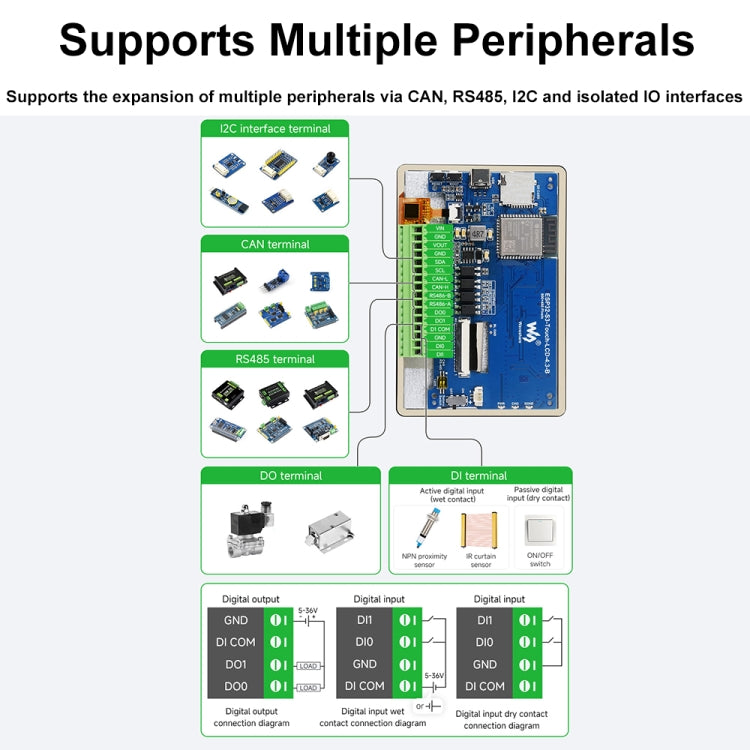

- Interfaces: CAN, RS485, I2C, Micro SD card holder

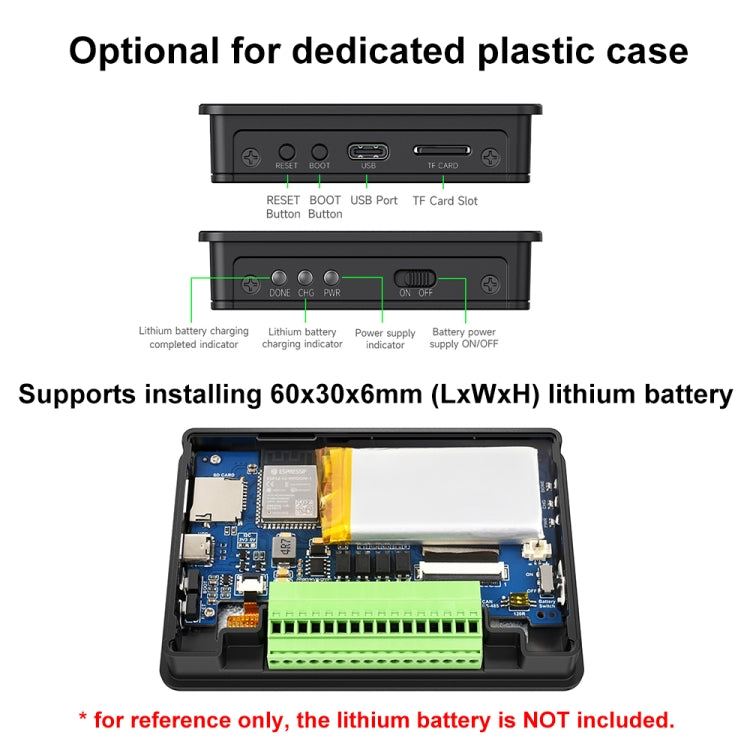

- Battery Interface: GH1.25 2P
- Input: Bidirectional optocoupler isolation
- Output: Optocoupler isolation, sink current up to 450mA (MAX)
- LED Indicator: External for power and battery status
- Clock Control: Flexible clock and module power settings

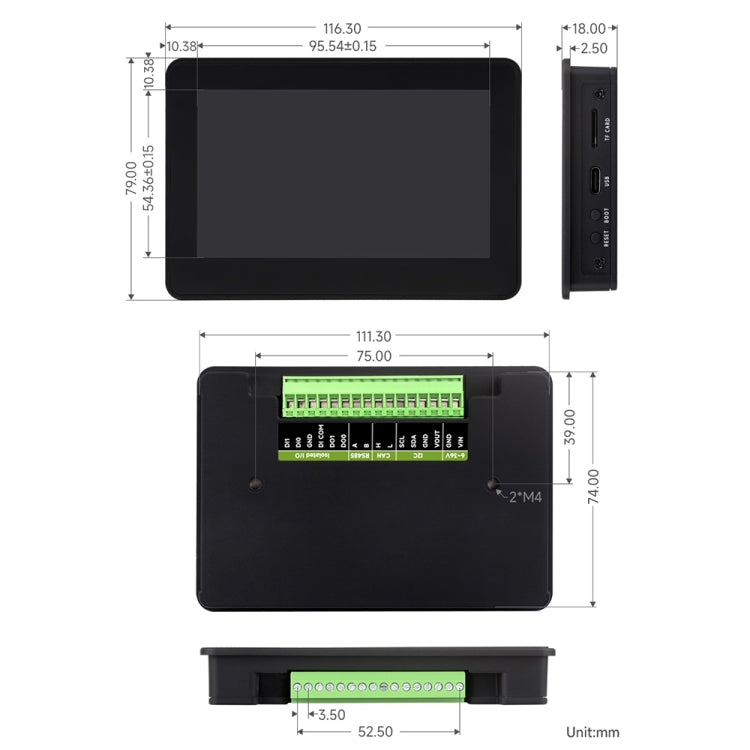

- Product Size: 112.4 x 75.1 x 17.4mm, 116.3 x 79 x 18mm
- Weight: 115g, 149g
- Application Areas: HMI, LVGL GUI development
