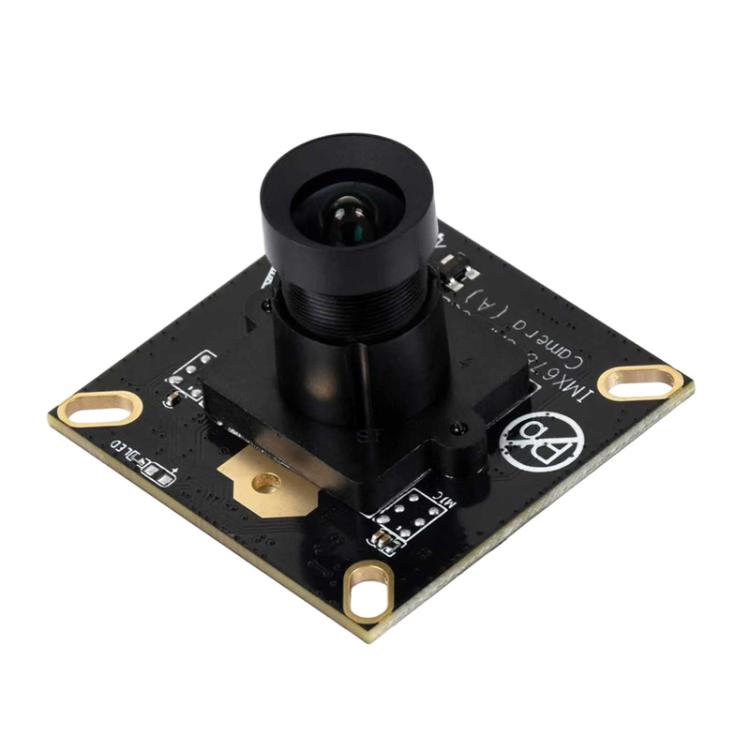

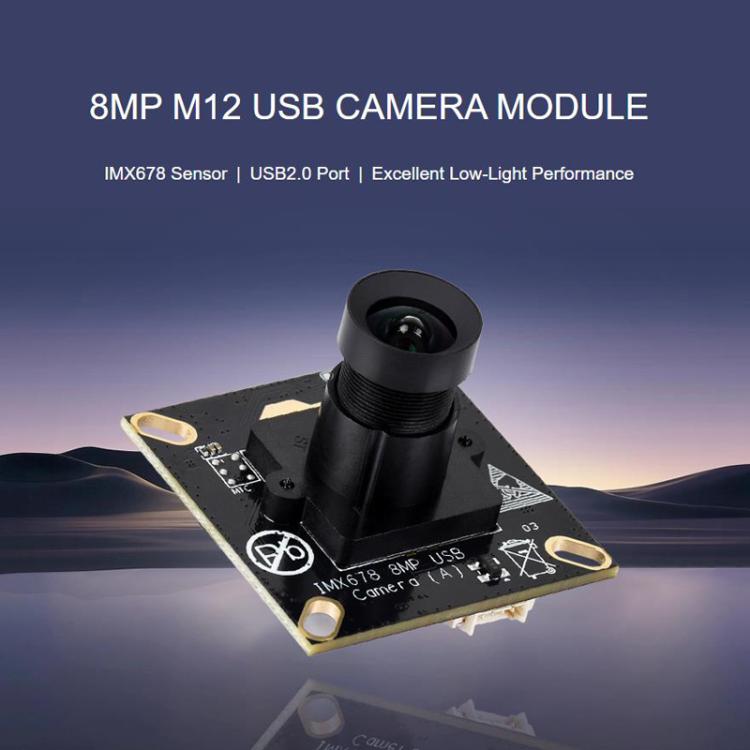

WAVESHARE IMX678 8MP 8MP M12 USB Camera Module

The WAVESHARE IMX678 8MP M12 USB Camera Module is a USB camera module designed for everyday use. It is suitable for applications requiring high-resolution imaging, such as video conferencing and surveillance.

• Product Type: Camera Module
• Pixel: 8 million
• Sensor Chip: IMX678
• Interface Type: USB 2.0
• Sensor Size: 1/1.8 inch
• Aperture (F): 2.4
• Focal Length (EFL): 4.2mm
• Field of View (FOV): 93 degrees (D), 86 degrees (H), 55 degrees (V)
• Focus Mode: Fixed focus
• Aberration: Less than -1.2%
• Infrared Filter: 650nm filter
• Shutter Mode: Rolling shutter
• Supported Formats: MJPG, YUY2
• Still Picture Resolution: 3840 x 2160
• MJPG Frame Rates: 30FPS at 3840 x 2160, 30FPS at 2880 x 2160, 30FPS at 2048 x 1536, 30FPS at 1920 x 1080, 30FPS at 1600 x 1200, 30FPS at 1280 x 960, 30FPS at 1280 x 720, 30FPS at 800 x 600, 30FPS at 640 x 480
• YUY2 Frame Rates: 1.5FPS at 3840 x 2160, 1.5FPS at 2880 x 2160, 3.75FPS at 2048 x 1536, 3.75FPS at 1920 x 1080, 5FPS at 1600 x 1200, 7.5FPS at 1280 x 960, 10FPS at 1280 x 720, 10FPS at 1024 x 768, 20FPS at 800 x 600, 20FPS at 640 x 480
• Operating Voltage: 5V +/- 5%
• Operating Current: 250mA

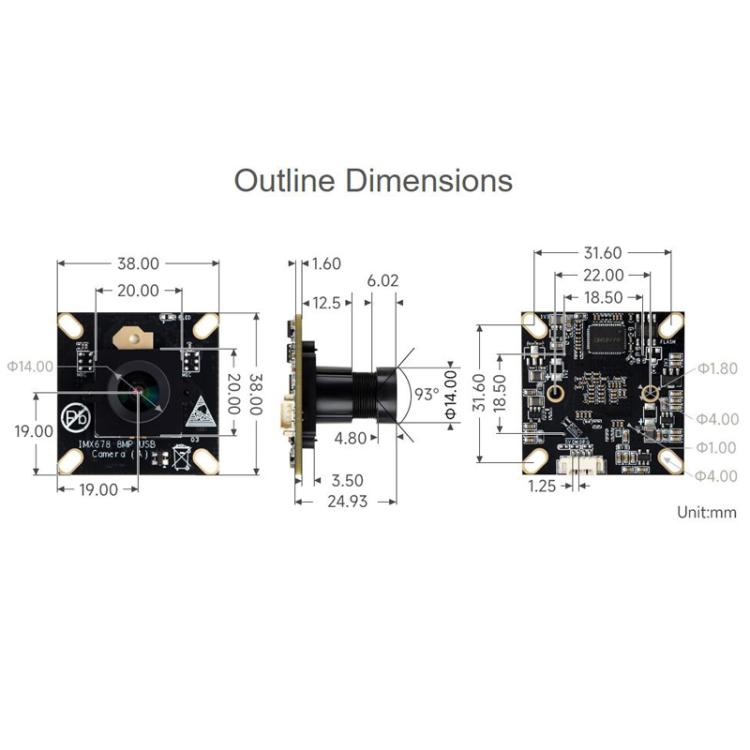

• Size: Approximately 3.8 x 3.8 x 2.5 cm
