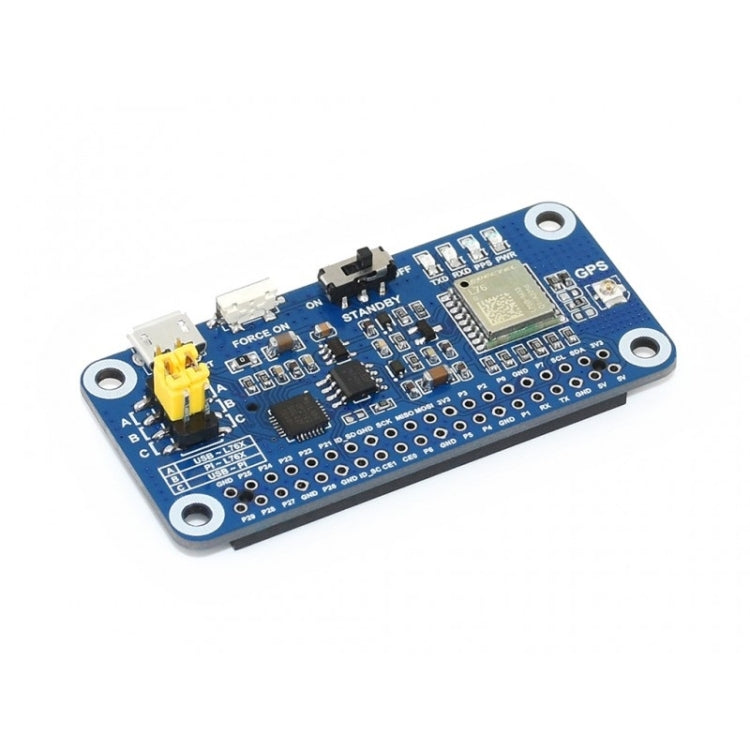

The Waveshare L76X Multi-GNSS HAT is a module designed for Raspberry Pi that supports GPS, BDS, and QZSS systems. It is suitable for applications such as vehicle tracking, asset tracking, and GIS projects.
- Product Type: Module Expansion Accessory
- Compatibility: Raspberry Pi
- Material: Not specified
- Key Features: Supports GPS, BDS, QZSS
- Communication Interface: UART
- Baud Rate: 4800~115200bps (9600bps by default)
- Update Rate: 1Hz (default), 10Hz (max)
- Protocols: NMEA 0183, PMTK
- Power Supply Voltage: 5V / 3.3V
- Operating Current: 13mA
- Operating Temperature: -40°C to 85°C
- Dimensions: 65mm x 30.5mm
- GNSS Specifications:
- Band: GPS L1 (1575.42MHz), BD2 B1 (1561.098MHz)
- Channels: 33 tracking channels, 99 acquisition channels, 210 PRN channels
- C/A Code: Yes
- SBA: WAAS, EGNOS, MSAS, GAGAN
- Horizontal Position Accuracy: <2.5m CEP
- Time-To-First-Fix @ -130dBm (EASY enabled):
- Cold Starts: <15s
- Warm Starts: <5s
- Hot Starts: <1s
- Sensitivity:
- Acquisition: -148dBm
- Tracking: -163dBm
- Re-acquisition: -160dBm
- Dynamic Performance:
- Max Altitude: 18000m
- Max Velocity: 515m/s
- Max Acceleration: 4G
- Onboard Components:
- L76B module
- CP2102: USB to UART converter
- CAT24C32: EEPROM
- RT9193-33: Power manager
- Backup mode wakeup button
- Standby switch
- Indicators: RXD/TXD, PPS, PWR
- Raspberry Pi GPIO connector
- USB to UART port
- GNSS antenna connector
- Battery holder for ML1220 rechargeable battery
- UART selection jumpers
- Package Contents:
- L76X GPS HAT x1
- GPS External Antenna (B) x1
- USB Type A plug to micro plug cable x1
- RPi screws pack (2pcs) x1
- 2x20PIN pinheader x1
