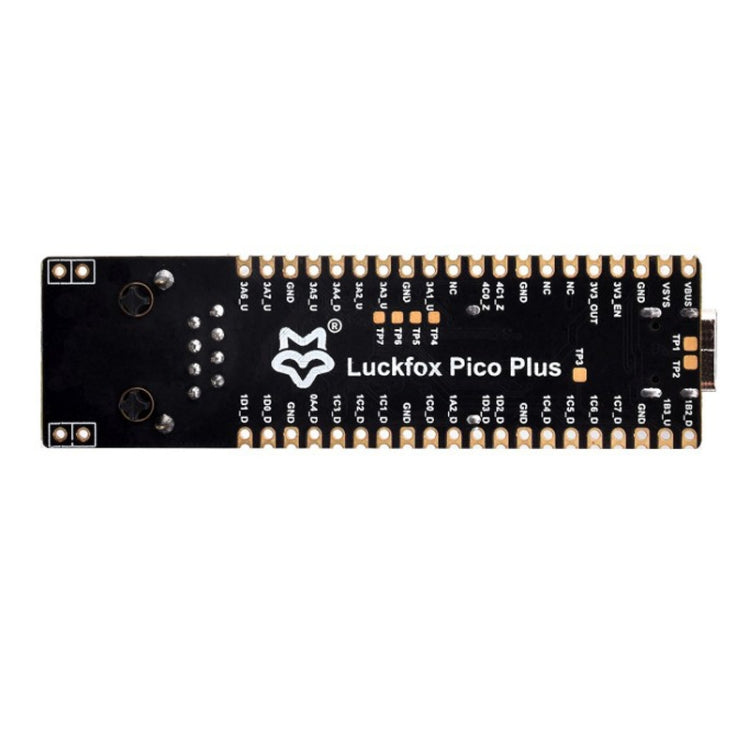

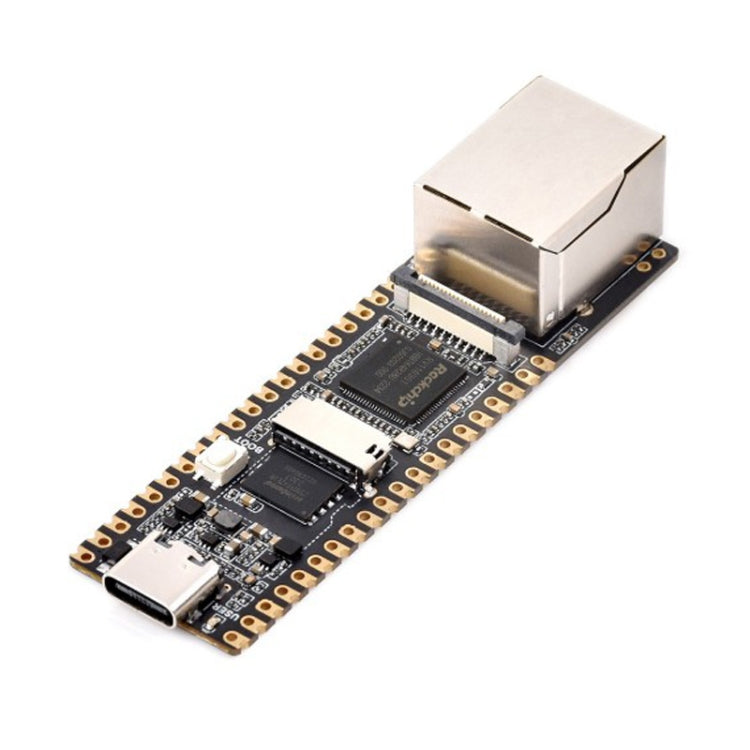

Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header

Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header

Sale Sold out Pre-order

R 399.00

R 399.00

Ships in 1-3 Days

Estimated delivery:

Ships from China • Import tax and duties included

SKU: TBD0600692102

Shipping Origin: China

Shipping Included Overseas 6-13 bus days 6-Month Warranty 7-Day Returns

Description

The Waveshare LuckFox Pico Plus RV1103 is a Linux micro development board designed for embedded applications. It is suitable for projects requiring image processing and AI functionalities.

Processor: Cortex A7 @ 1.2GHz
RISC-V MCU for low power consumption and fast startup
NPU: 0.5 TOPS, supports int4, int8, int16 mixed quantization
ISP: Supports 4 megapixels, HDR, WDR, and multi-level noise reduction
Memory: 64MB DDR2
USB: USB 2.0 host/device
Camera: MIPI CSI 2-lane
GPIO: 25 GPIO pins
Ethernet: 10/100M Ethernet controller with embedded PHY
Storage: SPI NAND FLASH (128MB)
Product dimensions: 72 x 21 mm
Weight: 13g
Integrated audio codec and MAC PHY
Fast image capture in 250ms
Intelligent encoding mode for efficient bit rate management
