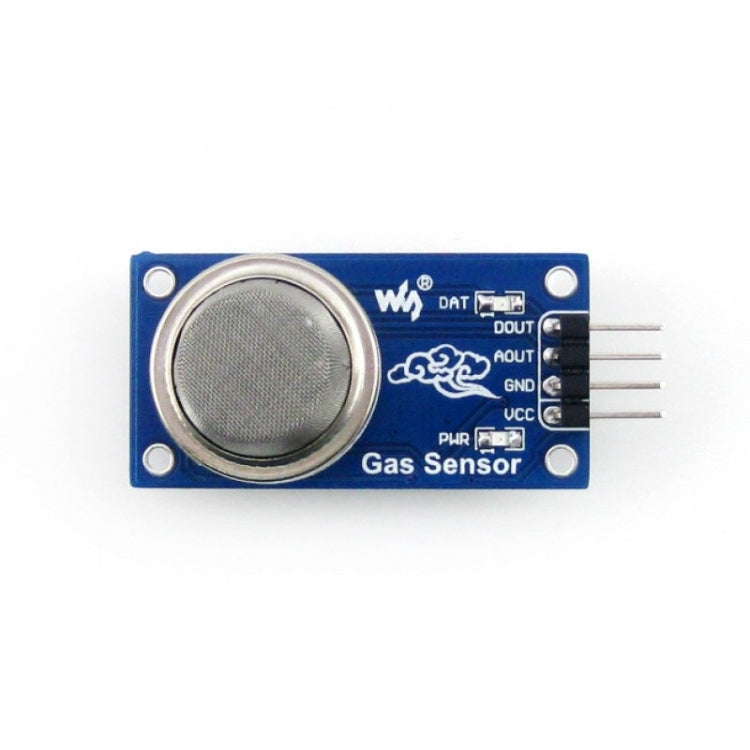

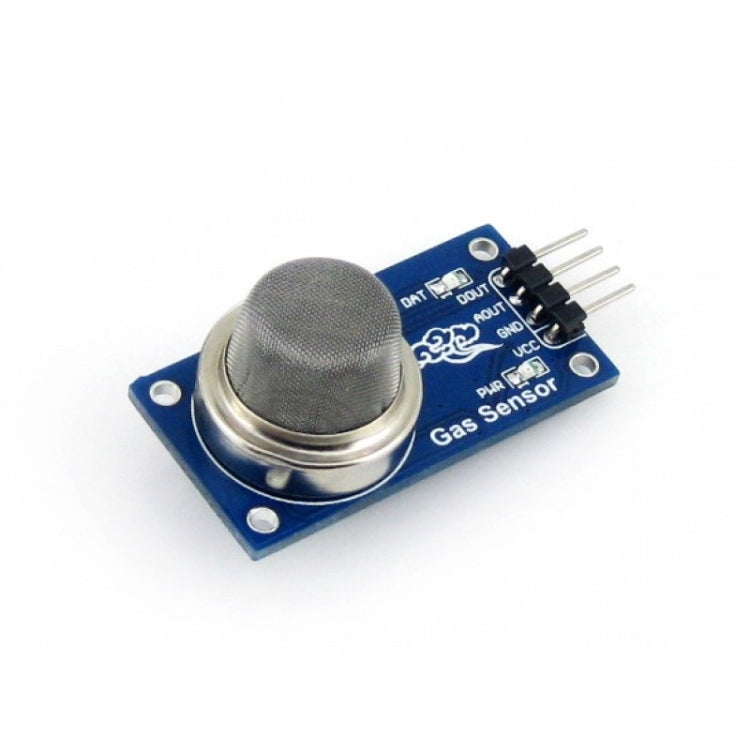

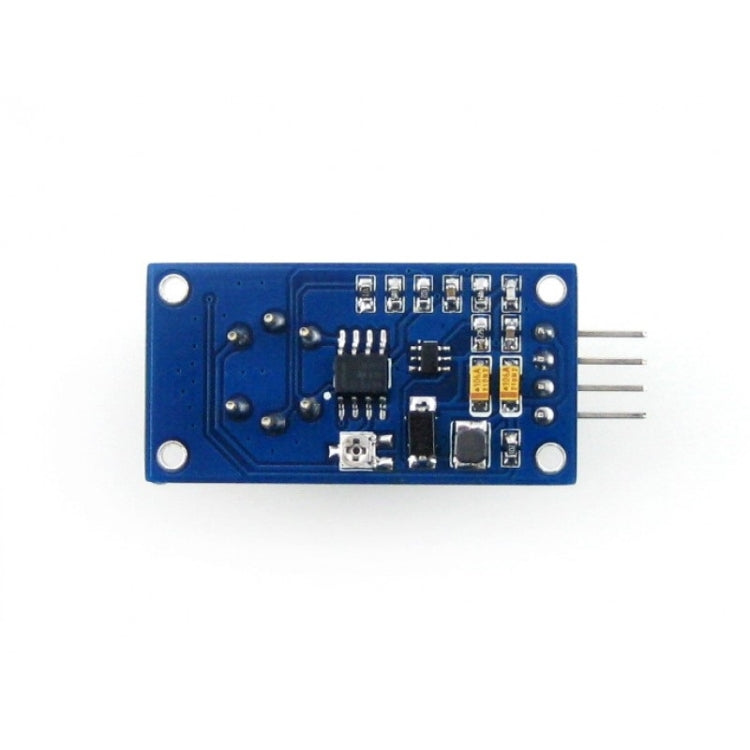

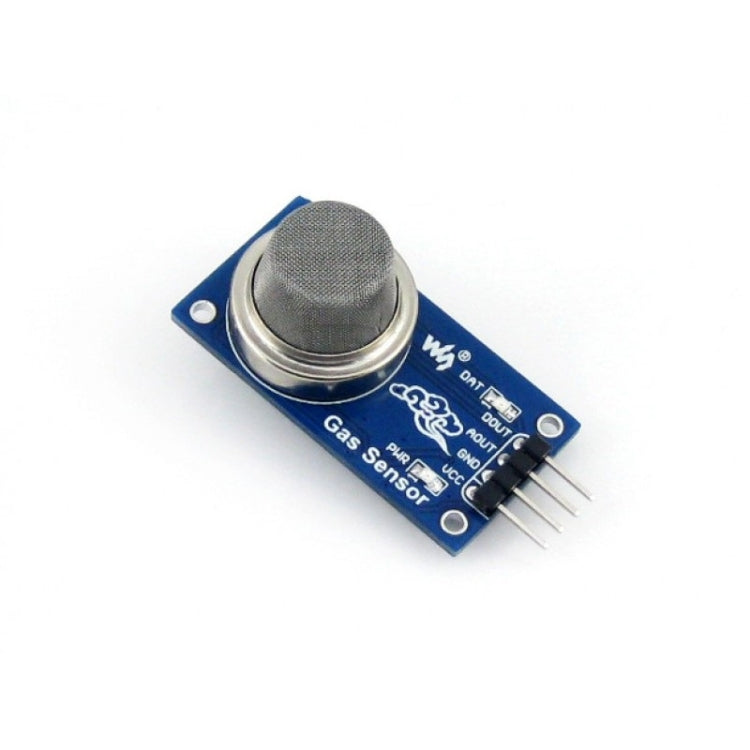

Waveshare MQ-135 Gas Sensor
Waveshare MQ-135 Gas Sensor
Sale
Sold out
Pre-order
Regular price
R 249.00
Regular price
Sale price
R 249.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
Overview
1. Sensitive for benzene, alcohol, smoke
2. Output voltage boosts along with the concentration of the measured gases increases
3. Fast response and recovery
4. Adjustable sensitivity
5. Signal output indicator
Specifications
1. Power: 2.5V ~ 5.0V
2. Dimension: 40.0mm * 21.0mm
3. Mounting holes size: 2.0mm
Applications
Air quality monitor
How to Use

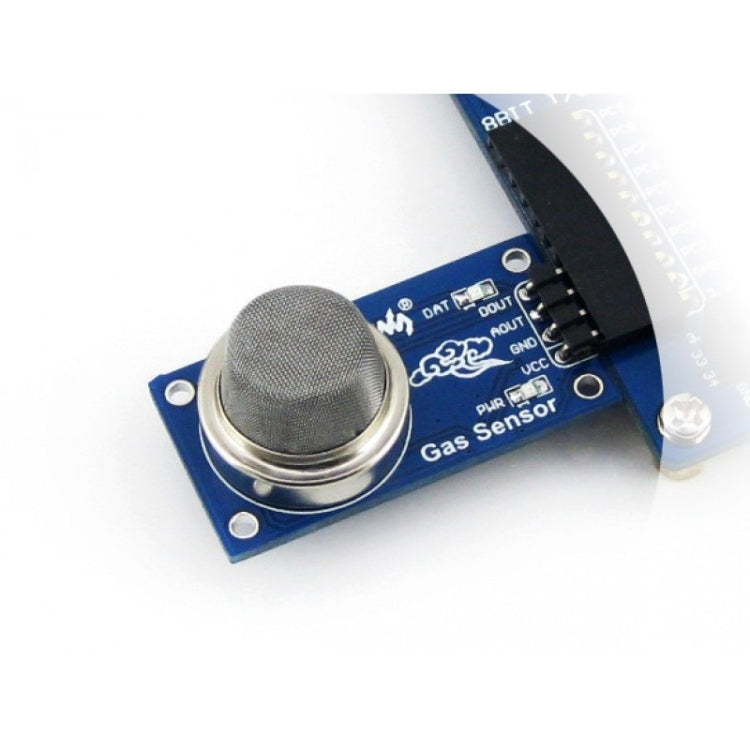

In the case of working with a MCU:
1. VCC: 2.5V ~ 5.0V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)
Package Contents
1. MQ-135 Gas Sensor x1
2. 4-pin custom connector jumper wire x1
