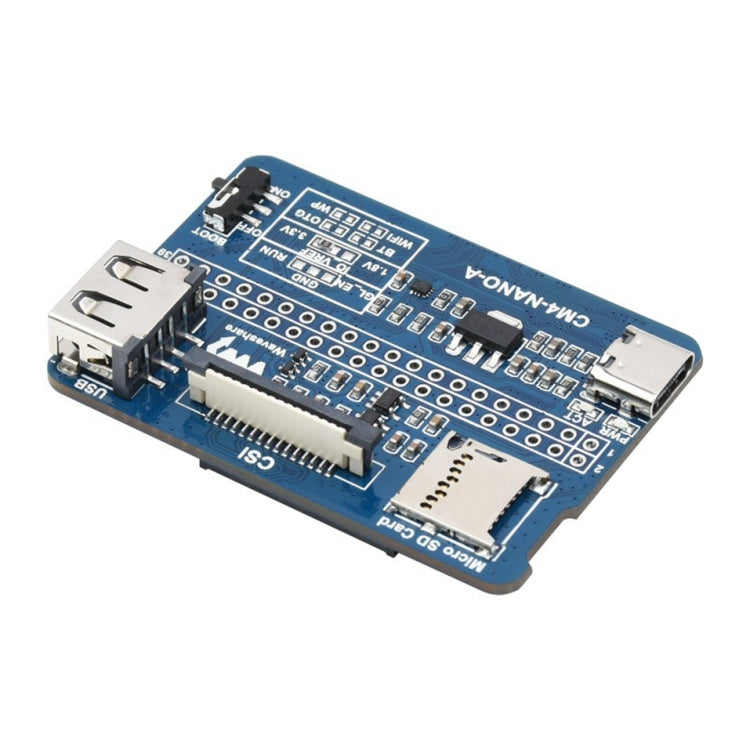

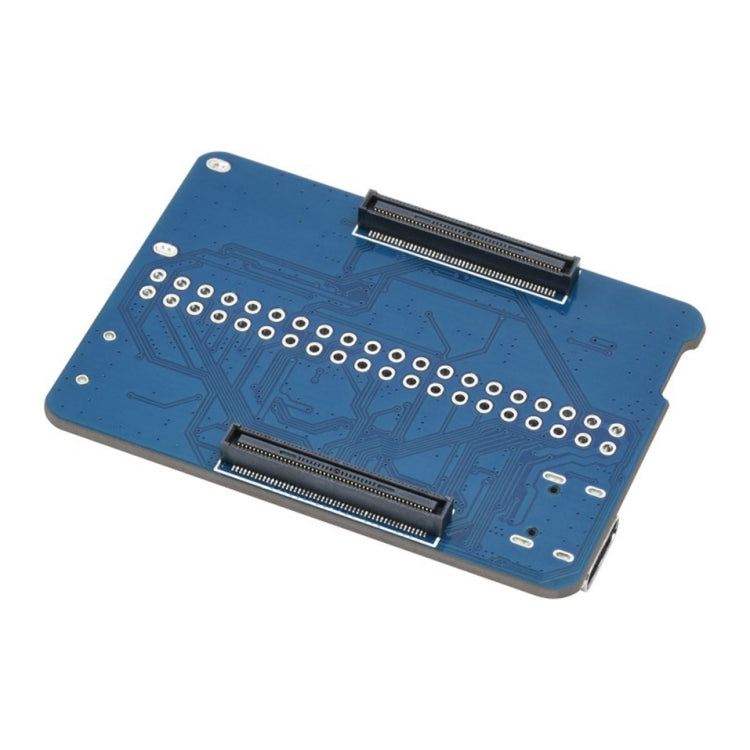

Waveshare Nano Base Board A for Raspberry Pi CM4

Name: Waveshare Nano Base Board A for Raspberry Pi CM4
Brand: PMC Jewellery
SKU: DIY0244
Price: 429.00 ZAR
Availability: InStock

R 429.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

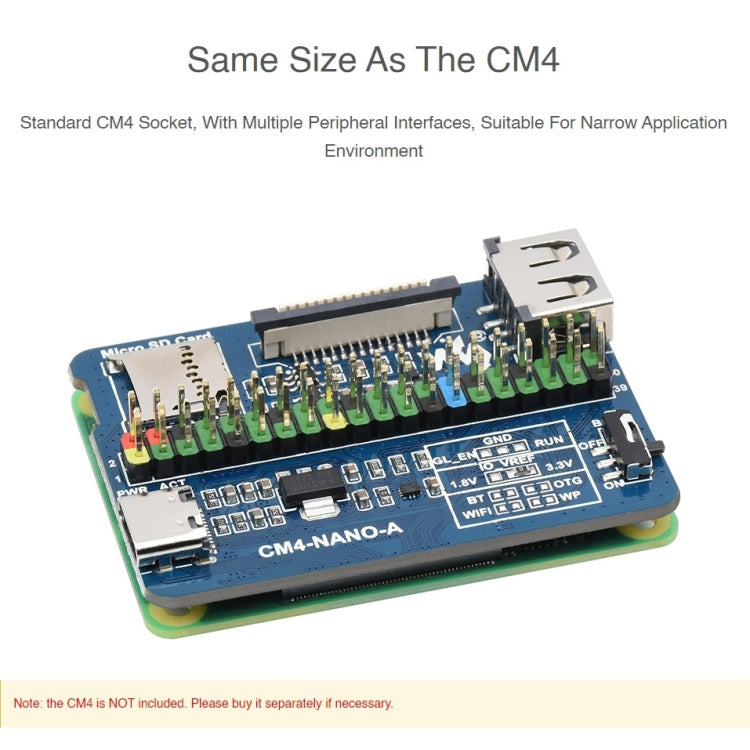

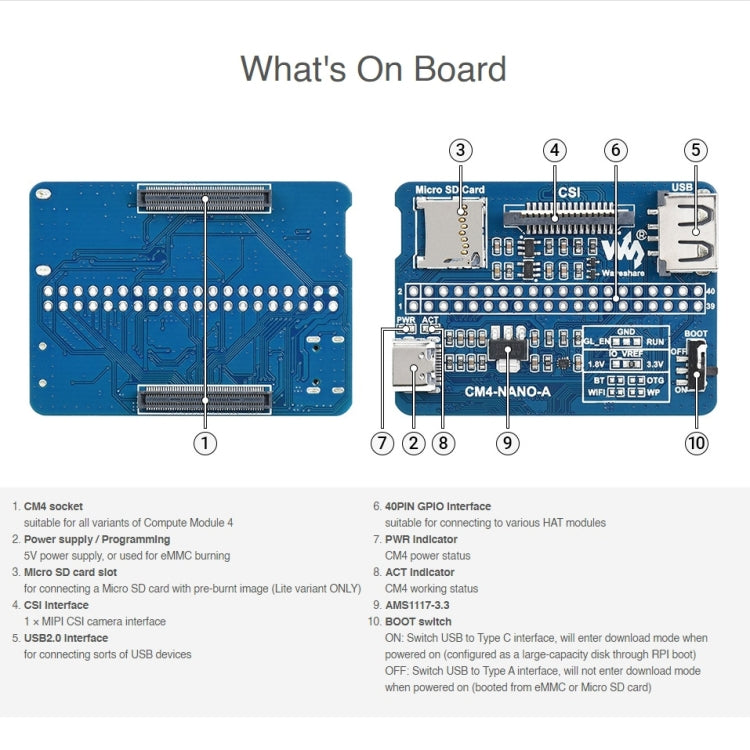

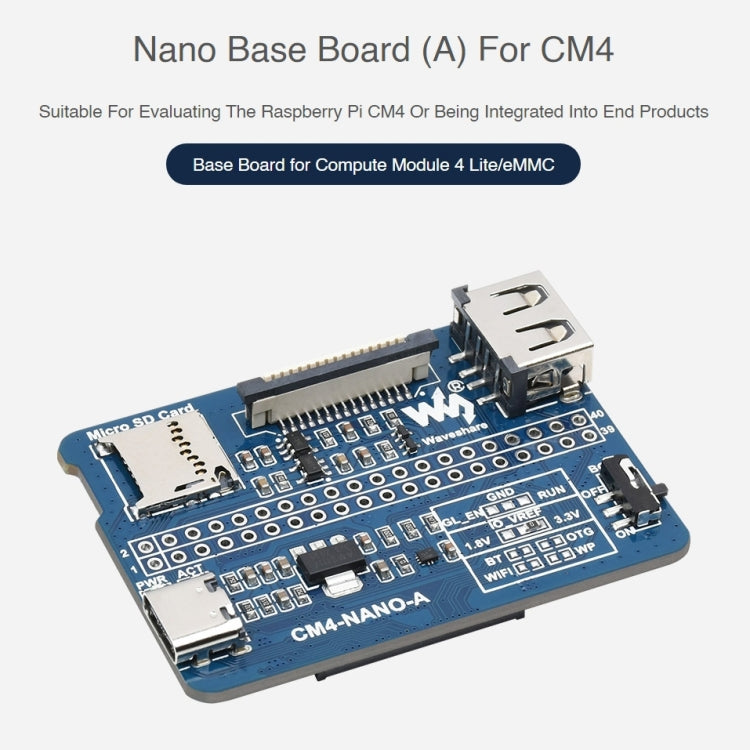

1. Base board for Compute Module 4 Lite / eMMC
2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

Specifications:
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Connector: Raspberry Pi 40PIN GPIO interface x 1
3. USB: USB 2.0 Type A interface x 1
4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
6. Power: 5V

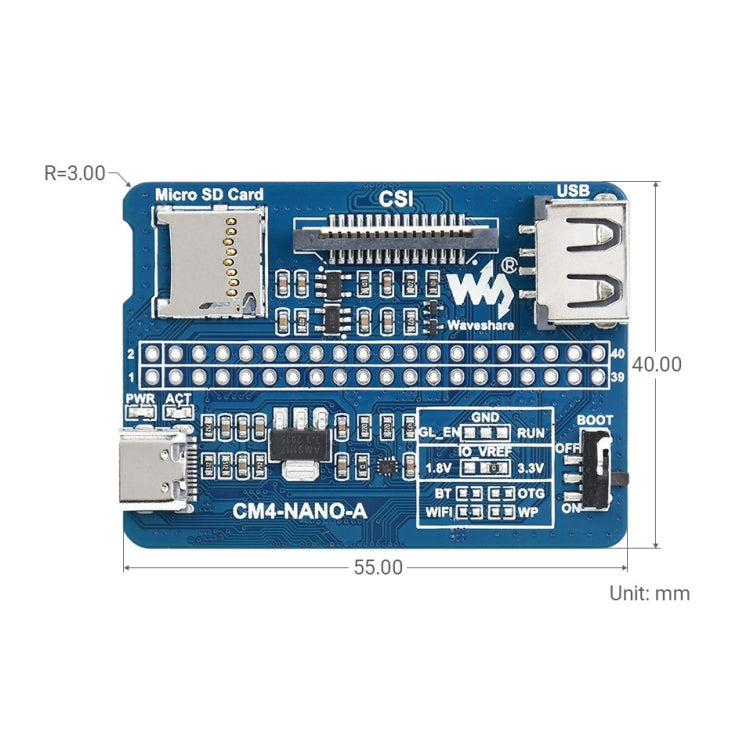

7. Size: 55 x 40mm

Package list
1. CM4-NANO-A x1

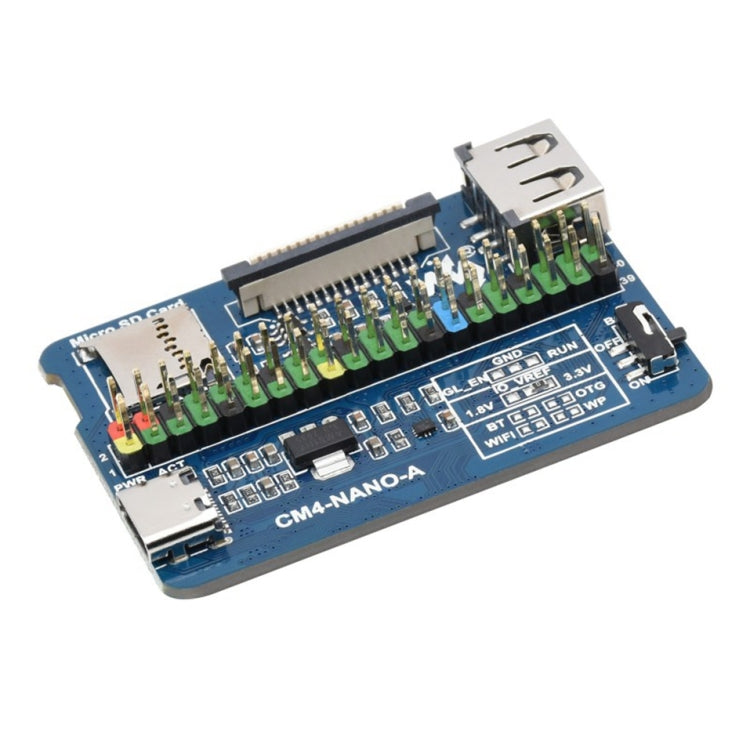

2. 2 x 20PIN color-coded straight pinheader x 2
