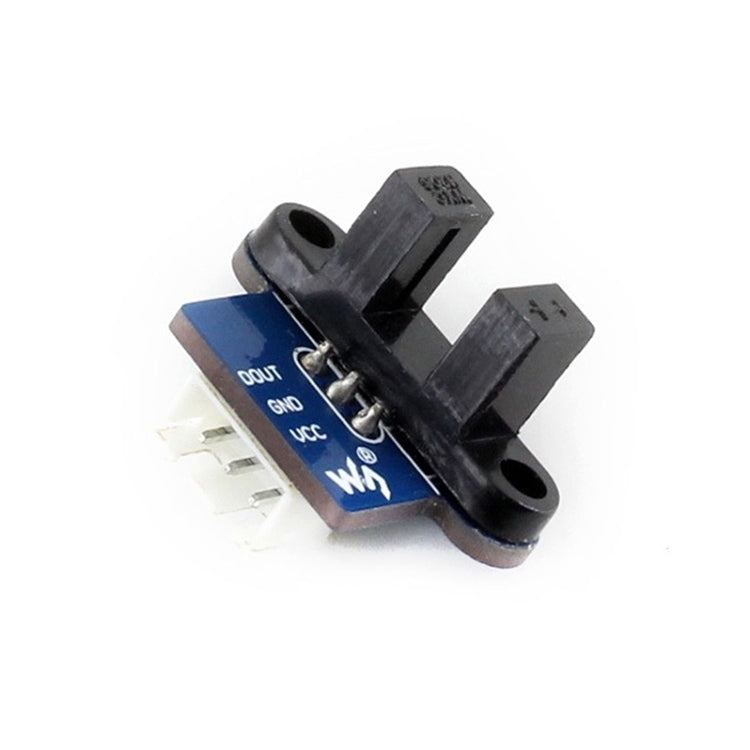

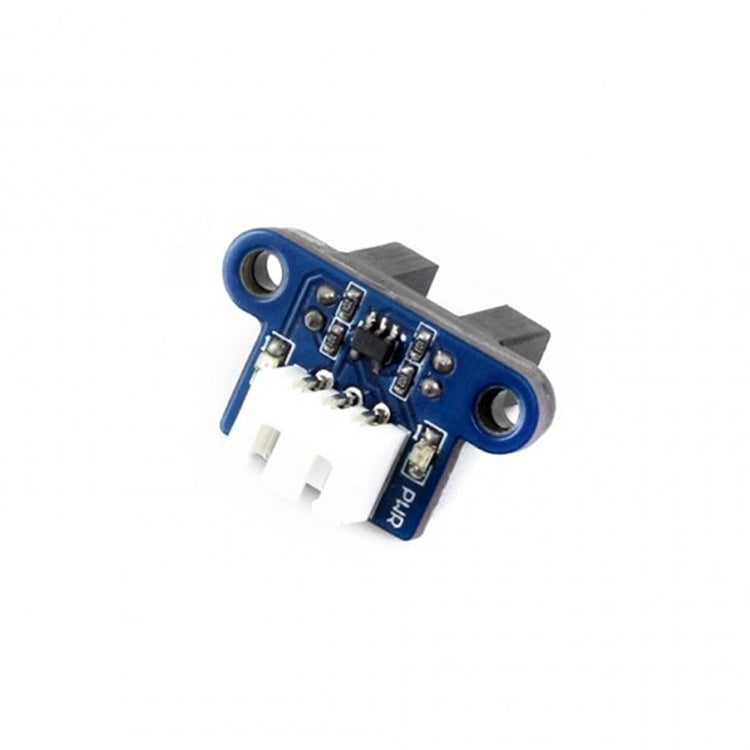

Waveshare Photo Interrupter Sensor, Speed Measuring
Waveshare Photo Interrupter Sensor, Speed Measuring
Sale
Sold out
Pre-order
Regular price
R 229.00
Regular price
Sale price
R 229.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Robotics Accessories
• Compatibility: Speed Measuring Applications
• Material: Infrared
• Key feature: Infrared detection eliminates external light interference
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Consumer Electronics
Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals

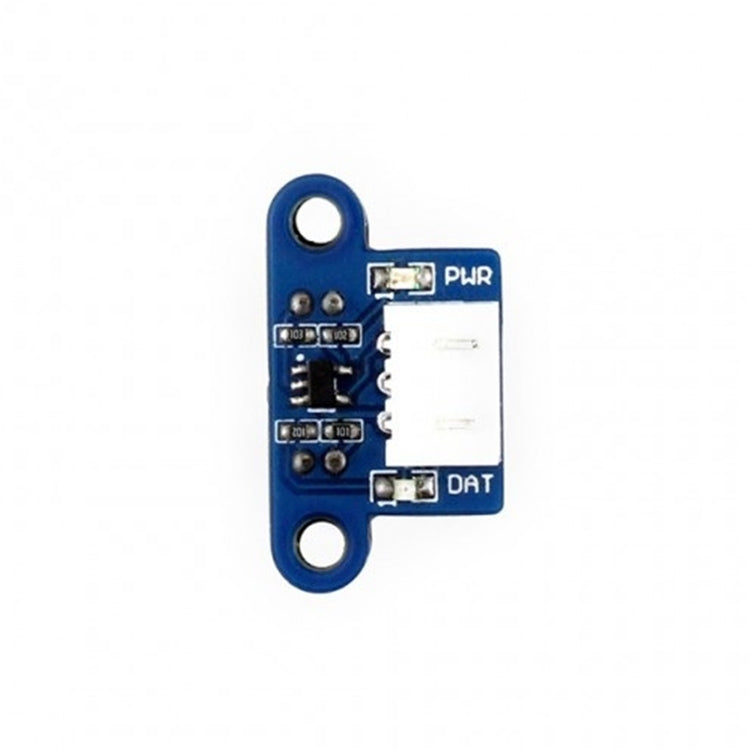

3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications

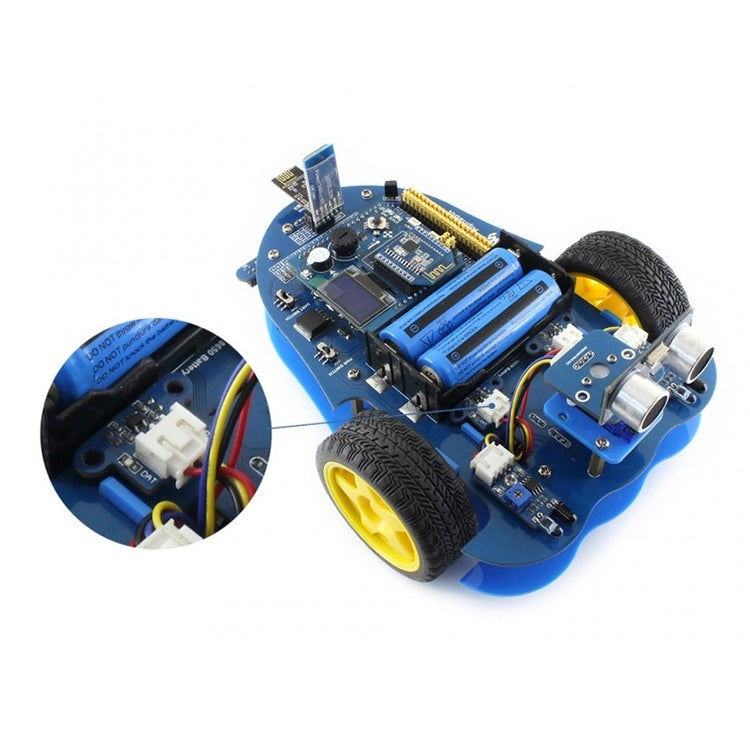

- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
• Compatibility: Speed Measuring Applications
• Material: Infrared
• Key feature: Infrared detection eliminates external light interference
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Consumer Electronics
Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals
3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm
Applications
- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- DOUT ? MCU.IO (digital output)
