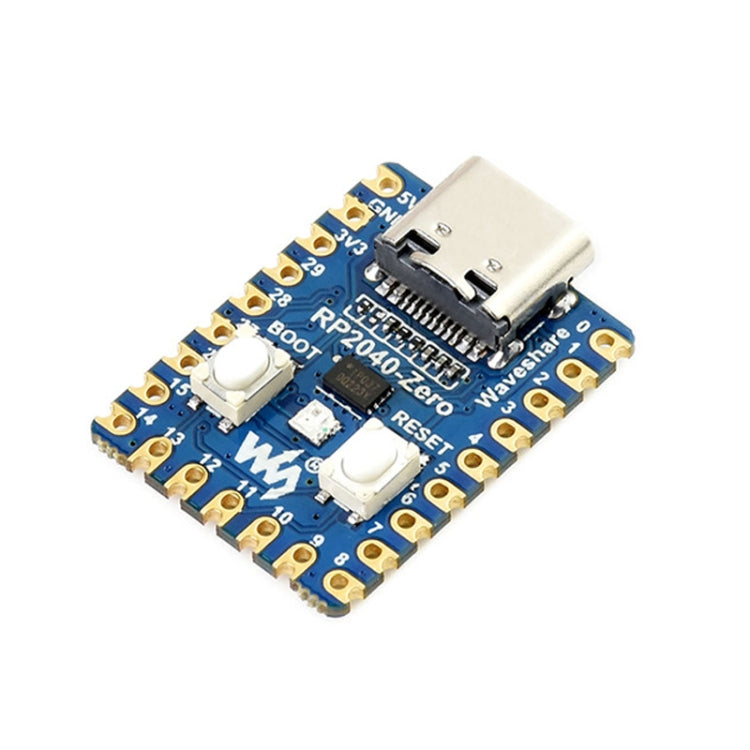

Waveshare Pico-Like MCU Board Based On Raspberry Pi RP2040, Spec: Zero
Waveshare Pico-Like MCU Board Based On Raspberry Pi RP2040, Spec: Zero
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R86.33/mo 3 months
- R43.66/mo 6 months
- R23.04/mo 12 months
- From R86.33/month over 3 months, or as low as R23.04/month over 12. Total repayable over 12 months: R276.48. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The Waveshare Pico-Like MCU Board is based on the Raspberry Pi RP2040 microcontroller. It is suitable for integration into custom-designed baseboards for various electronic projects.
- Microcontroller: RP2040
- Processor: Dual-core ARM Cortex M0+, up to 133MHz
- Memory: 264KB SRAM, 2MB on-chip Flash
- Design: True stamp hole design for direct soldering
- USB Support: USB 1.1 host and device
- Power Modes: Low-power sleep and hibernation modes
- Storage: Identified as large-capacity storage via USB for program downloads
- GPIO Pins: 29 GPIO pins (20 accessible via pin headers, remaining via soldering)
- Communication Interfaces: 2 SPI, 2 I2C, 2 UART
- ADC: 4 12-bit ADC channels
- PWM: 16 controllable PWM channels
- Clock: Accurate on-chip clock and timer
- Temperature Sensor: Integrated temperature sensor
- Floating-point Library: On-chip accelerated floating-point library
- PIO: 8 programmable I/O state machines for custom peripheral support
- Dimensions: 23.5 x 18mm
