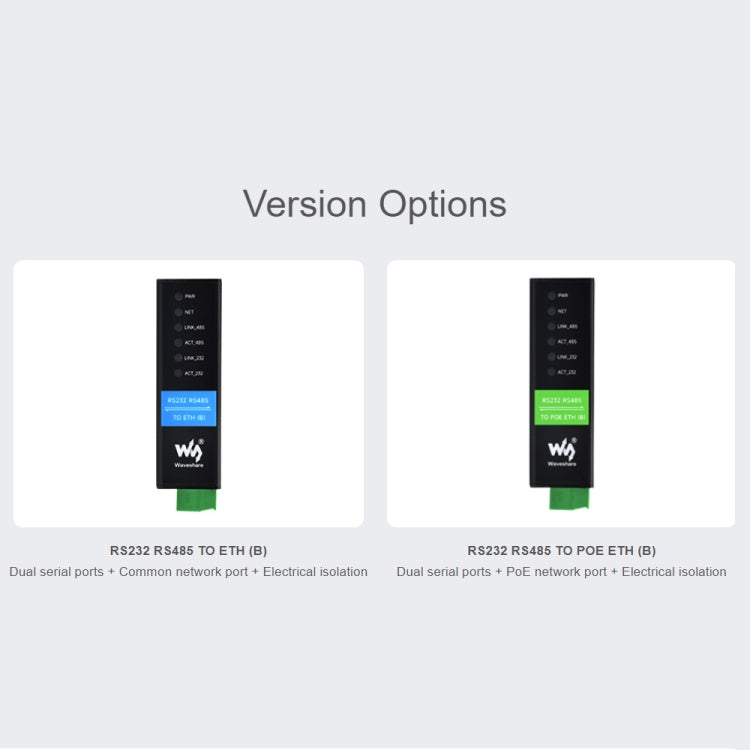

Waveshare RS232 RS485 To RJ45 Ethernet Serial Server, Spec: RS232 RS485 TO ETH (B)
Waveshare RS232 RS485 To RJ45 Ethernet Serial Server, Spec: RS232 RS485 TO ETH (B)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R287.44/mo 3 months
- R145.34/mo 6 months
- R76.71/mo 12 months
- From R287.44/month over 3 months, or as low as R76.71/month over 12. Total repayable over 12 months: R920.52. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

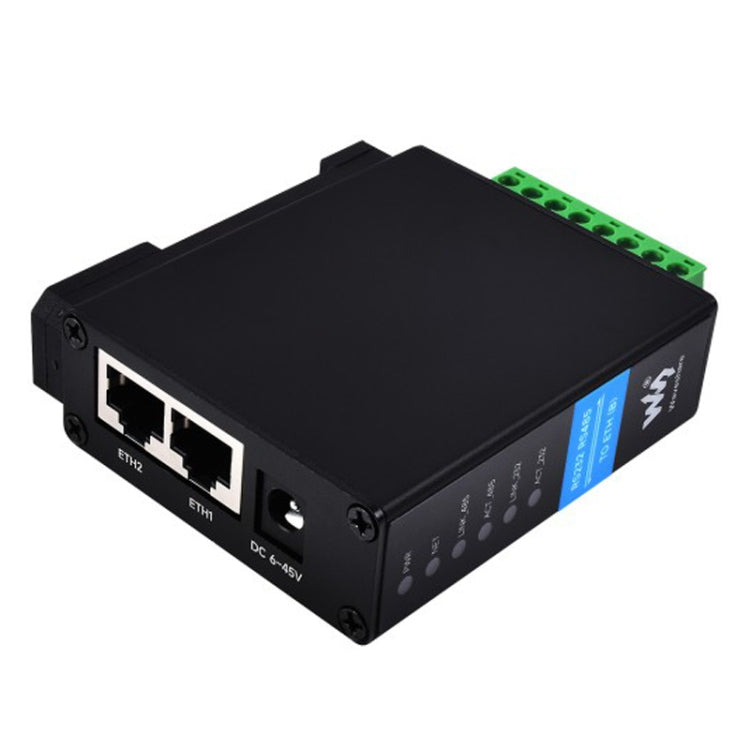

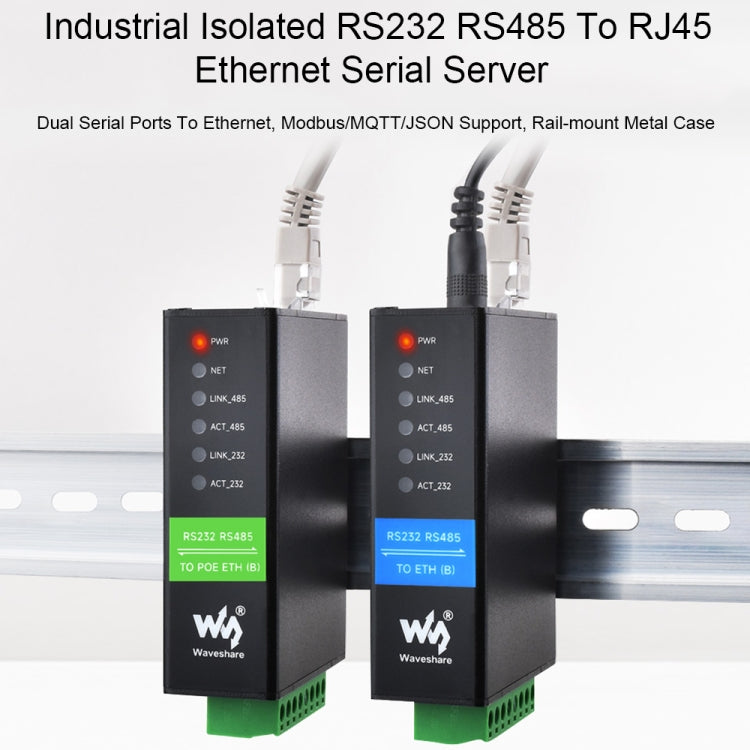

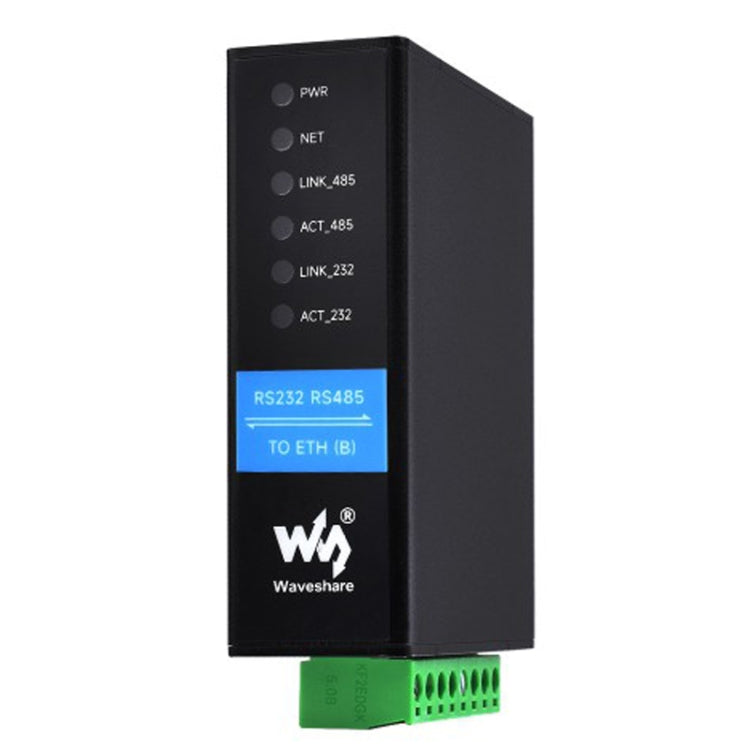

The Waveshare RS232 RS485 To RJ45 Ethernet Serial Server is a dual serial port device designed for data collection and IoT applications in industrial environments. It allows simultaneous operation of RS232 and RS485 ports over a single network cable, facilitating efficient data transmission.

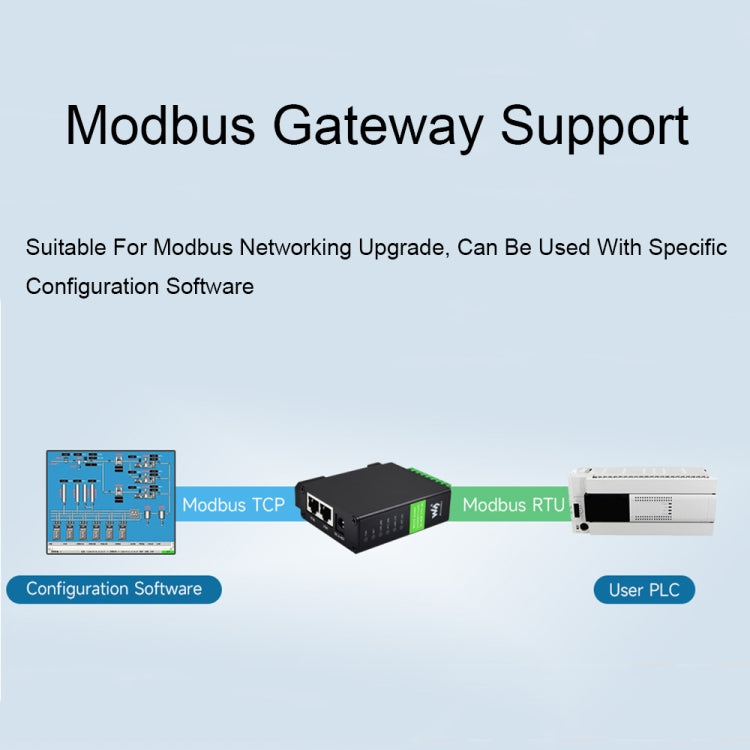

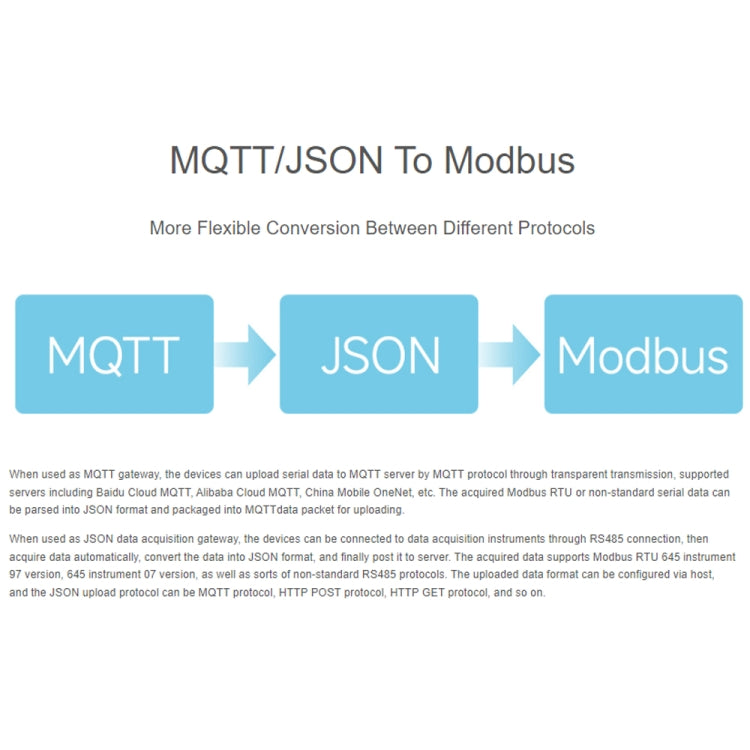

- Product Type: Serial server, Modbus gateway, MQTT gateway
- Compatibility: RS232, RS485
- Material: Durable
- Color: Black
- Key Feature: Dual serial ports

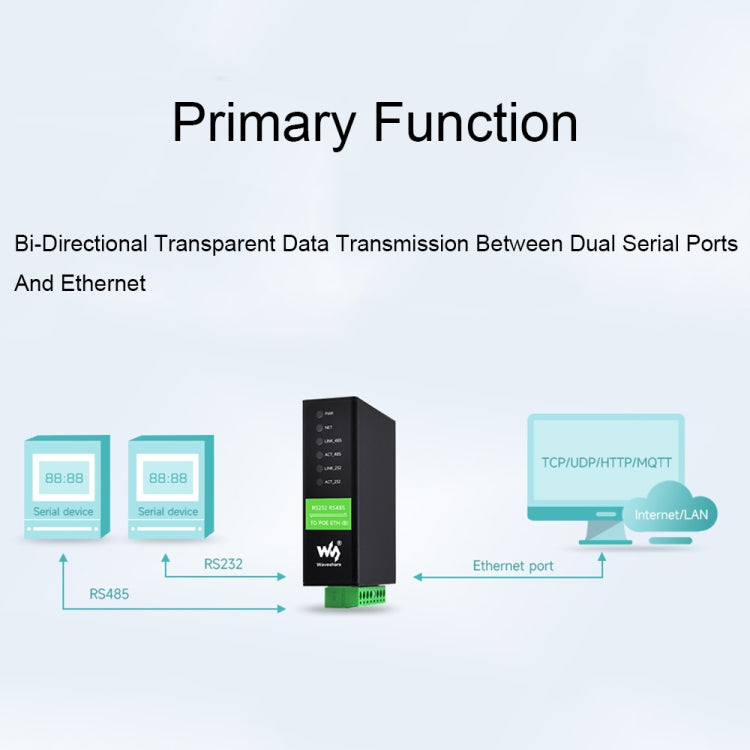

- Basic Functions: Two-way transparent transmission of data between RS232, RS485 and Ethernet

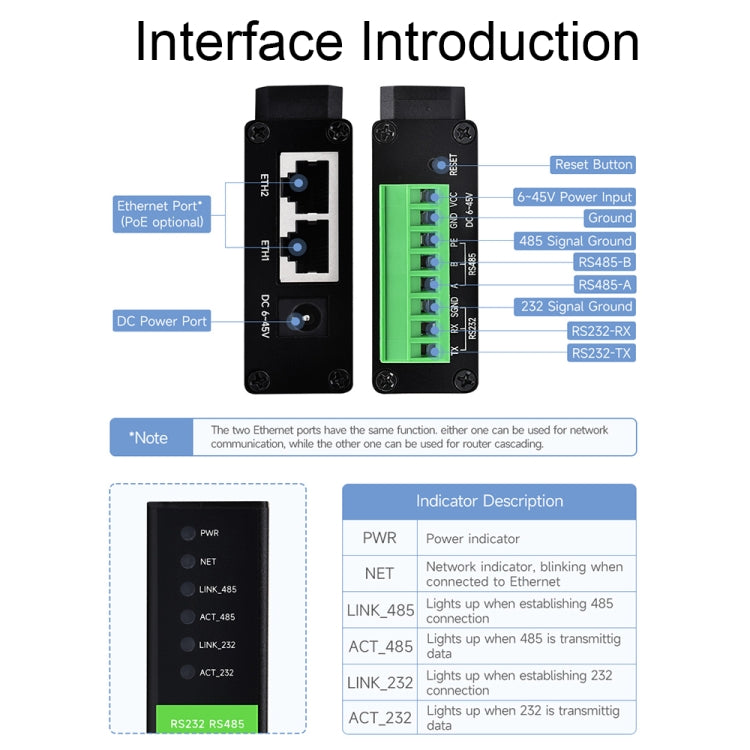

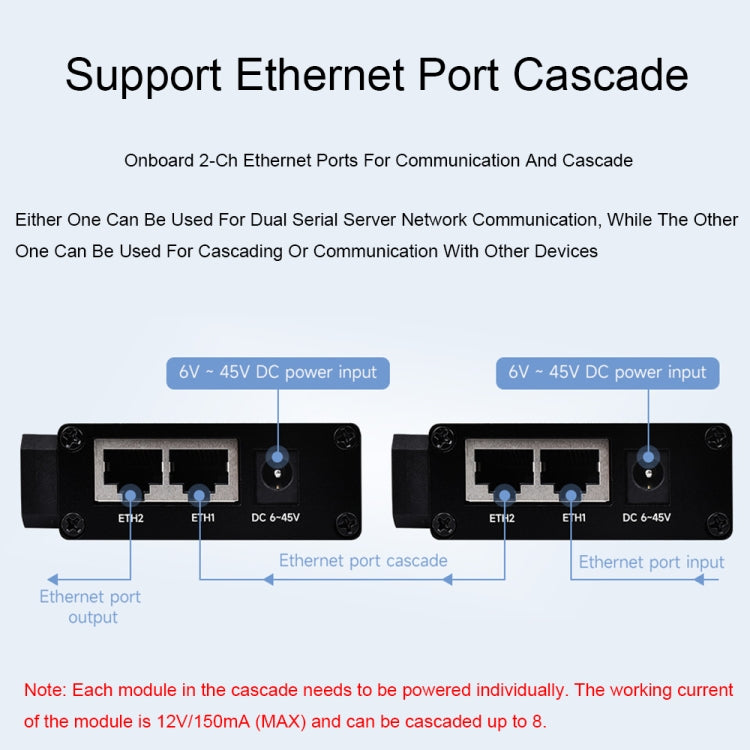

- Communication Interface: RS232 port × 1, RS485 port × 1, Ethernet port × 2

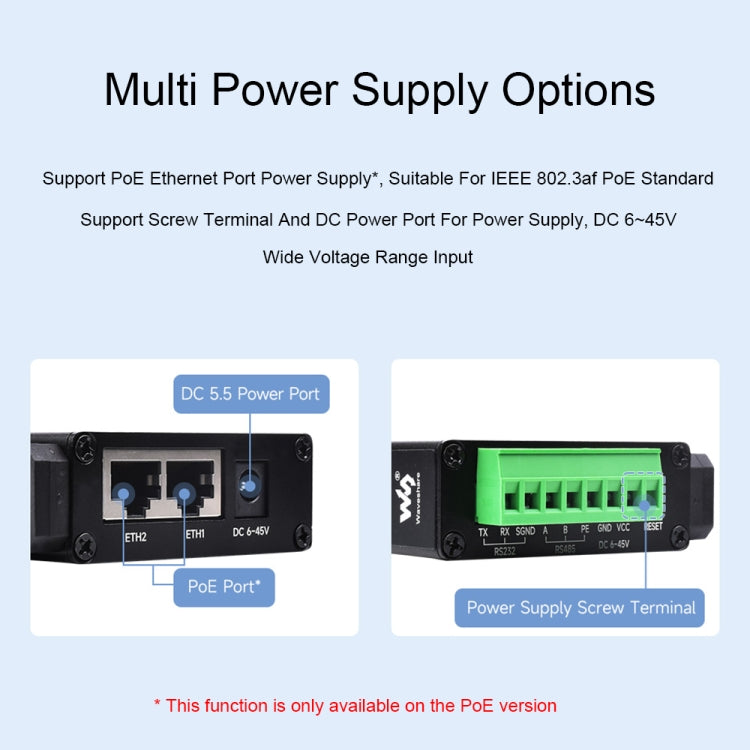

- Power Supply: DC 5.5 power interface, 6~45V DC screw terminal, or PoE interface

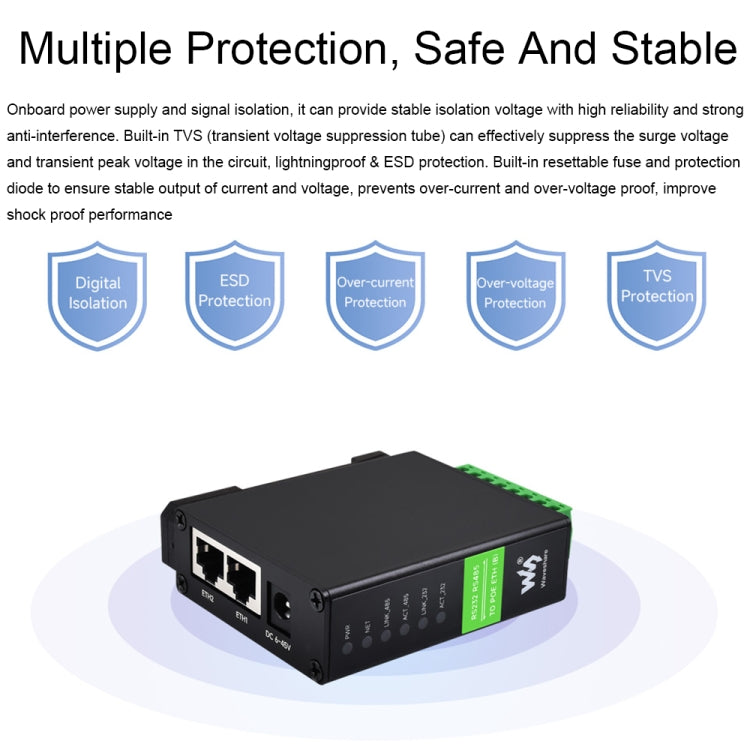

- Isolation Protection: Power isolation, signal isolation
- Ethernet: RJ45 with PoE support, IEEE 802.3af compliant, 10/100M self-negotiating RJ45 connector, 2KV surge protection
- Serial Port: Isolated RS232 and RS485 (2 channels can receive and send independently at the same time)
- Baud Rate: 300-115200 bps
- Check Digit: None, odd, even, mark, space
- Data Bits: 5-9 bits
- Flow Control: Not applicable
- Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

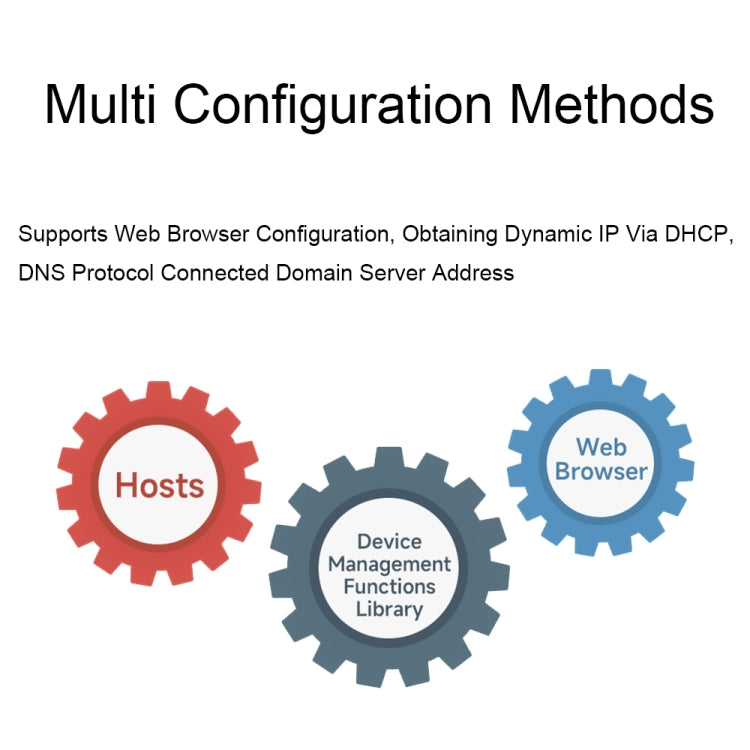

- Configuration: Host, browser, device management function library
- Communication Method: TCP/IP direct communication, VCOM

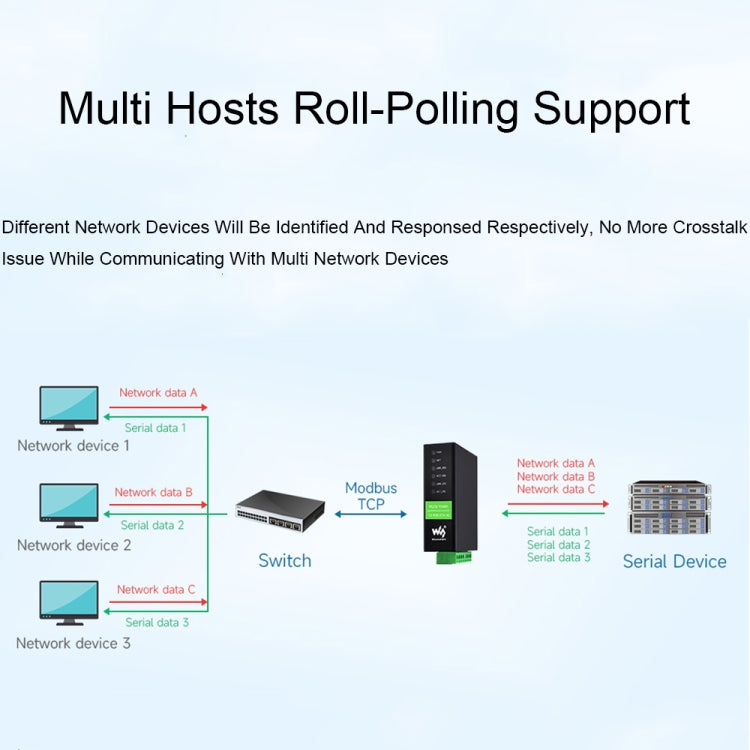

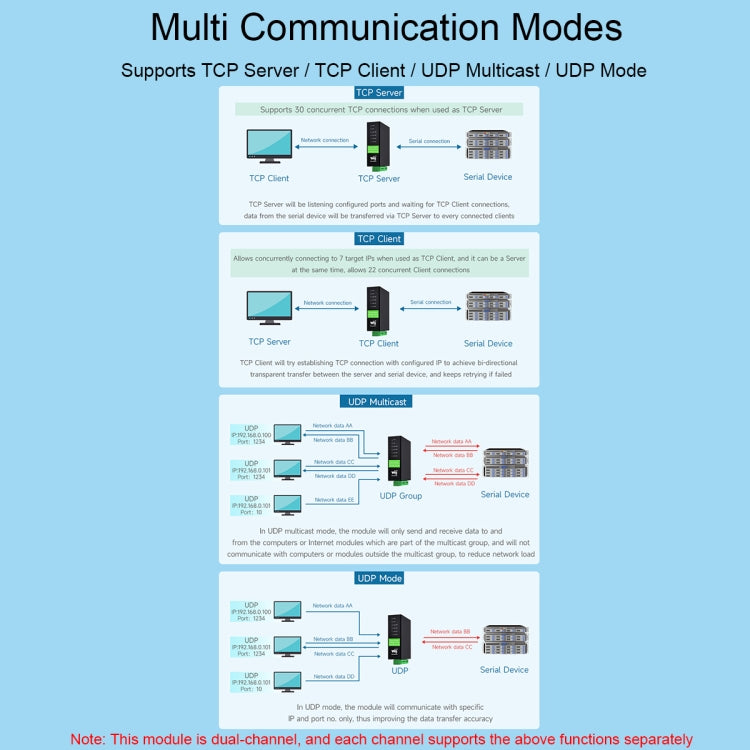

- Working Mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
- Working Temperature: -40°C to 85°C
- Humidity Range: 5%-95% relative humidity

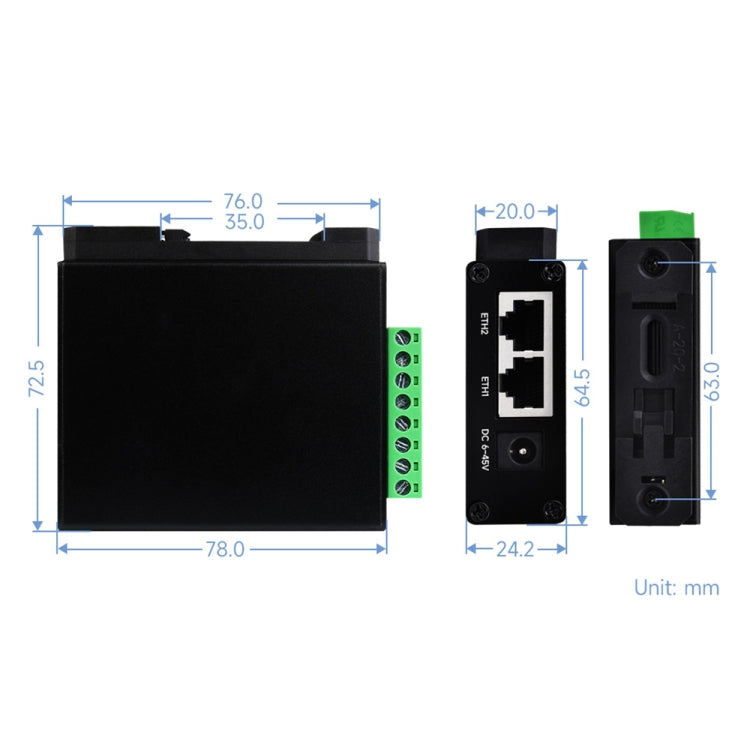

- Product Size: 78 x 72.5 x 24.2 mm
- Weight: 134 grams
