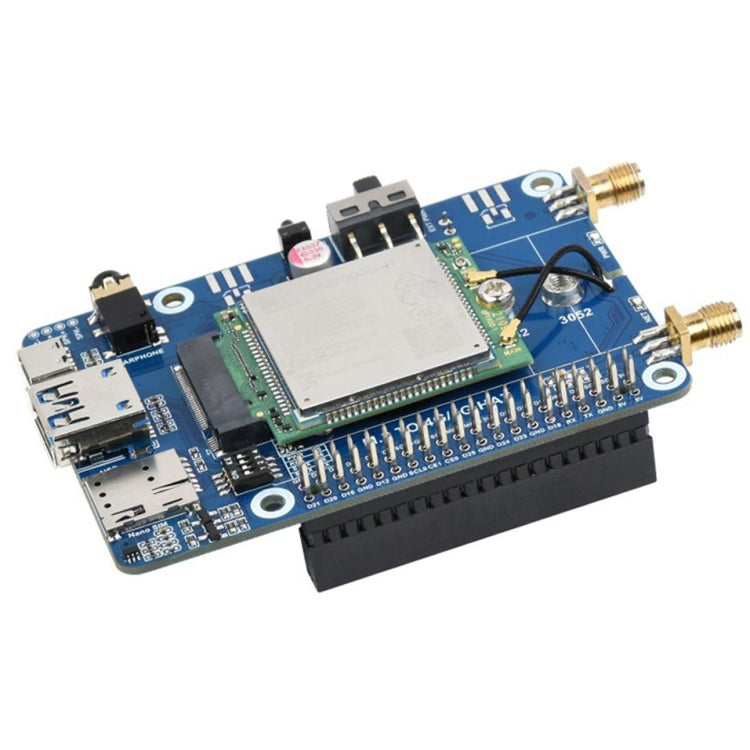

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi

Regular price R 1,779.00
Regular price Sale price R 1,779.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features

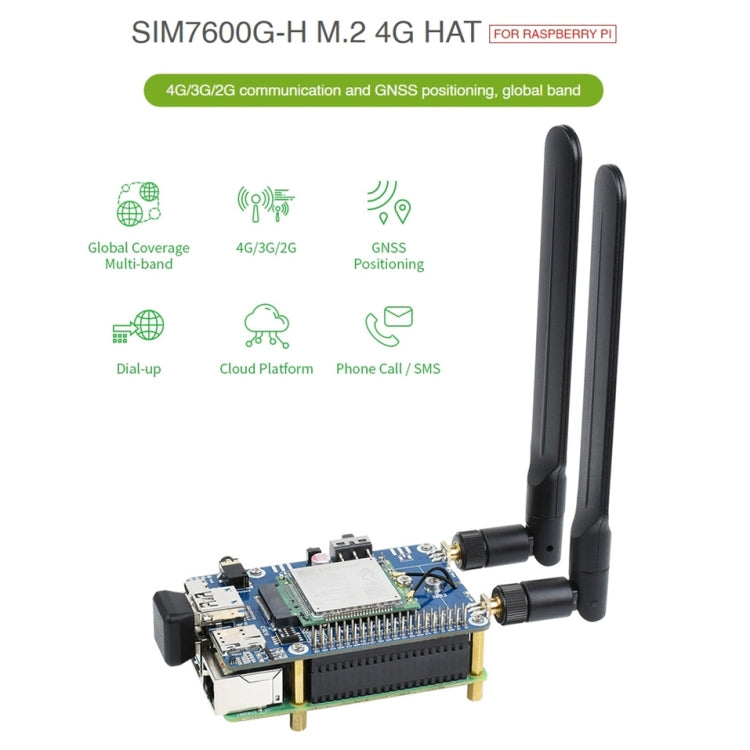

1. This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.
2. Support dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
3. GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station

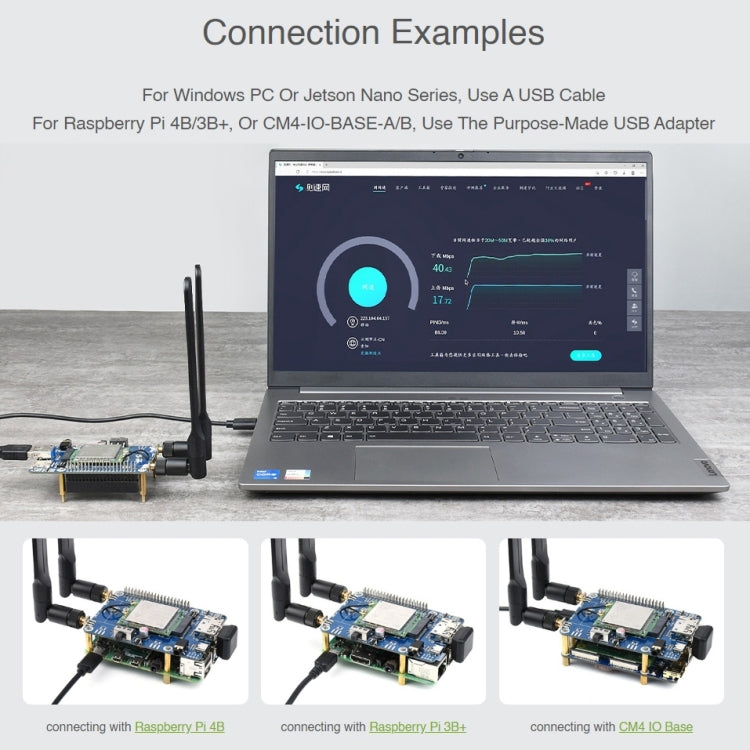

4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication

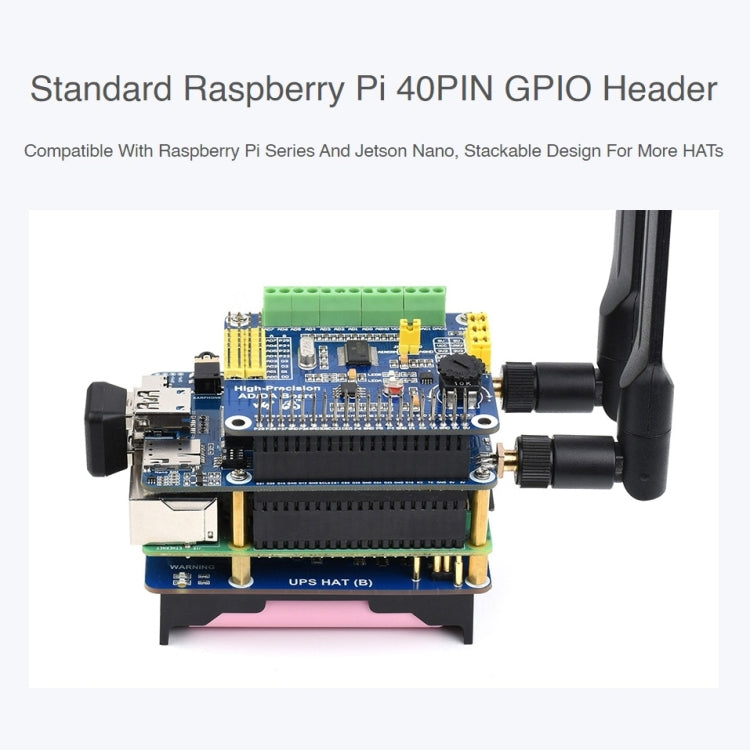

5. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
7. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
8. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
9. Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
10. Onboard audio jack and audio decoder, allows audio operation like making phone call
11. High efficiency power supply circuit, up to 3A output current

Specifications
Frequency band:
1. LTE Cat-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
2. LTE-TDD: B34, B38, B39, B40, B41
3. 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
4. 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz

GNSS:
1. Satellite systems: GPS, Beidou, GLONASS, GALILEO, QZSS
2. Receiver type:
- 16-channel
- C/A Code
3. Sensitivity:
- -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
- Cold starts: -148 dBm
4. Time-To-First-Fix (open air):
- Cold starts: Less than 35s
- Hot starts: Less than 1s

SMS and Audio
1. SMS:
- Supported types: MT, MO, CB, Text, PDU
- Storage: USIM card and ME (default)
2. Audio feature:
- Support echo cancellation
- Support noise reduction

Package List
1. M.2 TO 4G/5G HAT x 1
2. SIM7600G-H-M.2 x 1
3. Antenna 2pcs x 1
4. IPEX adapter cable 2pcs x 1
5. 2*20PIN pin header x 1
6. Passive GPS antenna x 1
7. Dual plug USB3.0 cable x 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 2pcs x 1
11. Screws pack x 1
