Description

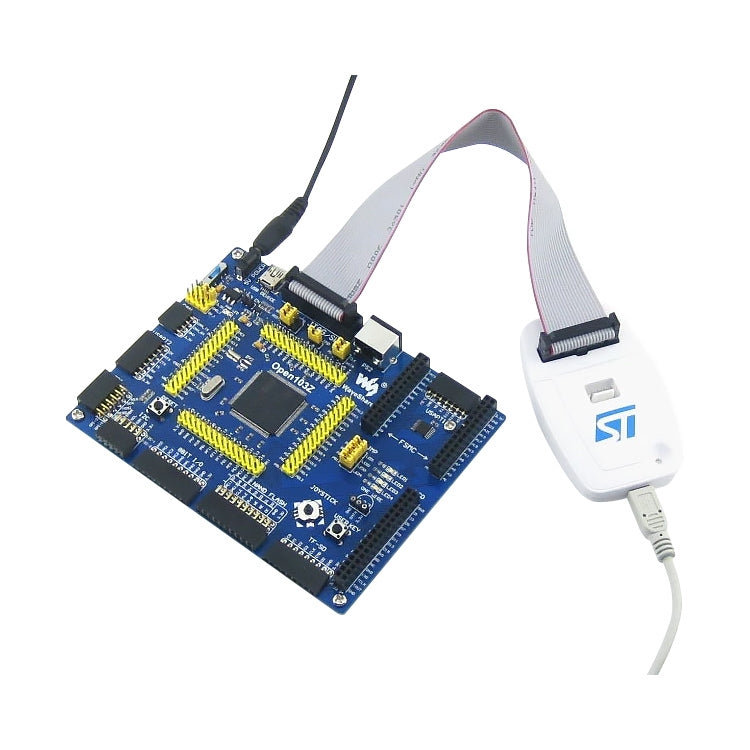

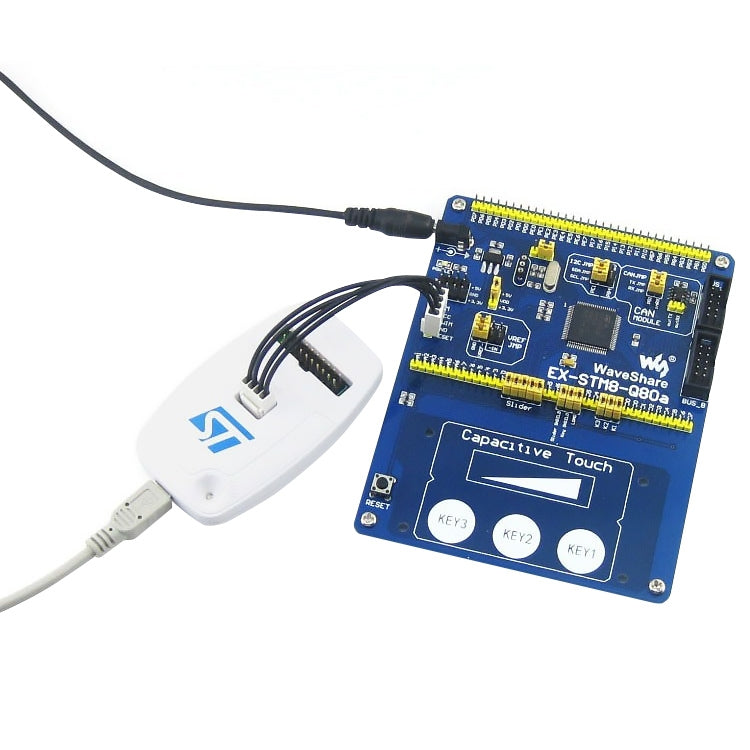

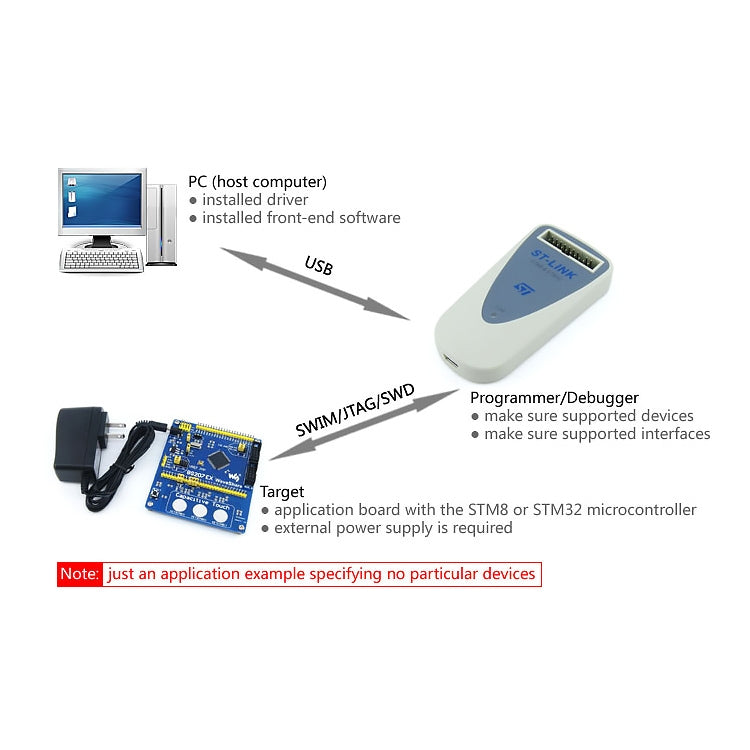

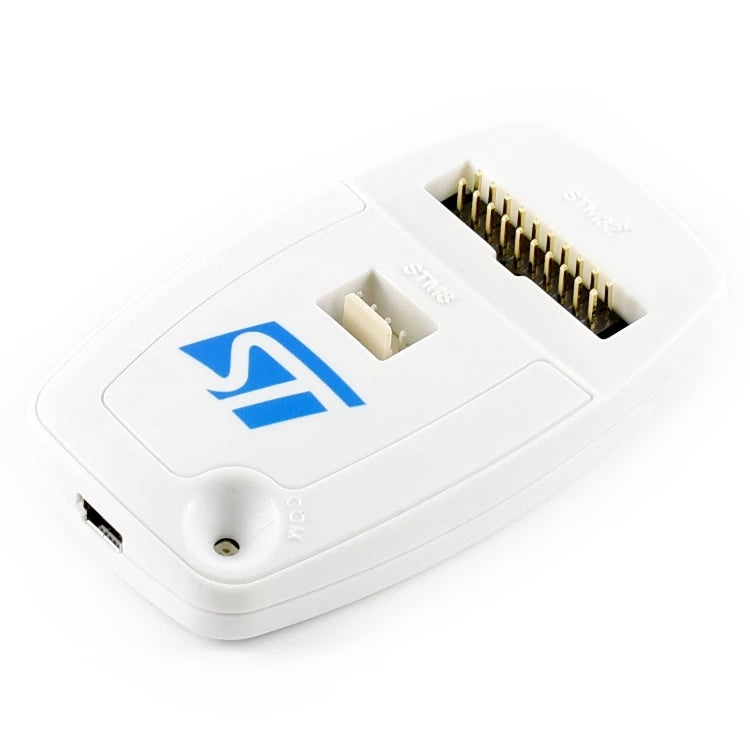

The ST-LINK/V2 is an in-circuit debugger and programmer for STM8 and STM32 microcontrollers. It connects to application boards via SWIM or JTAG interfaces for programming and debugging tasks.
- Product Type: MCU Tools
- Compatibility: STM8 and STM32 microcontrollers
- Power Supply: 5V via USB connector
- Interface: USB 2.0 full speed compatible

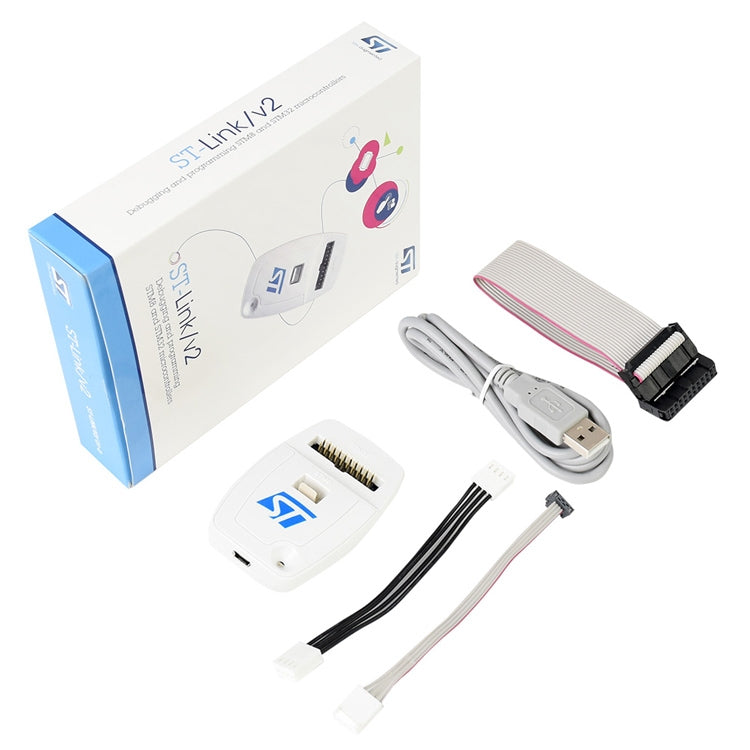

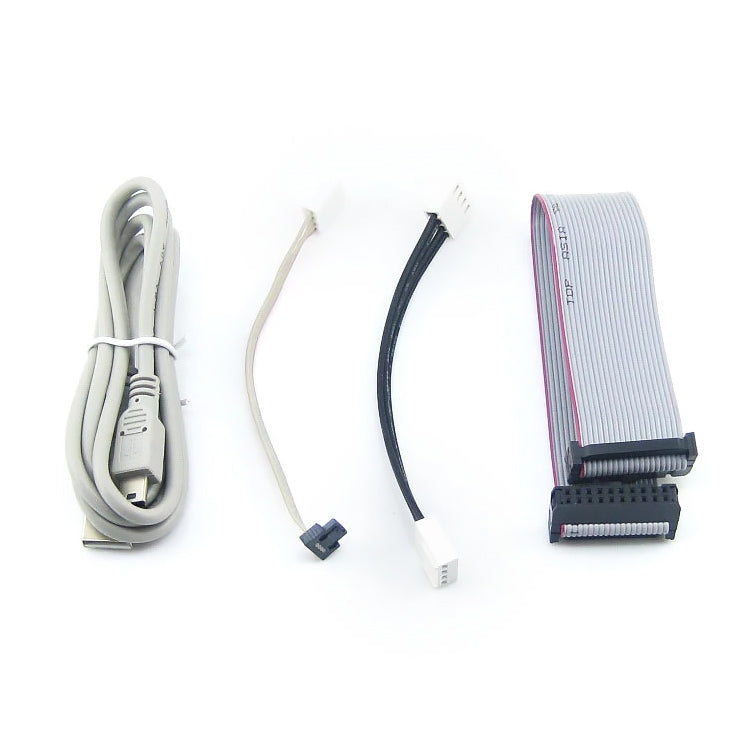

- Cable Type: USB standard A to mini B cable
- SWIM Voltage Support: 1.65 V to 5.5 V
- SWIM Modes: Low-speed and high-speed
- SWIM Programming Speed: 9.7 Kbytes/s (low speed), 12.8 Kbytes/s (high speed)
- SWIM Cable Connection: ERNI standard vertical or horizontal connector, pin header, or 2.54 mm pitch connector
- JTAG Voltage Support: 1.65 V to 3.6 V, 5 V tolerant inputs
- JTAG Cable Connection: Standard JTAG 20-pin pitch 2.54 mm connector
- Direct Firmware Update: Supported (DFU)
- Status LED: Indicates communication status with the PC
- Operating Temperature: 0 to 50 °C
