Description

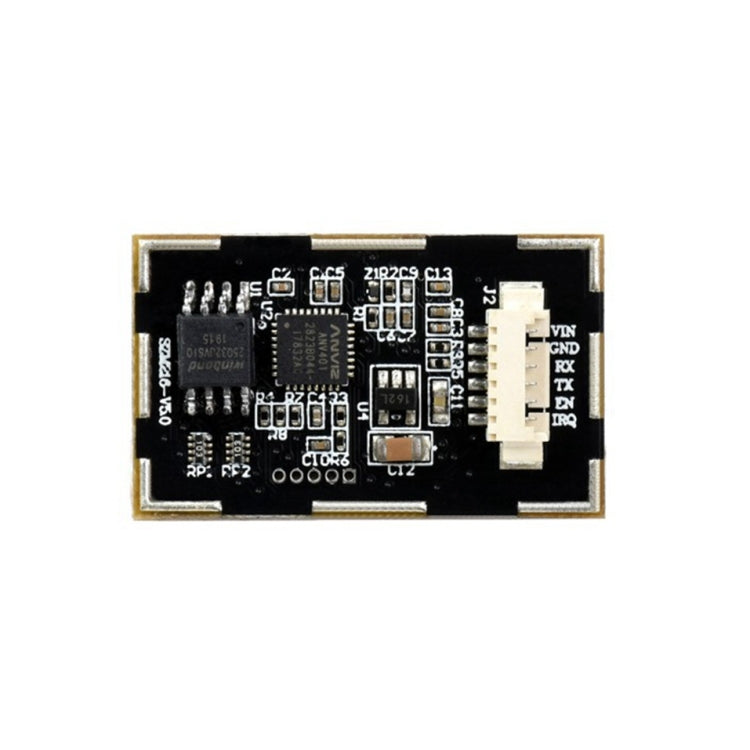

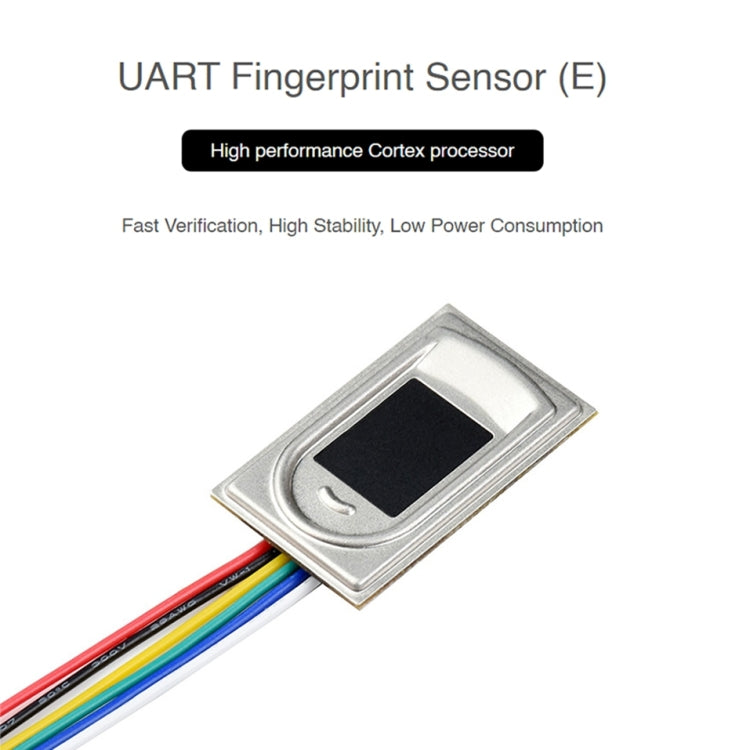

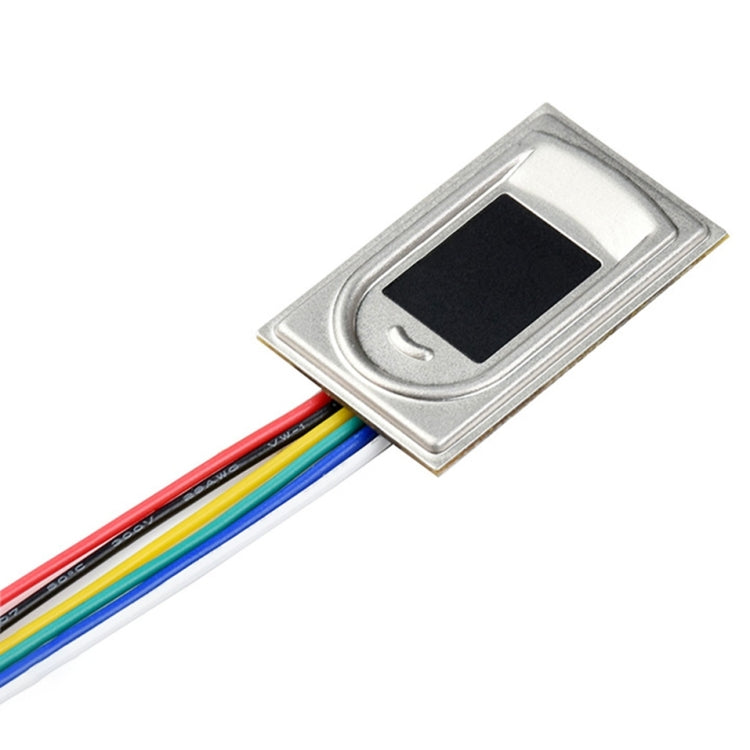

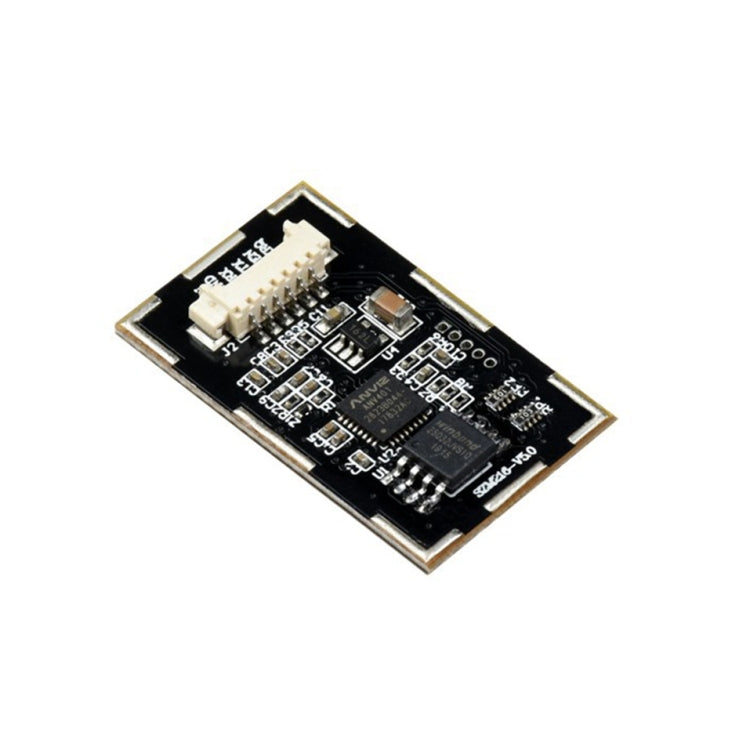

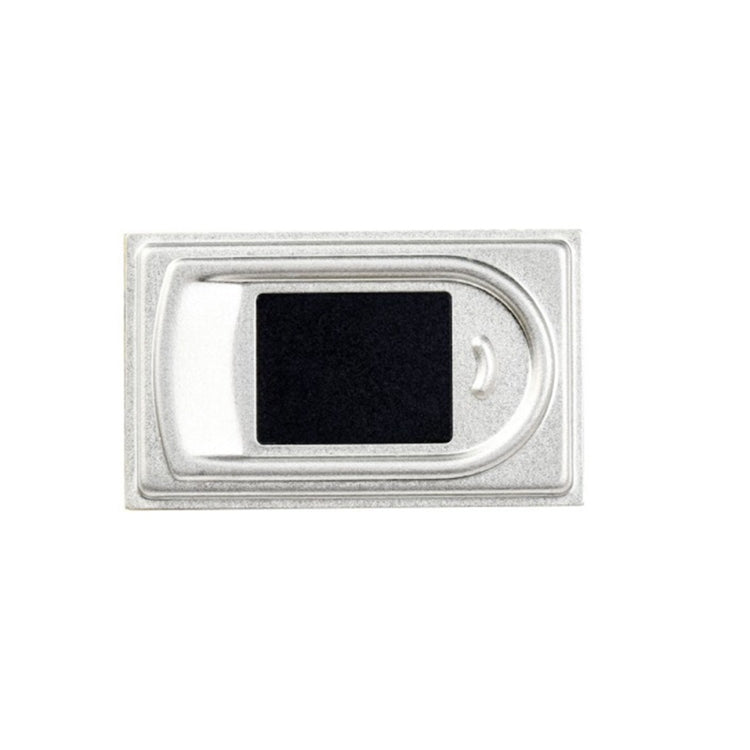

The UART Rectangle-shaped All-in-One Capacitive Fingerprint Sensor (E) is a fingerprint verification module. It is suitable for various applications requiring compact size and high precision.
- Product Type: Modules Expansions Accessories
- Material: Capacitive sensor
- Color/Variant: Rectangle-shaped
- Compatibility: Compatible with various fingerprint verification applications
- Sensor: Capacitive touch sensor
- Resolution: 508 DPI
- Image Pixels: 160 x 160
- Image Greyscale: 8

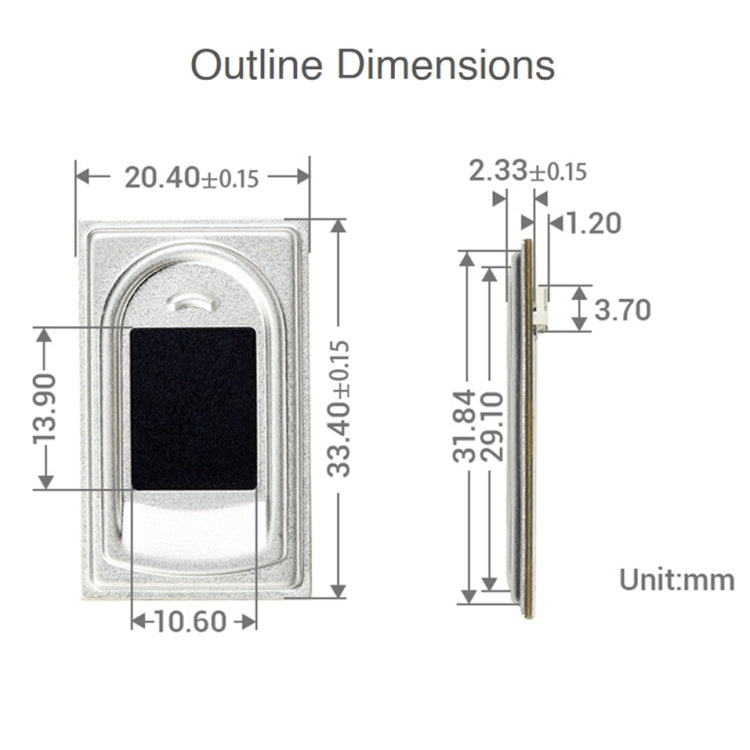

- Sensor Dimension: 11.2 x 12.2 mm
- Fingerprint Capacity: 3000
- Matching Time: Less than 200ms (1:N, N ≤ 100)
- False Acceptance Rate: Less than 0.001%
- False Rejection Rate: Less than 0.1%
- Operating Voltage: 3.3V
- Operating Current: Less than 50mA
- Sleep Current: Less than 16uA
- ESD: Contact discharge 8KV / aerial discharge 15KV
- Communication Port: UART
- Baudrate: 19200 bps
- Operating Environment: Temperature: -20°C to 70°C; Humidity: 40%RH to 85%RH (no condensation)
- Storage Environment: Temperature: -40°C to 85°C; Humidity: less than 85%RH (no condensation)
- Package List: UART Fingerprint Sensor (E) x 1, 6PIN squid wire x 1
