Waveshare WM8960 Stereo CODEC Audio Module, Play/Record

Name: Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
Brand: Waveshare
SKU: ZY14326991
Price: 339.00 ZAR
Availability: InStock

R 339.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview

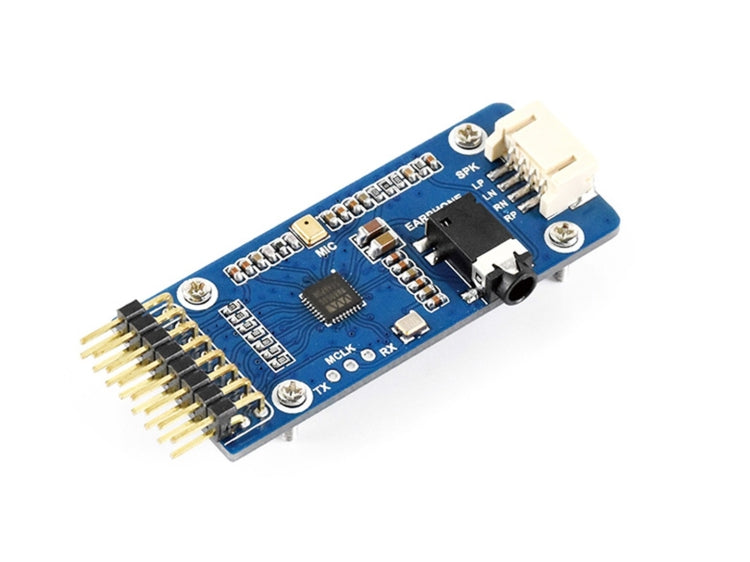

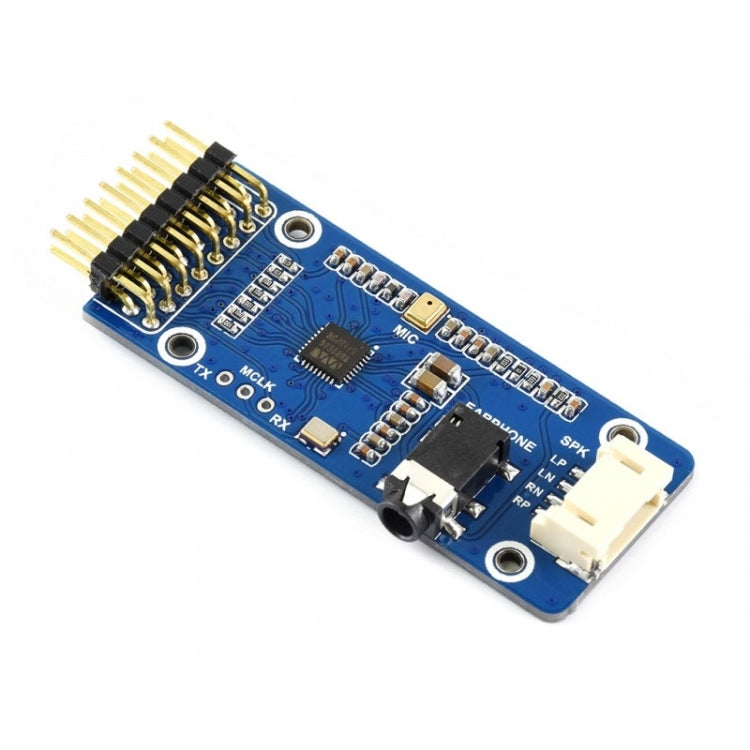

This low power audio module is based on WM8960, supports stereo encoding/decoding, supports sound recording, what's more, it can directly drive speakers to play music.

Features
1. Integrates high-quality MEMS silicon Mic, supports sound recording
2. Onboard standard 3.5mm 4-segment earphone jack, allows sound recording via external earphones with Mic

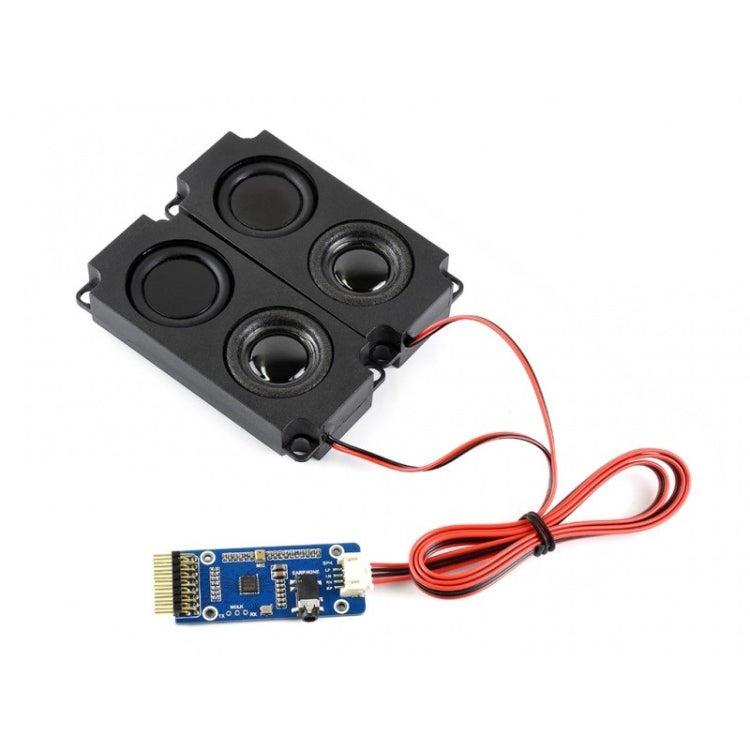

3. Onboard dual-channel speaker interface, directly drives speakers
4. Supports common audio sampling rates such as 8/11.025/22.05/44.1/48KHz, etc.
5. Supports sound effects such as stereo, 3D surrounding, etc.
6. Comes with development resources and manual (STM32 examples for playing, recording)

Specifications
1. CODEC: WM8960
2. Operating voltage: 3.3V
3. Control interface: I2C
4. Audio interface: I2S
5. Audio format: WAV
6. DAC signal-noise ratio: 98dB
7. ADC signal-noise ratio: 94dB
8. Earphone driver: 40mW (16Ω@3.3V)
9. Speaker driver: 1W per channel (8Ω BTL)
